Rancho RS55288 RS5000X Front Shock Silverado/Sierra 2500HD 3500HD Suburban 0in

Vehicle Fitment

• 2001-2010 Chevrolet Silverado 2500 HD (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2007 Chevrolet Silverado 2500 HD Classic (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2001-2006 Chevrolet Silverado 3500 (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2007-2010 Chevrolet Silverado 3500 HD (All Trims, RWD/4WD) - stock height only
• 2007 Chevrolet Silverado 3500 Classic (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2016-2019 Chevrolet Suburban 3500 HD (All Trims, RWD/4WD) - stock height only
• 2001-2010 GMC Sierra 2500 HD (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2007 GMC Sierra 2500 HD Classic (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2001-2006 GMC Sierra 3500 (All Trims, Torsion Bar Front Spring, RWD/4WD) - stock height only
• 2007-2010 GMC Sierra 3500 HD (All Trims, RWD/4WD) - stock height only
• 2003-2009 Hummer H2 (All Trims, 4WD) - stock height only

Fitment Notes

• Front position - Driver and Passenger side (sold individually, 1 shock per package)
• Designed for stock height (0-inch lift) vehicles only
• 2001-2007 Silverado/Sierra 2500HD and 3500 fitment requires torsion bar front spring - does not apply to coil spring configurations
• Chevrolet Suburban 3500 HD fitment applies to 2016-2019 models only
• Excludes vehicles equipped with Autoride or Air Leveling suspension
• 9,200 GVW vehicles only for Silverado/Sierra 2500HD applications
• Factory shock mounting bolts are reused - not included
• All necessary washers, bushings, and nuts are included
• Install rod UP, body DOWN per Rancho installation guidelines

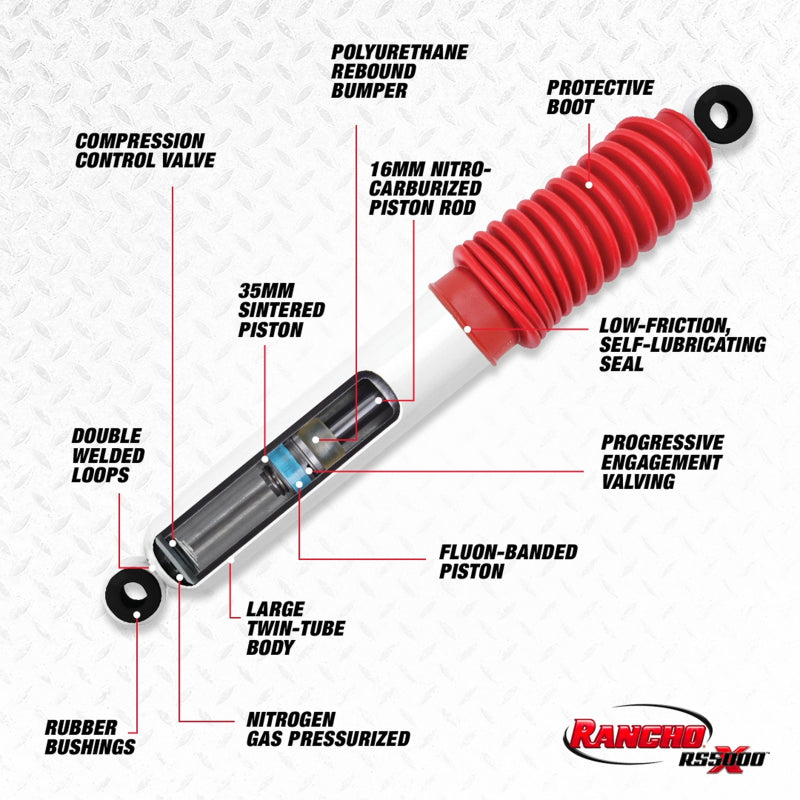

Features

• Cross Tuned technology - patented rebound valving system and advanced compression phase for improved on- and off-road handling
• Progressive Engagement Valving - custom-tuned compression cycle reduces harsh initial impacts at low speeds
• Nitrogen gas pressurized to 150 PSI - minimizes air-to-oil mixing to prevent foaming and damping fade
• 16mm nitro-carburized piston rod for corrosion and scuff resistance
• 35mm sintered iron piston with expanded piston area for heightened shock motion control
• Double-welded loops at high-stress mounting points for structural integrity
• Low-friction self-lubricating seal for consistent rebound and compression performance
• All-weather fluid rated from -40°F to 248°F for reliable operation in extreme conditions

Specifications

• Series: RS5000X
• Type: Twin-tube gas-pressurized shock absorber
• Position: Front (Driver and Passenger side)
• Piston Rod Diameter: 16mm (nitro-carburized)
• Piston Size: 35mm sintered iron
• Body OD: 2.25 inches
• Gas Pressure: 150 PSI nitrogen
• Lift Range: 0 inches (stock height)
• Quantity: 1 shock per package
• Warranty: Limited Lifetime

Included Components

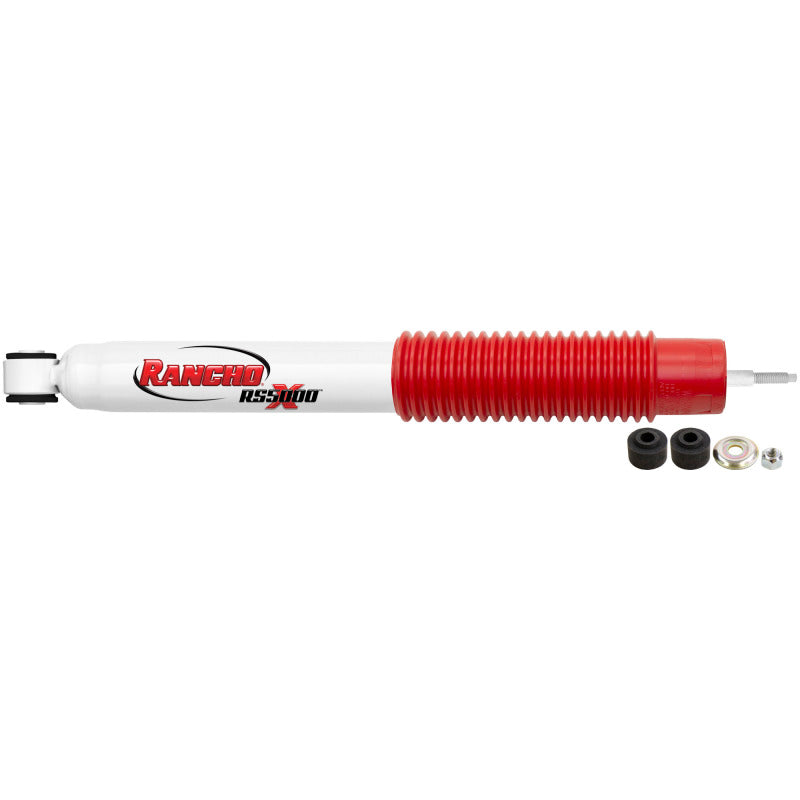

• 1x Rancho RS5000X Front Shock Absorber with Polyvinyl Protective Boot
• 1x Hardware Kit (washers, bushings, nuts)

Product Description

The Rancho RS55288 is an RS5000X series front shock absorber covering a broad range of GM heavy-duty trucks and SUVs, including the Chevrolet Silverado 2500 HD and 3500/3500 HD (2001-2010), GMC Sierra 2500 HD and 3500/3500 HD (2001-2010), Chevrolet Suburban 3500 HD (2016-2019), and Hummer H2 (2003-2009). All fitments are stock height (0-inch lift) applications. Earlier 2001-2007 Silverado and Sierra HD models require a torsion bar front spring configuration. Built around Rancho's Cross Tuned technology, the RS5000X pairs a patented rebound valving system with an advanced compression phase to deliver improved handling and ride quality on both road and off-road surfaces.

Constructed with a 16mm nitro-carburized piston rod, 35mm sintered iron piston, and double-welded mounting loops, the RS55288 is built to handle the demands of heavy-duty GM truck platforms under stock height conditions. Nitrogen gas pressurization at 150 PSI suppresses damping fade and foaming, while all-weather fluid maintains consistent performance from -40°F to 248°F. Note that vehicles with Autoride or Air Leveling suspension are excluded. Sold individually - order in pairs for a complete front axle replacement. Factory mounting bolts are reused; all bushings, washers, and nuts are included.
