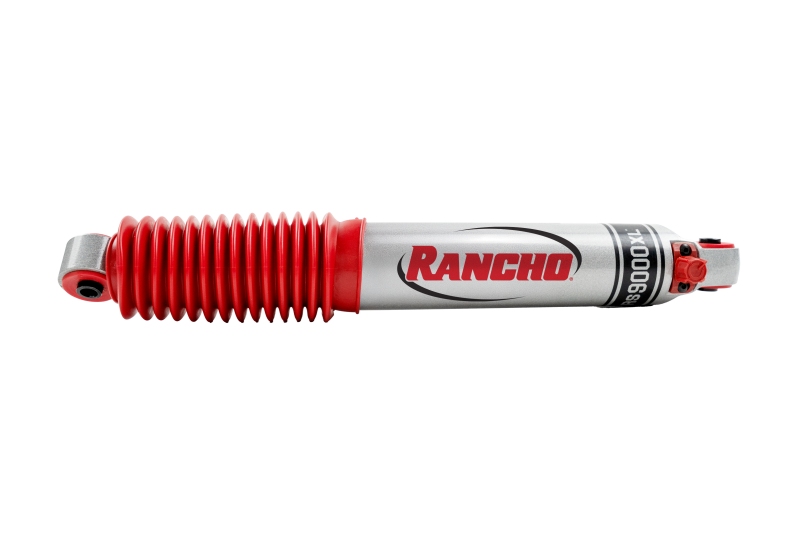

Rancho RS994267 RS9000XL Front Shock 1999-2004 Ford F-250/F-350/F-450/F-550 4WD

Vehicle Fitment

• 1999-2004 Ford F-250 Super Duty (All Trims, 4WD) - Factory Height (0" Lift) - Excludes Chassis Cab
• 1999-2004 Ford F-350 Super Duty (All Trims, 4WD) - Factory Height (0" Lift) - Excludes Chassis Cab
• 1999-2004 Ford F-450 Super Duty (All Trims, 4WD) - Factory Height (0" Lift)
• 1999-2004 Ford F-550 Super Duty (All Trims, 4WD) - Factory Height (0" Lift)
• 2000-2005 Ford Excursion (All Trims, 4WD) - Factory Height (0" Lift)

Fitment Notes

• Does not fit Chassis Cab body style on F-250 Super Duty and F-350 Super Duty
• Designed for factory ride height (0" lift) only - not compatible with lifted applications
• Sold individually - quantity of 2 required for a complete front axle replacement
• Factory shock mounting bolts are reused during installation - no new mounting hardware required

Features

• 9-position manual adjustment knob for instant damping control from very soft to very firm
• Large 2.75-in. (70mm) tri-tube body provides increased fluid capacity for cooler, more consistent operation under heavy load and towing
• Heavy-duty 18mm Nitro-Carburized piston rod resists scuffing and corrosion
• Nitrogen gas pressurized to 120 PSI minimizes air-to-oil mixing and prevents damping fade
• 1.25-in. sintered iron piston with graphite-filled Fluon banding for smooth, responsive travel
• Low-friction, self-lubricating seal retains gas and oil for consistent long-term performance
• Polyurethane bushings and rebound bumper reduce noise, vibration, and harshness

Specifications

• Position: Front
• Extended Length: 22.25 in.
• Collapsed Length: 14.65 in.
• Travel: 7.60 in.
• Upper Mount: L1 (Loop)
• Lower Mount: LS26 (Loop Sleeve)
• Body Diameter: 2.75 in. (70mm) tri-tube
• Piston Rod Diameter: 18mm Nitro-Carburized steel
• Gas Pressure: 120 PSI nitrogen
• Lift Compatibility: Factory height (0") only
• Drivetrain: 4WD
• Warranty: Limited Lifetime

Included Components

• 1x Front RS9000XL Shock Absorber
• 1x Polyvinyl Protective Boot
• 1x Mounting Hardware Kit (washers, polyurethane bushings, nuts)

Product Description

The Rancho RS994267 RS9000XL is a front shock absorber engineered for the 1999-2004 Ford F-250, F-350, F-450, and F-550 Super Duty (4WD, excluding Chassis Cab) and the 2000-2005 Ford Excursion (4WD) at factory ride height. Its 9-position manual adjustment knob gives drivers full control over damping character, allowing them to dial in a soft, comfortable setting for daily driving or a firm, controlled feel for heavy towing and hauling - exactly what these capable trucks demand.

Built around a massive 2.75-inch tri-tube body and an 18mm Nitro-Carburized piston rod, this shock runs cooler under sustained load and resists the fade that plagues lesser units. All factory mounting hardware is reused for a clean bolt-on installation, and the included polyurethane bushings and protective boot deliver long-term durability for trucks that work hard.
