Radium 20-0949 8AN ORB Fuel Rail Toyota 3S-GE 3S-GTE Gen 3-5 MR2 Celica Altezza

Vehicle Fitment

• 1993-1999 Toyota Celica T200 (3S-GE Gen 3, 2.0L NA I4, FWD)
• 1993-1999 Toyota Celica GT-Four ST205 (3S-GTE Gen 3, 2.0L Turbo I4, AWD)
• 1990-1999 Toyota MR2 SW20 (3S-GE Gen 3 / 3S-GTE Gen 3, 2.0L NA/Turbo I4, RWD)
• 1992-2002 Toyota Caldina (3S-GE Gen 3 / Gen 4 Grey Top, 2.0L NA I4, FWD/AWD)
• 1999-2007 Toyota Caldina GT-T ST215 / GT-Four ST246 (3S-GTE Gen 4/5, 2.0L Turbo I4, AWD)
• 1994-2000 Toyota RAV4 XA10 (3S-GE Gen 4 Grey Top, 2.0L NA I4, FWD/AWD)
• 1998-2005 Toyota Altezza SXE10 (3S-GE Gen 5 Black Top BEAMS, 2.0L NA I4, RWD)

Fitment Notes

• Compatible with 3S-GE Gen 3, Gen 4 (Grey Top BEAMS), and Gen 5 (Black Top BEAMS) only - does NOT fit Gen 1 or Gen 2 engines
• Compatible with 3S-GTE Gen 3, Gen 4, and Gen 5 only - does NOT fit Gen 1 or Gen 2 3S-GTE engines
• Multiple mounting feet are included to accommodate different engine variation mounting configurations
• Adapter fittings are NOT included and must be purchased separately - end ports are 8AN ORB (3/4"-16)
• Compatible with OEM injectors or aftermarket injectors with the same fitment dimensions as OEM
• Not compatible with direct-injected engine variants

Features

• CNC machined from solid aluminum, black anodized and laser etched for a high-quality surface finish
• 8AN ORB end ports provide flexible plumbing options for aftermarket fuel system builds
• Multiple mounting feet included for installation on different Gen 3-5 engine variations without modification
• Compatible with all fuel types including E85 and other alcohol-blend fuels
• Compatible with OEM injectors or OEM-equivalent aftermarket injectors
• Made in the USA by Radium Engineering to motorsport-grade standards

Specifications

• Port Size: 8AN ORB (3/4"-16) - both end ports
• Body Material: CNC machined solid aluminum, black anodized, laser etched
• Engine Compatibility: Toyota 3S-GE Gen 3/4/5 and 3S-GTE Gen 3/4/5
• Fuel Compatibility: Gasoline, E85, ethanol, methanol, and alcohol-blend fuels
• Adapter Fittings: Not included - sold separately

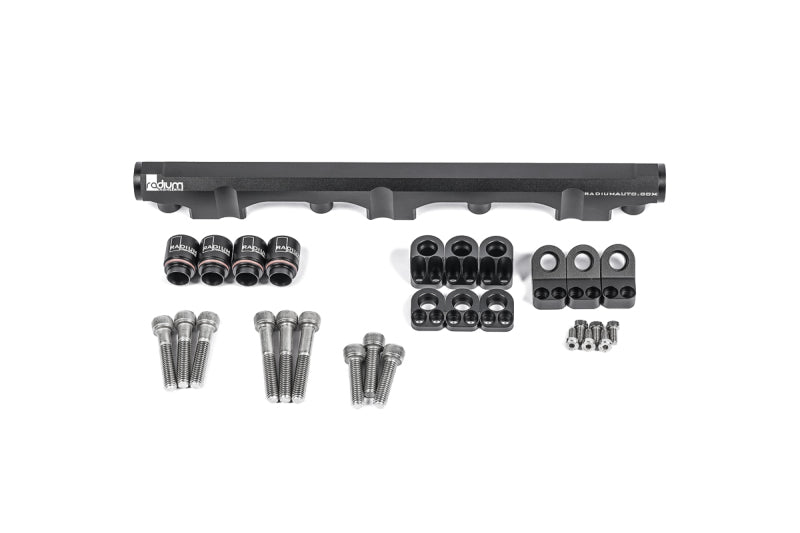

Included Components

• 1x Black anodized laser-etched aluminum fuel rail
• 1x Set of multiple mounting feet for various Gen 3-5 engine variations

Product Description

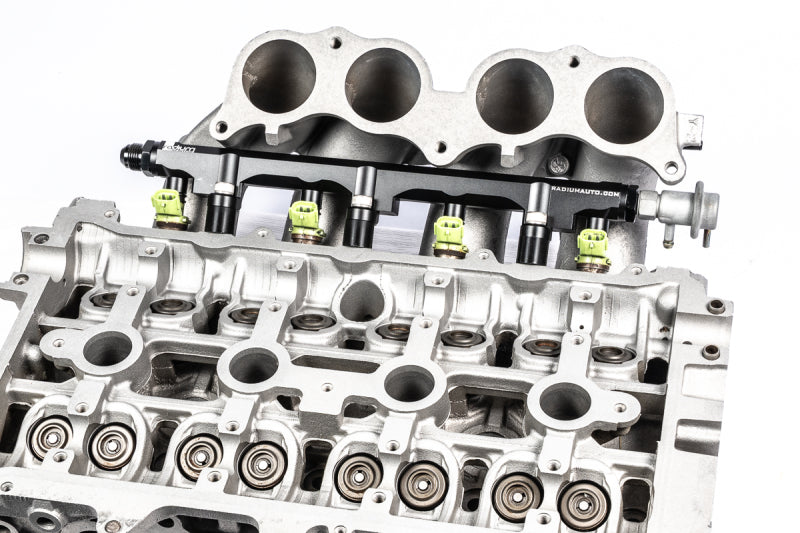

The Radium Engineering 20-0949 is a high-flow CNC machined fuel rail designed for the Toyota 3S-GE (Gen 3, 4, and 5) and 3S-GTE (Gen 3, 4, and 5) engines, covering applications including the MR2 SW20, Celica T200/ST205, Altezza SXE10, RAV4 XA10, and Caldina GT variants. Multiple mounting feet are included to accommodate the different mounting configurations found across Gen 3-5 engine variations, making it a versatile drop-in solution across a wide range of builds. Both end ports are threaded for 8AN ORB fittings, enabling connection to custom high-flow fuel lines and accessories.

Compatible with OEM or OEM-equivalent injectors, and safe for all fuel types including E85 and methanol blends, this rail suits both naturally aspirated builds and turbocharged applications. Adapter fittings must be sourced separately. Note this rail does not fit Gen 1 or Gen 2 variants of either the 3S-GE or 3S-GTE.
