Radium 20-1104-V Remote Mount Vented Female Dry Break Fuel Filler 1.5in 24AN

Vehicle Fitment

• Universal - No vehicle-specific fitment. Designed for remote mounting on any competition or custom-built vehicle using a Radium Engineering FCST, FCST-X, or compatible fuel cell/tank requiring a remote dry break quick-fill filler.

Fitment Notes

• Requires a 77mm (3.03") hole to be fabricated in the mounting surface (e.g., fender, body panel).
• Mates with Radium 20-0996 or 20-0496 1.5in male dry break probe (dump can side) - dry break probe not included.
• The 75-degree 24AN elbow outlet can be rotated to point in any direction for flexible hose routing. The elbow can also be removed to attach a 24AN filler hose directly.
• Compatible with all fuel types including gasoline, diesel, AV gas, ethanol, methanol, E15, and E85.
• Does not include accessories to connect to the fuel cell or tank.

Features

• 1.5in vented female dry break receiver enables quick, spill-free refueling when used with a compatible dry break dump can probe.
• Vented fuel cap with roll-over protection prevents fuel spillage if the vehicle is ever inverted.
• 75-degree 24AN elbow rotates to point in any direction, offering maximum flexibility in hose routing to the fuel cell or FCST fill neck.
• FKM-sealed o-ring connections throughout ensure compatibility with all fuel types and leak-free performance.
• Flange outer diameter of 4.75in with 4.25in PCD five-bolt mounting pattern for a secure, low-profile body panel installation.
• Anodized aluminum construction throughout for lightweight, corrosion-resistant durability.

Specifications

• Filler Style: Vented Female Dry Break, 1.5in
• Filler Hose Requirement: 1.5in (38mm) ID
• Hose End Connection: 24AN
• Hose End Angle: 75 degrees (rotatable)
• Flange Outer Diameter: 4.75in
• Bolt Circle Diameter: 4.25in PCD (5x M5 bolts)
• Mounting Hole Required: 77mm (3.03in)
• Dry Break Mate: Radium 20-0996 or 20-0496 (1.5in Male Dry Break Probe)
• Seal Material: FKM O-ring

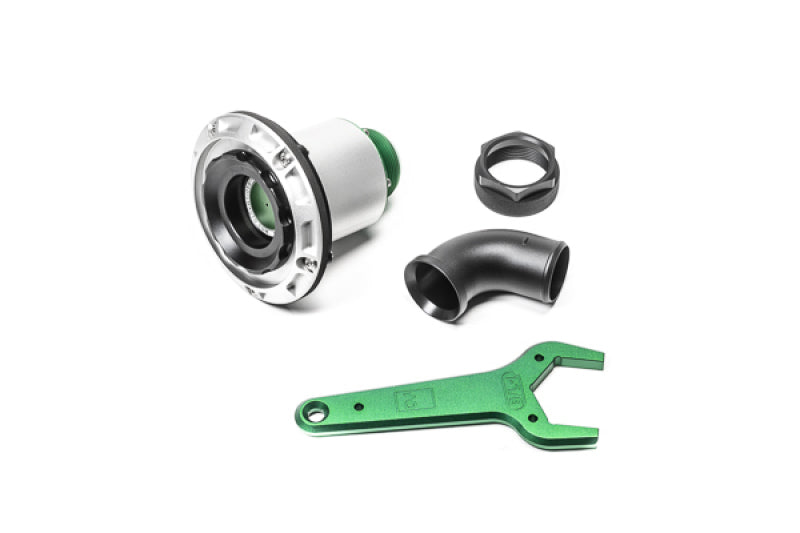

Included Components

• 1x 1.5in vented female dry break receptacle cap
• 1x Flanged fill neck for 24AN connection
• 1x 24AN B-nut
• 1x 24AN 75-degree elbow
• 1x Anodized aluminum 24AN (1-7/8") wrench
• 1x Ozone/flame-resistant gasket
• 1x Anodized aluminum nut ring
• Stainless steel M5 bolts

Product Description

The Radium Engineering 20-1104-V is a vented remote mount fuel filler featuring a 1.5in female dry break receiver, designed for motorsport applications where fast, spill-free refueling is essential. When mated with a compatible 1.5in male dry break probe on a dump can, both valve seals open and close simultaneously - allowing fuel to flow with no spillage and no manual cap removal. The vented fuel cap provides roll-over protection in the event of an accident, preventing fuel escape if the vehicle becomes inverted.

The included 75-degree 24AN elbow connects the filler housing to 1.5in filler hose and can be clocked in any direction for optimized routing to the fuel cell or FCST fill neck. A dedicated aluminum 1-7/8" wrench is included for proper B-nut installation. The housing mounts via five M5 bolts through a 77mm fabricated hole in any body panel. Compatible with all fuel types, the 20-1104-V is a complete solution for teams running Radium dry break quick-fill systems.
