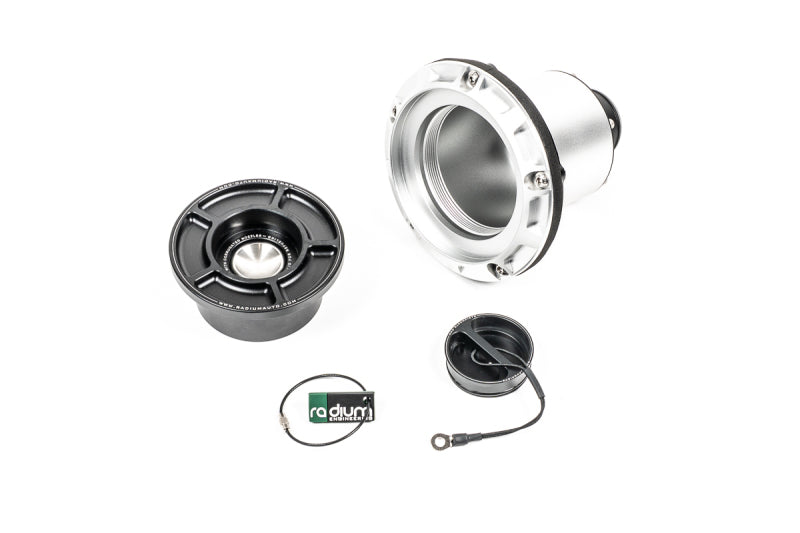

Radium 20-1003 Capless Remote Mount Swing Valve Fuel Filler for 1.5in. Hose

Vehicle Fitment

• Universal - for remote-mount fuel filler installations on any vehicle, race car, or fuel cell application

Fitment Notes

• This is the remote filler housing only - it does not include the accessories needed to connect to the fuel tank (fill neck at the tank/cell end and filler hose are sold separately)
• Requires a 77mm (3.03 in.) hole to be fabricated in the mounting surface
• Uses the same cap threads as Radium's dry break and standard fill cap options - all three cap styles are interchangeable on this housing
• Can be upgraded later to a dry break filler using Radium part 20-0549-V
• The 1.5 in. barbed outlet is interchangeable with other outlet sizes/styles (adapter sold separately) by removing 6 screws

Features

• Capless swing-valve design mimics modern OEM fillers - the cap swings open when a filler nozzle is inserted, nothing to unscrew
• Swing valve seals with an FKM O-ring for a reliable, fuel-safe seal
• 30mm opening accommodates both gasoline and diesel fill nozzles
• Press-fit dust cap with tether keeps debris out of the filler when not in use
• Machined hose barb connection for 1.5 in. filler hose
• Compatible with all fuel types, including gasoline, diesel, AV gas, methanol, ethanol, E15, and E85
• Designed for remote mounting to an external surface such as a fender or body panel

Specifications

• Filler Type: Swing Valve (Capless)
• Filler Hose Requirement: 1.5 in.
• Flange Outer Diameter: 4.75 in.
• Bolt Circle Diameter: 4.25 in. PCD (5x M5 bolts)
• Total Height: 4.1 in.
• Mounting Hole Required: 77mm (3.03 in.)
• Opening Diameter: 30mm
• Seal: FKM O-Ring

Included Components

• 1x Swing Valve Cap
• 1x Flanged Fill Neck for 1.5in. ID Hose
• 1x Ozone/Flame Resistant Gasket
• 1x Anodized Aluminum Nut Ring
• Stainless Steel M5 Bolts
• Tether Components

Product Description

The Radium 20-1003 is a remote-mount swing valve fuel filler designed to give a vehicle a clean, capless refueling point mounted away from the fuel tank - typically on a fender or body panel. Instead of a traditional screw-off cap, the swing valve opens automatically when a filler nozzle is inserted, closely mimicking the capless fillers found on modern OEM vehicles.

The housing uses an FKM O-ring to seal the swing valve, and a 30mm opening is sized to accept both gasoline and diesel nozzles. A press-fit dust cap with a tether keeps dirt and debris out of the filler when it's not in use. On the tank side, the fill neck has a machined 1.5-inch hose barb connection, and the whole unit mounts through a 77mm hole using its 4.75-inch flange and five M5 bolts.

This filler is part of Radium's modular remote-mount system - it shares cap threads with Radium's dry break and standard vented fillers, so it can be swapped between cap styles later (including upgrading to a dry break using part 20-0549-V) without replacing the whole housing. Keep in mind this listing covers the remote filler only; you'll still need a matching fill neck at the tank or fuel cell and a length of 1.5-inch filler hose to complete the installation.
