Radium 20-1334-03 Stainless Fuel Hanger Plumbing Kit for Mitsubishi EVO 1-6

Vehicle Fitment

• Mitsubishi Lancer Evolution I
• Mitsubishi Lancer Evolution II
• Mitsubishi Lancer Evolution III
• Mitsubishi Lancer Evolution IV
• Mitsubishi Lancer Evolution V
• Mitsubishi Lancer Evolution VI

Fitment Notes

• Requires a Fuel Hanger Connection Kit (Radium 20-1331 for Evo I-V, or 20-1332 for Evo VI), sold separately
• Also requires a Radium fuel pump hanger for Evo 1-6 (20-1330) and an aftermarket fuel rail - neither is included in this kit
• Fuel injectors are not included
• Uses a 10-micron stainless steel filter element (the -05 version of this kit uses a 6-micron microglass element instead)

Features

• Provides all remaining fuel system connections between the fuel hanger connection kit and an aftermarket fuel rail, excluding only the rail and injectors
• Long and short 8AN PTFE fuel feed hoses route fuel from the rear of the vehicle through the engine bay to the fuel rail inlet
• High-flow fuel filter mounts in the OEM location using an anodized filter mount and clamps
• Direct Mount Regulator (DMR) and 0-100 psi fuel pressure gauge mount directly to the fuel rail outlet
• 6AN EFI return hose routes fuel pressure regulator output back to the fuel hanger connection kit's return line
• Billet fuel/brake line retainers secure all lines along their routing
• Aluminum and stainless steel construction throughout
• Compatible with gasoline, methanol, and E85

Specifications

• Filter Element: 10 Micron, Stainless Steel
• Regulator: Direct Mount Regulator (DMR)
• Gauge: 0-100 psi Fuel Pressure Gauge
• Fuel Line: 8AN PTFE (feed, long and short), 6AN EFI (return)
• Fuel Compatibility: Gasoline, Methanol, E85

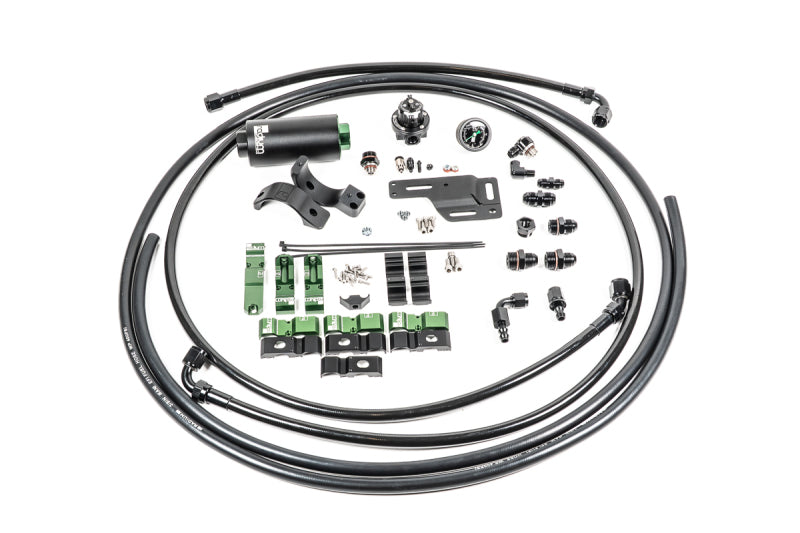

Included Components

• 1x Direct Mount Regulator
• 1x 0-100psi Fuel Pressure Gauge
• 1x 10 Micron Stainless Fuel Filter
• 1x Anodized Filter Mount and Clamps
• 1x 8AN PTFE Fuel Feed Hose, Long
• 1x 8AN PTFE Fuel Feed Hose, Short
• 1x 6AN EFI Fuel Return Hose
• Stainless Steel Hardware
• Misc. Adapter Fittings

Product Description

The Radium 20-1334-03 is a fuel hanger plumbing kit built to complete the fuel system on a Mitsubishi Lancer Evolution I through VI, carrying fuel the rest of the way from Radium's fuel hanger connection kit at the tank to an aftermarket fuel rail in the engine bay. Long and short 8AN PTFE hoses route the feed line forward through a high-flow fuel filter - using a 10-micron stainless element in this version - mounted in the OEM location.

At the fuel rail, a Direct Mount Regulator (DMR) and 0-100 psi gauge mount right to the rail outlet, giving you fuel pressure adjustment and monitoring in one compact assembly. From there, a 6AN EFI hose carries the regulator's return flow back to the connection kit's return line, and billet aluminum retainers keep everything secured along the way.

This kit picks up where Radium's fuel hanger connection kit leaves off, so it must be paired with either the 20-1331 (Evo I-V) or 20-1332 (Evo VI) connection kit, along with a Radium fuel pump hanger and an aftermarket fuel rail and injectors - none of which are included here. It's rated for gasoline, methanol, and E85.
