Radium 20-0977-FL Fluid Lock PCV Catch Can Kit 1992-2002 Mazda RX-7 FD3S RHD

Vehicle Fitment

• 1992-2002 Mazda RX-7 FD3S (13B-REW Twin-Turbo Rotary, RWD - all years, RHD and LHD)

Fitment Notes

• Compatible with all FD3S model years and configurations - both RHD and LHD

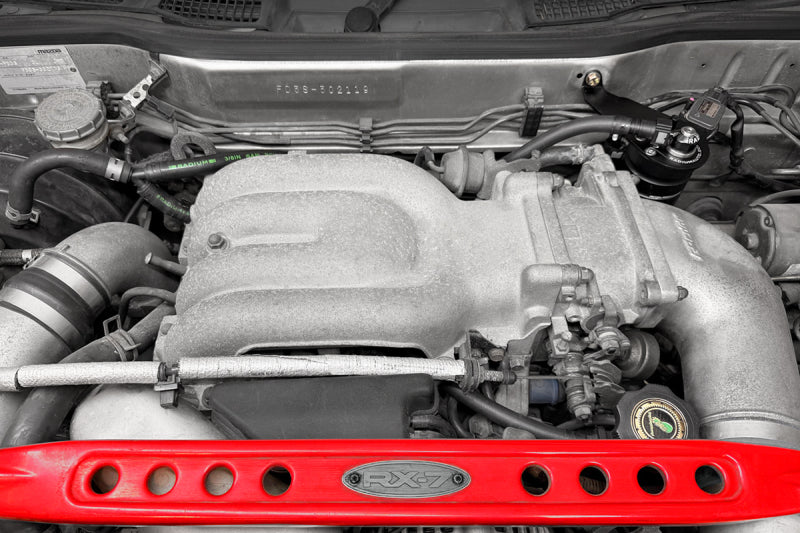

• Mounts to the firewall using included hardware - no drilling or permanent modifications required
• Plumbs into the brake booster intake manifold port, making it compatible with all FD3S variants including early and late production
• Maintains OEM closed-loop PCV system operation via a new catch can-mounted PCV valve
• Pressure-sealed design is safe for boosted applications - intake manifold connection is permitted without a check valve

Features

• Patented Fluid Lock® mechanism prevents the reservoir from overfilling and traps collected oil until manually drained
• Draws oil and water condensation from PCV gases before they enter the intake manifold, intercooler, and throttle body
• Closed-loop design maintains crankcase negative pressure for optimal engine performance
• Large 10AN ORB inlet and outlet ports for maximum flow capacity
• 2-step oil separation baffling for superior oil and moisture collection
• O-ring sealed Fluid Lock catch can - safe for pressurized/boosted applications

Specifications

• Catch Can Type: PCV (Positive Crankcase Ventilation)
• Catch Can Capacity: 7 fluid ounces
• Inlet/Outlet Ports: 10AN ORB (7/8"-14)
• Drain Port: 4AN ORB (plugged)
• Body Material: 6061 billet aluminum, anodized
• Fluid Lock®: Yes (patented overfill protection)
• Mounting Location: Firewall
• System Type: Closed-loop (VTE - vent to engine)

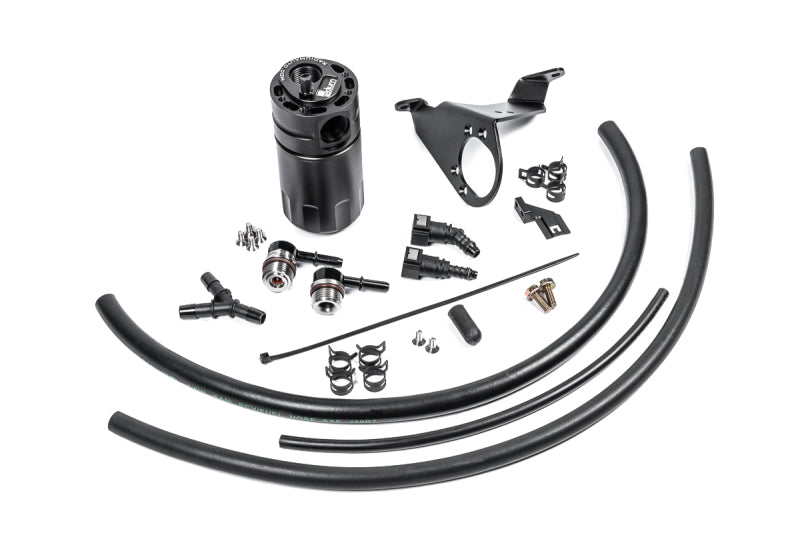

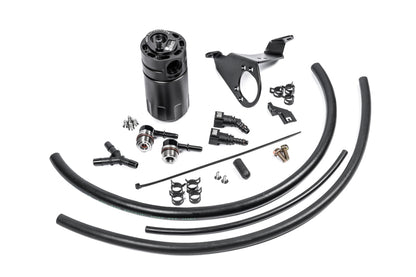

Included Components

• 1x Fluid Lock® catch can (7 fl oz)
• 1x Anodized aluminum mount bracket
• 1x Anodized aluminum MAP sensor mount
• 1x Low-profile swiveling banjo PCV valve fitting
• 1x Low-profile swiveling banjo SAE quick connect fitting
• 1x Set of SAE quick connector hose ends
• 1x Length of 5/16" PCV hose
• 1x Length of 3/8" PCV hose
• 1x Length of 5/32" vacuum hose
• 1x Set of spring clamps
• 1x Set of stainless steel mounting hardware

Product Description

The Radium Engineering 20-0977-FL is a dedicated PCV catch can kit for the 1992-2002 Mazda RX-7 FD3S, compatible with all model years in both RHD and LHD configurations. It mounts cleanly to the firewall and routes through the brake booster intake manifold port, maintaining the factory closed-loop PCV system while capturing oil vapor, water condensation, and other contaminants before they reach the intake manifold, intercooler walls, and throttle body.

The kit features Radium's patented Fluid Lock® technology, which prevents the 7 fl oz catch can reservoir from overfilling and eliminates the risk of oil dumping into the intake if the can is not serviced promptly. The pressure-sealed, O-ring design makes it fully compatible with the FD3S twin-turbo setup - no additional check valve required when connected to the intake manifold. Everything needed for a complete bolt-in installation is included with no cutting or drilling required.
