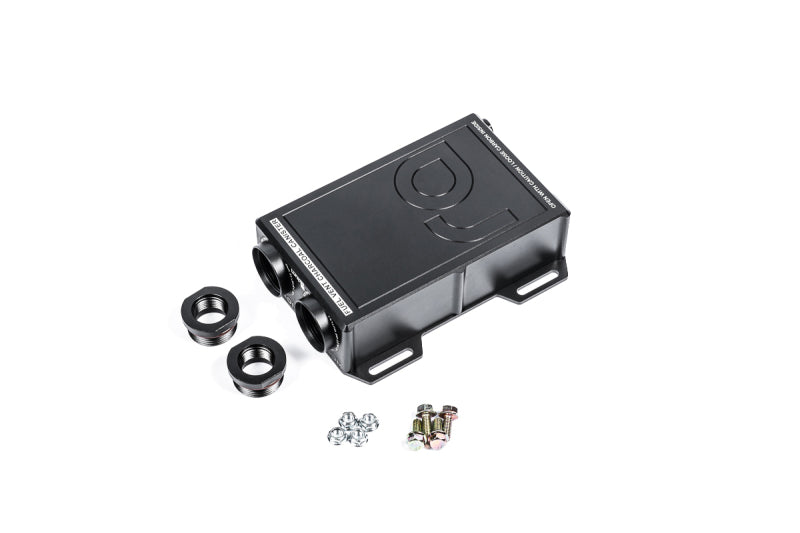

Radium 20-1828-00 Universal Fuel Vent Charcoal Canister for Vented Fuel Systems

Vehicle Fitment

• Universal - compatible with any EFI or carbureted vented fuel system, including competition fuel cells

Fitment Notes

• Designed to be used in conjunction with Radium Engineering Fuel Cell Vent Kits
• Includes two 16AN ORB male to 10AN ORB female adapter couplers for connecting smaller vent line fittings
• A section of vent hose upstream of the canister must be positioned higher than the fuel filler
• Recommended mounting location is at the rear of the vehicle, away from the exhaust system
• Always terminate the fuel vent line outside the vehicle
• Replacement charcoal service kit (20-1828-SK) is available separately for periodic recharging

Features

• Traps unwanted fuel vapors from the fuel tank or fuel cell vent line, reducing fuel smell when the vehicle is stored in an enclosed space
• Activated carbon filtration effectively purifies fuel vapor odors without meaningfully restricting airflow
• Tested to lower gas content at the outlet to less than 50 ppm
• Standard size holds 5x more activated carbon than Radium's compact version, requiring less frequent servicing
• Can be installed and used in any orientation
• Suitable for both EFI and carbureted fuel systems
• Negligible pressure drop through the canister, verified using a Radium dry break dump can during flow testing

Specifications

• Size: Standard (higher carbon capacity vs. compact version)
• Port Size: 16AN ORB Female
• Included Adapters: 2x 16AN ORB Male to 10AN ORB Female
• Filtration Media: Activated Carbon
• Tested Outlet Emission: Less than 50 ppm
• Mounting Orientation: Any

Included Components

• 1x Fuel Vent Charcoal Canister
• 2x 16AN ORB to 10AN ORB Adapter Coupler

Product Description

The Radium 20-1828-00 is a universal fuel vent charcoal canister designed to trap unwanted fuel vapors escaping from a vented fuel tank or competition fuel cell. Installed in-line with the vent hose, it uses activated carbon to purify fuel odors before they reach open air - useful for eliminating the fuel smell that builds up when a car is stored in an enclosed garage or trailer.

Independent flow testing using a Radium dry break dump can showed a negligible pressure drop with the canister installed, so it does the job without restricting venting performance. It's rated to bring outlet gas content down to less than 50 ppm, and as the standard-size version, it holds five times more activated carbon than Radium's compact canister - meaning longer service intervals between recharges. Large 16AN ORB ports are included with two adapters down to 10AN ORB, giving you flexibility to match your existing vent line hardware, and the canister can be mounted in any orientation.

This canister is meant to pair with a Radium Fuel Cell Vent Kit as part of a complete vent system, and works with both EFI and carbureted setups. As with any fuel vent installation, the line must always terminate outside the vehicle, and a section of hose upstream of the canister should sit higher than the fuel filler to prevent fuel from reaching the carbon media.
