Radium Engineering 20-0012-PK Fuel Rail Plumbing Kit Toyota 2ZZ-GE 1ZZ-FE Lotus

Vehicle Fitment

• All vehicles equipped with the Toyota 2ZZ-GE or 1ZZ-FE engine, including:
• 2000-2005 Toyota Celica GT / GTS
• 2000-2005 Toyota MR2 Spyder
• 1998-2008 Toyota Corolla (1ZZ-FE / 2ZZ-GE equipped variants)
• 2003-2008 Toyota Matrix (1ZZ-FE / 2ZZ-GE equipped variants)
• 2004-2011 Lotus Elise (2ZZ-GE and 1ZZ-FE)
• 2006-2011 Lotus Exige (2ZZ-GE, including supercharged variants)

Fitment Notes

• Companion plumbing kit to Radium fuel rail 20-0012-01 (rail sold separately) - allows easy hookup to the OEM factory fuel piping
• 20-0012-PK + 20-0012-01 = 20-0012-00 (complete fuel rail kit) - no additional parts required when both are purchased together
• Compatible with E85 and all standard fuel types - all included PTFE hose and fittings are fuel-type agnostic
• On Lotus Exige-S / 2-Eleven models, minor grinding of the intercooler mounting boss may be required for clearance - this is a rail (20-0012-01) characteristic, not a plumbing kit limitation
• Verify OEM fuel piping configuration before ordering; not all Corolla/Matrix model year and drivetrain variants share the same fuel line routing

Features

• Includes all fittings and PTFE hose required to connect the Radium 20-0012-01 fuel rail to the factory fuel feed line - no additional parts needed
• PTFE hose is non-permeable, fuel vapor resistant, and compatible with E85 and all standard fuel types
• Anodized aluminum fittings resist corrosion and seal reliably with O-ring boss (ORB) connections - no tapered pipe threads to strip or leak
• Designed specifically around the OEM fuel piping interface on 2ZZ-GE and 1ZZ-FE equipped vehicles for a true plug-and-play installation
• Part of the Radium 20-0012 product family - can be purchased individually or as the complete 20-0012-00 kit

Specifications

• Compatible Fuel Rail: Radium Engineering 20-0012-01 (sold separately)
• Fuel Compatibility: Gasoline, E85, and all standard fuel types
• Hose Type: PTFE (non-permeable, fuel vapor resistant)
• Fitting Type: Anodized aluminum AN ORB (O-ring boss)
• Construction: Anodized aluminum fittings, PTFE hose with anodized hose ends
• Country of Origin: USA

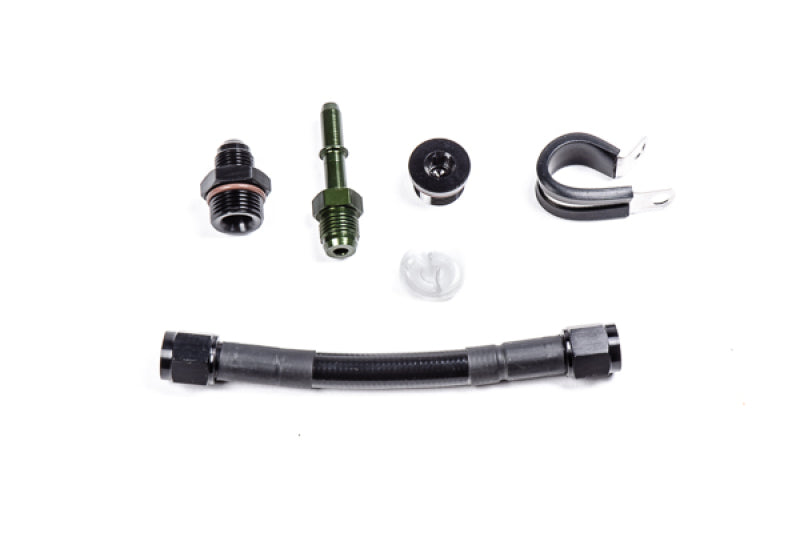

Included Components

• PTFE fuel feed hose with AN hose ends (pre-assembled)
• AN ORB adapter fittings for OEM fuel piping hookup
• All necessary hardware for complete installation with the 20-0012-01 fuel rail

Product Description

The Radium Engineering 20-0012-PK is the dedicated plumbing kit for the Radium 20-0012-01 billet fuel rail, designed for all Toyota 2ZZ-GE and 1ZZ-FE equipped vehicles including the Toyota Celica, MR2 Spyder, Corolla, Matrix, and Lotus Elise/Exige. It includes all fittings and PTFE hose required to connect the aftermarket fuel rail to the factory fuel feed piping, making the installation a true bolt-on with no additional sourcing required. PTFE hose is non-permeable and E85 compatible, and all AN ORB fittings use positive O-ring seals rather than tapered pipe threads to ensure long-term leak-free performance.

This kit is sold individually for builders who already own the 20-0012-01 fuel rail or are sourcing the two components separately. When purchased together, the 20-0012-01 rail and 20-0012-PK plumbing kit form the complete 20-0012-00 kit - everything needed for a full OEM fuel rail replacement with no other parts required. The OEM fuel pulse damper must be transferred from the factory rail to the center port of the 20-0012-01 rail (damper not included).
