Radium Engineering 20-0966-05 Fuel Hanger Plumbing Kit w/Microglass Filter

Vehicle Fitment

• 2012-2016 Scion FR-S (FWD, FA-series 2.0 L flat-4)
• 2013-2022 Subaru BRZ (ZN6/ZC6 chassis, FA-series 2.0 L flat-4)
• 2017-2024 Toyota GT86 / GR86 (ZN6/ZN8 chassis, FA-series 2.0 L flat-4)

Features

• Integrated microglass inline filter with 6-micron stainless housing and check valve
• Radium RA-Series adjustable fuel pressure regulator with 360° swiveling vacuum port
• Pre-assembled 8 AN PTFE-lined stainless braided feed hose
• 6 AN PTFE return hose with PushLok fittings for regulator loop-back
• Aluminum chassis-mount bracket and billet hose retainers - no drilling required
• Supports single or dual pump configurations
• Tool-less regulator adjustment with incremental detents (±0.5 psi per click)
• Compatible with gasoline, E85, methanol fuel types

Specifications

• Filter Element: 6-micron microglass with built-in check valve
• Regulator: RA-Series adjustable pressure regulator
• Feed Line: 8 AN PTFE-lined stainless braided hose
• Return Line: 6 AN PTFE rubber hose with PushLok ends
• Fittings: Black-anodized billet aluminum AN
• Mounting: Bolt-on chassis bracket included
• Fuel Compatibility: Gasoline, E85, methanol
• Fuel System: Converts OEM returnless to full return-style
• Year Range: 2012-2024 (as applicable per model) :contentReference[oaicite:13]{index=13}

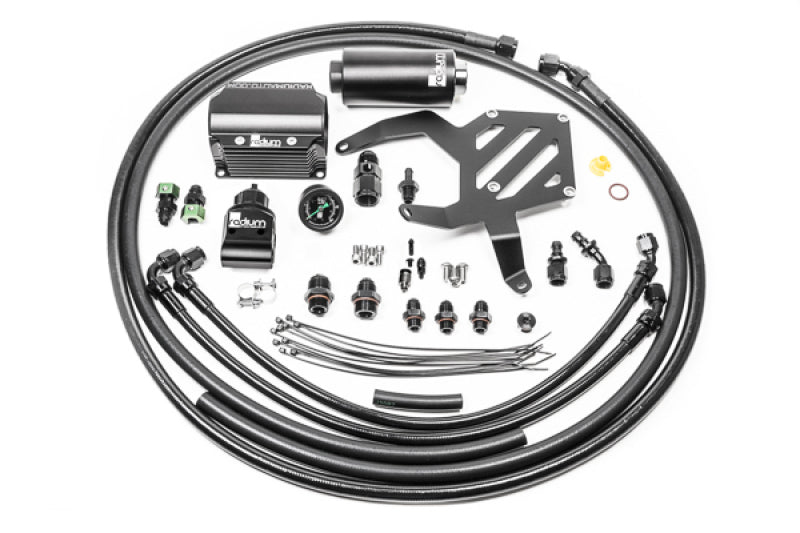

Included Components

• 1x Microglass fuel filter housing with check valve
• 1x Microglass filter element (6 µm)
• 1x RA-Series adjustable fuel pressure regulator
• 1x Fuel pressure gauge
• 1x Heat exchanger style filter mount
• Aluminum filter bracket and mounting hardware
• 1x 8 AN PTFE feed hose (pre-assembled)
• 1x 6 AN PTFE return hose with PushLok ends
• Billet aluminum hose retainers
• Installation instructions

Product Description

The Radium Engineering 20-0966-05 Fuel Hanger Plumbing Kit is a complete return-style fuel delivery assembly tailored for the Subaru BRZ, Scion FR-S, and Toyota GT86/GR86 models. It must be used with the corresponding Radium in-tank fuel hanger (not included). This microglass filter version provides high-performance filtration downstream of the pump, essential for modern fuel system reliability.

Featuring an integrated check-valve filter, RA-Series pressure regulator with tool-less adjustment, and pre-assembled PTFE hoses, this kit ensures clean, high-pressure fuel delivery. The regulator's 360° swivel vacuum fitting and detent-based adjustment make tuning simple. Solid mounting hardware and retainers keep the system secure without modifications.

Designed for use with gasoline, ethanol (E85), or methanol, and compatible with single or dual pump setups, this kit delivers maximum fueling reliability for high-performance FA-series engine applications. Intended for Subaru and Toyota RWD/FWD configurations depending on platform.
