Radium 20-1771 XL Competition Catch Can VTA/VTE Universal Oil Separator

Vehicle Fitment

• Universal Fit - Compatible with custom crankcase ventilation systems using 10AN ORB plumbing.

Fitment Notes

• Designed for custom high-performance and racing crankcase ventilation systems.

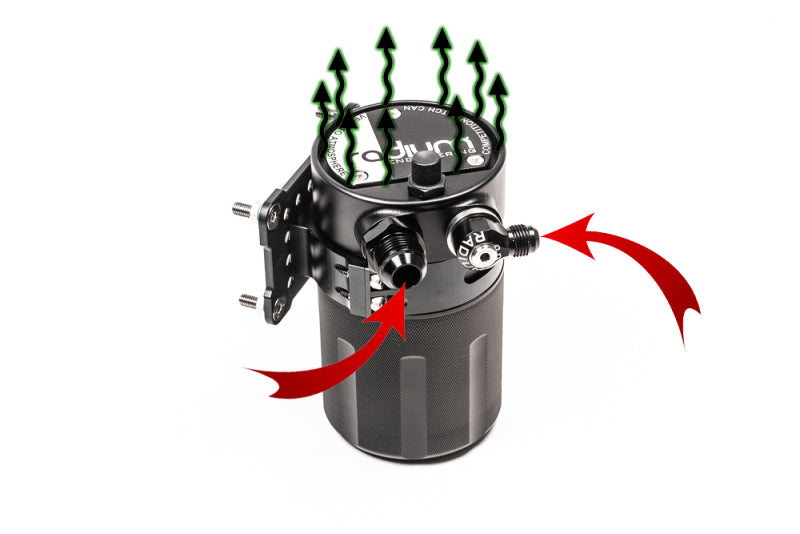

• Can be configured as Vent-to-Atmosphere (VTA) or Vent-to-Engine (VTE).
• Compatible with engines using 10AN ORB catch can plumbing.
• Sold without adapter fittings; compatible 10AN ORB fittings are required.
• Not designed for use with aftermarket crankcase vacuum pumps.

Features

• Extra-large 1-quart (0.9L) capacity for extended service intervals.
• Configurable for Vent-to-Atmosphere (VTA) or Vent-to-Engine (VTE) operation.
• CNC-machined billet aluminum construction.
• Dual-stage internal condensing media improves oil separation efficiency.
• Large unrestricted outlet minimizes crankcase pressure.
• Fully serviceable design with removable lower body for easy draining.

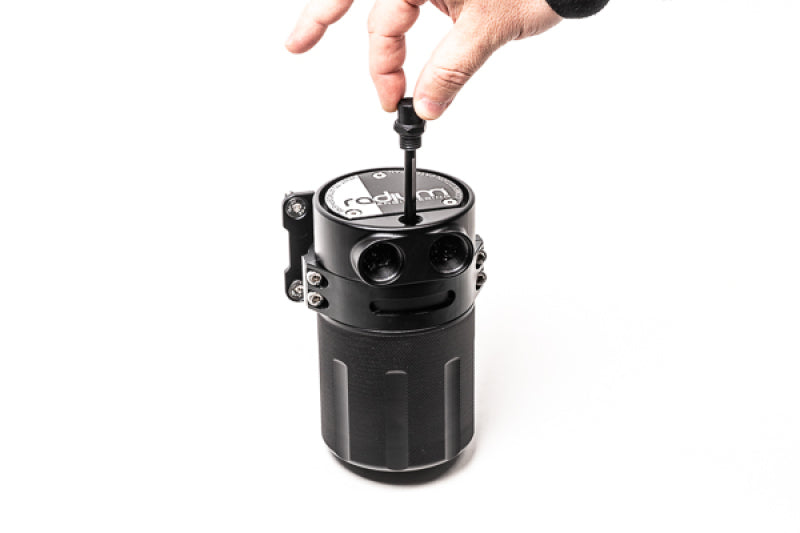

• Integrated dipstick allows quick oil level inspection.
• Integrated 4AN ORB drain port supports optional drain valve installation.

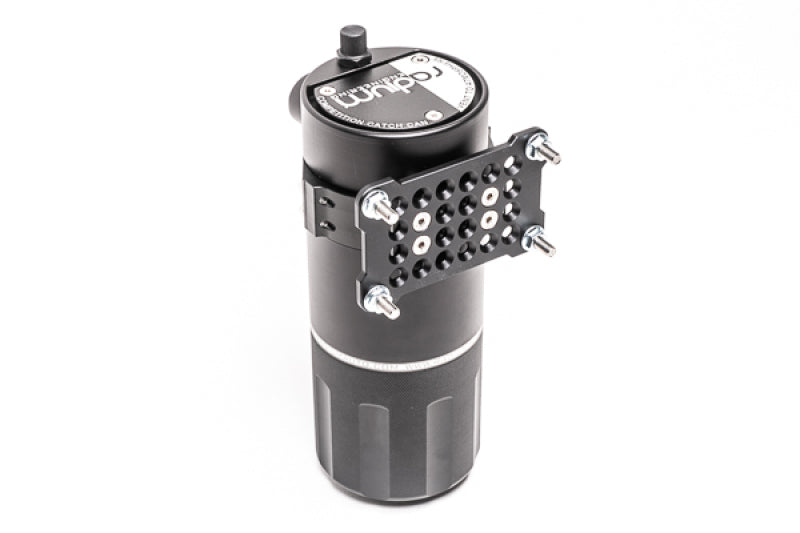

• Universal mounting bracket provides 360-degree installation flexibility.

Specifications

• Manufacturer: Radium Engineering
• Part Number: 20-1771
• Product Type: Competition Catch Can XL
• Application: Universal
• Configuration: Vent-to-Atmosphere (VTA) / Vent-to-Engine (VTE)
• Capacity: 1 qt (0.9L / 32 fl oz)
• Height: 9.0 in (229mm)
• Outer Diameter: 3.45 in
• Weight: 2.2 lb (with hardware)
• Inlet Threads: 10AN ORB (7/8"-14)
• Drain Thread: 4AN ORB (7/16"-20)
• Material: CNC-machined billet aluminum

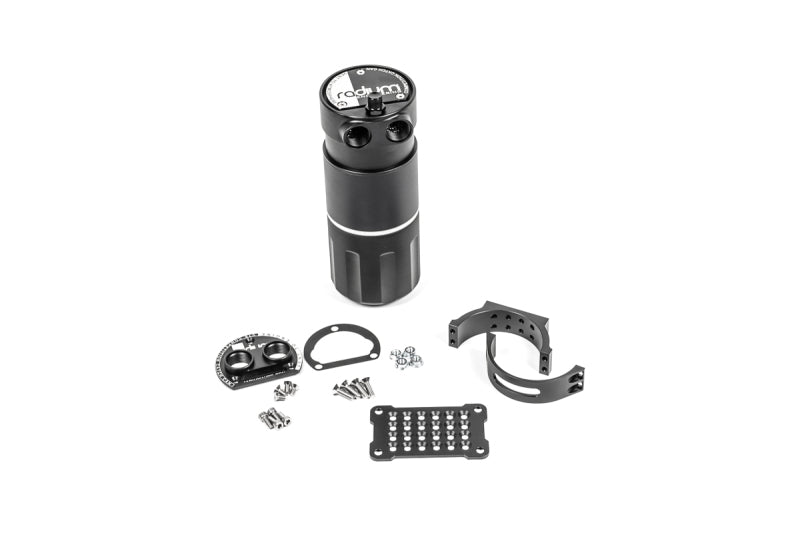

Included Components

• 1x Competition Catch Can XL
• 1x VTE conversion top plate/adapter
• 1x Anodized aluminum mounting bracket
• 1x Stainless steel mounting hardware kit

Product Description

The Radium Engineering 20-1771 Competition Catch Can XL is a high-capacity oil separator engineered for demanding motorsport and high-horsepower applications. Its 1-quart capacity satisfies the minimum catch can volume requirements of many racing organizations while effectively separating oil and contaminants from crankcase vapors before they can enter the intake system.

Constructed from CNC-machined billet aluminum, the catch can features dual-stage internal condensing media, dual 10AN ORB inlet ports, and an integrated 4AN ORB drain port for optional remote draining. The included top plate allows quick conversion between Vent-to-Atmosphere (VTA) and Vent-to-Engine (VTE) configurations, while the fully serviceable design, integrated dipstick, and adjustable mounting bracket make installation and maintenance straightforward for custom performance builds.
