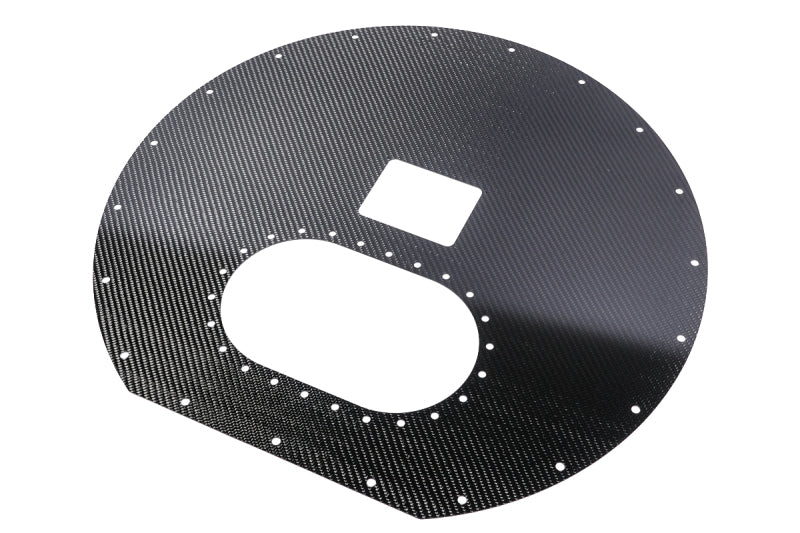

Radium 13-0411-01 Carbon Fiber Fuel Cell Lid for RA-Series Spare Tire Cell

Vehicle Fitment

• Radium Engineering RA-Series Spare Tire Fuel Cell - Carbon Fiber Lid Replacement/Upgrade
• Compatible with the Radium RA-Series Spare Tire Cell only. Does NOT fit rectangular RA-Series fuel cells (10, 10.5, 14, or 22 gallon). For 10/14 gallon rectangular cells, see Radium 13-0410-01. For the 6 gallon rectangular cell, see Radium 13-0406-01.
• Does NOT fit fuel cells manufactured by any company other than Radium Engineering.

Fitment Notes

• This lid is a direct replacement for the powder-coated aluminum lid included standard with the Radium RA-Series Spare Tire Fuel Cell. No modifications to the fuel cell enclosure are required.
• Reuse the original hardware included with the fuel cell for installation - no additional hardware required.
• If an FCST-X or other drop-in fuel pump assembly is currently installed in the fuel cell, reference the drop-in assembly's installation instructions before removing the lid. A new gasket (Radium P/N 18-0015) may be required upon reassembly.
• Check with your sanctioning body or racing organization to confirm that carbon fiber is an acceptable material for the fuel cell lid before purchasing.
• Sold individually - one lid per kit. The standard aluminum lid cannot be returned or exchanged after removal.

Features

• 68% lighter than the standard powder-coated aluminum lid included with all Radium RA-Series fuel cells - a meaningful weight reduction at a safety-critical component location.
• Constructed from pre-impregnated (pre-preg) dry carbon fiber for maximum resin-to-fiber ratio, dimensional consistency, and structural integrity versus wet-layup carbon alternatives.
• 2x2 twill weave with 3K tow (3,000 filaments per fiber bundle) delivers an aggressive, motorsport-grade appearance with high surface quality and excellent stiffness-to-weight ratio.
• Direct bolt-on fit - reuses the existing hardware from the fuel cell enclosure; no new brackets, adapters, or fasteners required.
• Compatible with all Radium FCST-X and other drop-in fuel surge tank assemblies that mount through the lid - no cutouts or modifications needed.
• Manufactured in the USA by Radium Engineering.

Specifications

• Part Number: 13-0411-01
• Application: Radium RA-Series Spare Tire Fuel Cell (lid replacement)
• Construction: Dry Carbon Fiber (Pre-impregnated)
• Weave: 2x2 Twill
• Tow: 3K (3,000 filaments per fiber)
• Weight Savings: 68% lighter than standard aluminum lid
• Hardware: Reuse original fuel cell hardware (not included)
• Perimeter Bolt Torque Spec: 6.8 Nm (60 in-lbs)
• Allen Wrench Required: 5/32 in. (4 mm) for stainless button head bolts
• Manufactured: USA
• Quantity: Sold Individually (1x lid)

Included Components

• 1x Dry Carbon Fiber Fuel Cell Lid (Spare Tire Cell fitment, 13-0411-01)

Product Description

The Radium Engineering 13-0411-01 is an optional dry carbon fiber lid upgrade for the Radium RA-Series Spare Tire Fuel Cell, designed to replace the standard powder-coated aluminum lid with a component that is 68% lighter without sacrificing structural integrity. Constructed from pre-impregnated dry carbon fiber in a 2x2 twill weave with 3K tow, this lid provides the same dimensional accuracy and bolt pattern as the factory aluminum lid, allowing it to install directly using the original hardware included with the fuel cell - no additional fasteners or modifications required. It is compatible with all Radium FCST-X and drop-in fuel pump assemblies that mount through the lid.

This lid is specific to the Radium RA-Series Spare Tire Cell and is not interchangeable with any other Radium fuel cell size or shape, nor with fuel cells from any other manufacturer. Before purchasing, verify with your sanctioning body or racing organization that carbon fiber is an approved material for the fuel cell lid in your class. When reinstalling after any service work, torque perimeter bolts to 6.8 Nm (60 in-lbs) using a 5/32 in. (4 mm) Allen wrench, and take care not to overtighten fasteners to avoid cracking the carbon resin. If an FCST-X assembly is installed, consult its separate instructions and have Radium P/N 18-0015 gasket on hand before disassembly. Sold individually; the standard aluminum lid is not returnable or exchangeable once removed.
