Radium Engineering 20-0844 Master Cylinder Brace for 1998-2005 Mazda MX-5 Miata

Vehicle Fitment

• 1998-2005 Mazda MX-5 Miata NB (Left-Hand Drive, Without ABS)

Fitment Notes

• Left-hand drive (LHD) vehicles only - does not fit right-hand drive models
• Does NOT fit NB models equipped with ABS - see Radium 20-0843 for 1989-1997 NA Miata with ABS
• Compatible with the OEM factory strut tower brace - no conflict with stock hardware
• Installs using existing upper strut mount studs - longer M8x1.25mm replacement studs are included to account for the added brace thickness
• No cutting, drilling, or permanent modification to the vehicle required

Features

• Solid 1-piece stainless steel construction eliminates secondary flex points found in multi-piece designs
• Black powdercoated finish for corrosion resistance and a clean underhood appearance
• Installs on the strut tower to brace the brake master cylinder against firewall flex - delivers 90% less master cylinder deflection (measured with dial indicator)
• Adjustable preload bolt with large-diameter aluminum head contacts the master cylinder without risk of damage to the aluminum MC housing
• Stainless steel jam nuts lock the preload setting to prevent slippage during use
• Streamlined profile supports nearby aftermarket modifications without obstruction
• Secured with M8 hardware torqued to 30 lb-ft (40 Nm) - no permanent modification required

Specifications

• Construction: 1-piece stainless steel, black powdercoated
• Adjustment Bolt: Large-diameter aluminum head (protects master cylinder housing)
• Mounting Hardware: M8x1.25mm
• Torque Specification: 30 lb-ft (40 Nm)
• Drive Configuration: Left-hand drive (LHD) only
• ABS Compatibility: Non-ABS models only

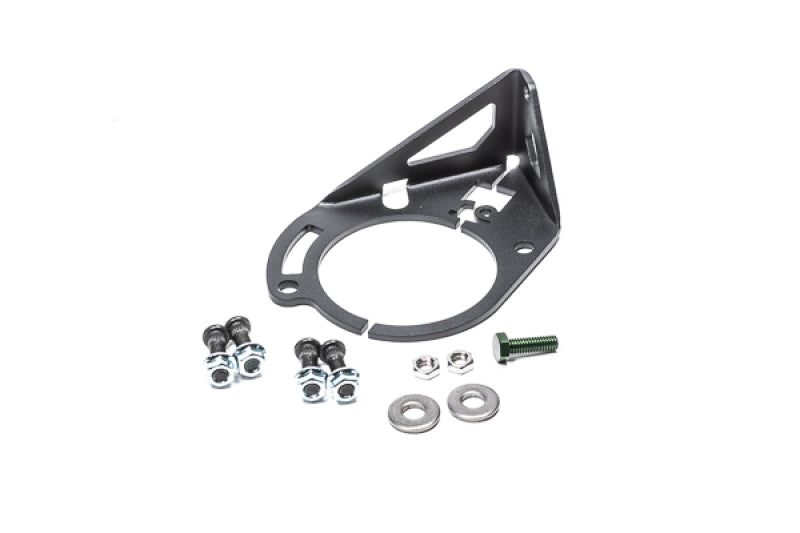

Included Components

• 1x Black powdercoated stainless steel master cylinder brace
• 1x Aluminum preload adjustment bolt
• 2x Stainless steel jam nuts
• 2x Stainless steel shims
• 4x Longer M8x1.25mm studs (replacement upper strut studs)
• 4x M8x1.25mm nuts

Product Description

The Radium Engineering 20-0844 is a direct bolt-in brake master cylinder brace for the 1998-2005 Mazda MX-5 Miata NB in left-hand drive, non-ABS configuration. When the brake pedal is depressed, the thin NB firewall deflects slightly under load, absorbing energy that should be converting to hydraulic pressure. The Radium brace installs on the front strut tower and braces the master cylinder against this flex - reducing measured deflection by 90% and delivering a firmer, more immediate pedal feel with no change to the vehicle's brake hardware.

The solid 1-piece stainless steel construction eliminates secondary flexing inherent in multi-piece designs. An adjustable aluminum preload bolt contacts the master cylinder body without risk of damage, and stainless steel jam nuts lock the setting permanently. The kit includes longer upper strut studs to compensate for the added brace thickness. Installation uses existing factory threaded locations and requires no cutting, drilling, or permanent modification.
