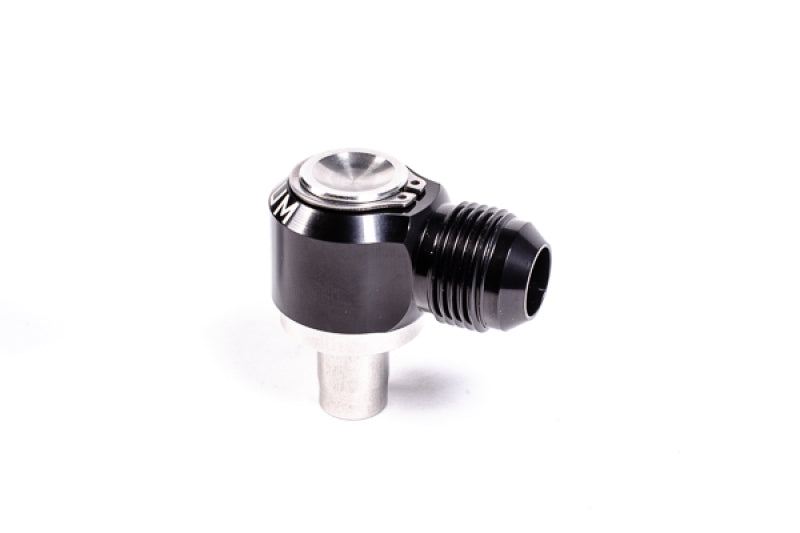

Radium 20-0509 10AN Press-In Valve Cover Fitting Toyota 1JZ-GTE VVT-i Exhaust

Vehicle Fitment

• 1996-2001 Toyota Mark II / Chaser / Cresta (JZX100, 2.5L 1JZ-GTE VVT-i, RWD)
• 2000-2004 Toyota Mark II / Verossa (JZX110, 2.5L 1JZ-GTE VVT-i, RWD)
• 2002-2007 Toyota Mark II Blit (JZX110W, 2.5L 1JZ-GTE VVT-i, RWD)
• 1996-2000 Toyota Soarer (JZZ30, 2.5L 1JZ-GTE VVT-i, RWD)
• 1999-2003 Toyota Crown Athlete V (JZS171, 2.5L 1JZ-GTE VVT-i, RWD)

Fitment Notes

• Fits the exhaust side valve cover crankcase vent press-in location only - not the intake side
• Exclusive to the 1JZ-GTE VVT-i engine - does not fit the Non-VVT-i 1JZ-GTE (see Radium 20-0609) or 2JZ engines (see Radium 20-0409)
• For intake-side PCV valve replacement on 1JZ-GTE VVT-i, use Radium 20-0408
• When installed in place of a PCV valve, a new PCV valve must be installed inline or on the catch can to maintain the connection to the intake manifold

Features

• Converts the OEM press-in crankcase vent barb to a 10AN male swivel fitting connection
• Low-profile swivel design allows 360° rotation for flexible hose routing
• Simple press-fit installation - no drilling, welding, or permanent modifications required
• FKM (Viton) O-rings ensure chemical resistance and a leak-free seal
• Stainless steel and aluminum construction with anodized and laser-engraved finish
• Compatible with large-diameter breather lines used in competition catch can setups

Specifications

• AN Size: 10AN Male
• Installed Height: 1.19"
• Fitting Style: Low-profile swivel, press-in
• O-Ring Material: FKM (Viton)
• Construction: Stainless steel and anodized aluminum
• Position: Exhaust side valve cover crankcase vent port
• Engine: Toyota 1JZ-GTE VVT-i only

Included Components

• 1x 10AN male press-in swivel fitting (20-0509)

Product Description

The Radium Engineering 20-0509 is a 10AN low-profile press-in swivel fitting designed to replace the OEM crankcase vent barb on the exhaust side valve cover of the Toyota 1JZ-GTE VVT-i engine. It converts the factory press-in port into a 10AN male swivel connection, enabling the use of large-diameter breather lines required for competition catch can systems. Installation requires no tools, drilling, or welding - it simply presses into the existing valve cover port.

The swivel design rotates a full 360°, giving builders full flexibility to route the breather hose in any direction without kinking or clearance issues. FKM Viton O-rings provide excellent resistance to fuel and oil vapors, ensuring a lasting, leak-free seal. This fitting is specific to the exhaust side of the 1JZ-GTE VVT-i valve cover; builders should note that different Radium part numbers are required for the intake-side PCV port and for Non-VVT-i or 2JZ variants.
