Radium Engineering 20-0980 Mid-Mount Fuel Pump Hanger for 2003-13 Corvette C6

Vehicle Fitment

• 2003-2013 Chevrolet Corvette C6 mid-engine models (VIN > 35114930; requires Radium fuel hanger)

Features

• Drop-in replacement fuel pump hanger - no cutting or modification required
• Includes internal collector and twin one-way valves to prevent fuel starvation
• Taps provided for single aftermarket pump installation
• Compatible with high-volume pumps from AEM, Walbro, and Ti Automotive
• Sealed stainless steel studs and ETFE-insulated wiring for fuel-safe operation
• Supports ethanol fuels (E85), methanol, or gasoline
• Includes fuel sock/inlet filter for pump protection
• Designed specifically for mid-engine C6 Corvette chassis

Specifications

• Function: In-tank fuel pump hanger (single pump, collector included)
• Outlet Port: Tapped for 10AN ORB (adapter to 8AN included)
• Return Inlet: Tapped for 8AN ORB (adapter to 6 AN included)
• Compatible Pumps: AEM 50-1000/1200, Walbro GSS342/F900 series, Ti E5LM
• Drivetrain: RWD (mid-engine Corvette)
• Year Range: 2003-2013 (VIN after November 2002) Corvette C6
• Fuel Types: Gasoline, E85, Methanol
• Compliance: Not CARB-legal

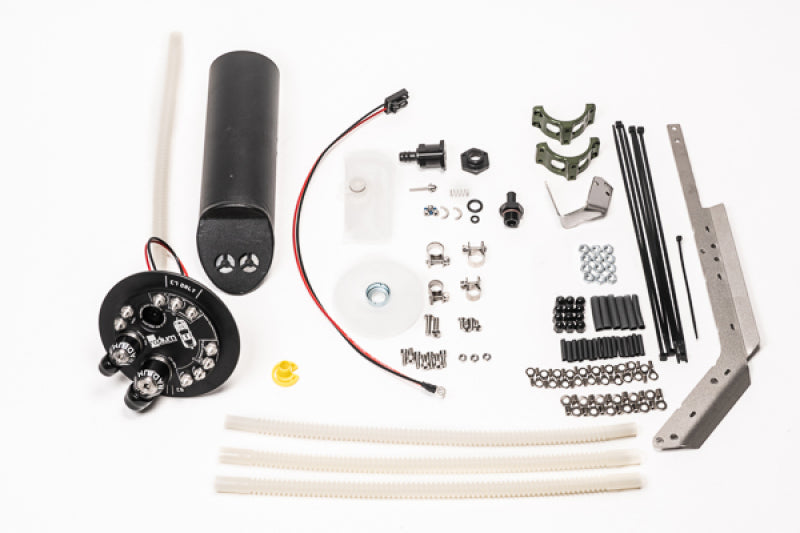

Included Components

• 1x Fuel pump hanger/housing assembly
• Internal collector with dual one-way fill valves
• Fuel pump sock/filter inlet
• 10AN to 8AN outlet adapter
• 8AN to 6AN return fitting adapter
• Stainless steel terminal studs and wiring harness
• Installation instructions

Product Description

The Radium Engineering 20-0980 Fuel Pump Hanger is a direct-replacement, in-tank assembly designed specifically for the mid-engine Chevrolet Corvette C6 (2003-2013, VIN after 35114930). It features a built-in fuel collector, dual one-way valves, and plug-and-play wiring to support a single aftermarket pump such as AEM, Walbro, or Ti Automotive.

Fuel starvation is minimized by the internal collector design, and ETFE wiring and sealed studs ensure full compatibility with ethanol and methanol fuels. It installs without tank modifications and includes adapters for 10AN and 8AN connections, along with inlet sock filters.

Please note: this unit is not emissions certified and is **not CARB-legal**. It must be used with compatible aftermarket fuel pumps only.
