QA1 DD401 Proma Star Double Adj Coilover Shock 10.125-14in. for 2.5in. Springs

Vehicle Fitment

• Universal - for custom chassis, suspension builds, and applications without a direct-fit coilover option, using a 2.5 in. I.D. spring (spring sold separately)

Fitment Notes

• Sold individually; confirm the shock's collapsed and extended lengths (10.125 in. / 14 in.) fit your application before ordering

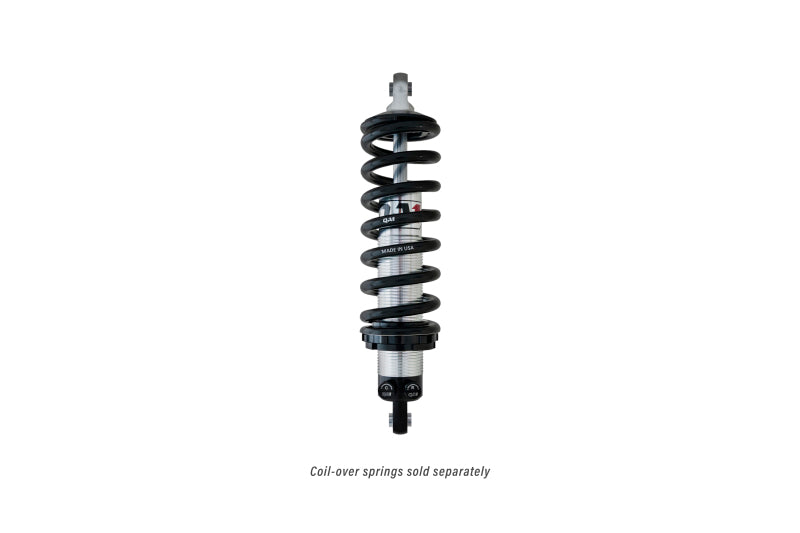

• Recommended spring: 2.5 in. I.D., 9-10 in. length (spring sold separately)
• Requires a T114W or T115W spanner wrench for adjustment (sold separately)
• Ensure adequate shock travel for your application to avoid over-extending or bottoming out the shock

Features

• Double-adjustable valving allows independent tuning of compression and rebound
• 324 external valving selections for precise damping adjustment
• Twin-tube internal design for consistent, predictable damping performance
• Aluminum shock body reduces weight compared to steel-bodied shocks
• Threaded body design allows quick ride height adjustment via the spring seat nut
• Bearing mounts at both ends reduce deflection and accommodate slight misalignment
• Can be mounted in any orientation - shock body up or down
• Made in the USA and dyno tested for consistent performance
• Eligible for QA1's Limited Lifetime Warranty when registered at QA1.net/Warranty

Specifications

• Shock Type: Double-Adjustable
• Body Material: Aluminum
• Body Finish: Clear Anodized (Silver)
• Internal Design: Twin-Tube
• Extended Length: 14 in.
• Collapsed Length: 10.125 in.
• Body Diameter: 2 in.
• Upper Mount: Bearing
• Lower Mount: Bearing
• Bearing Size: 1 in. wide x 1/2 in. bore
• Valving Selections: 324
• Recommended Spring I.D.: 2.5 in.
• Recommended Spring Length: 9-10 in.
• Coilover Springs Included: No
• Gas Charged: No

Included Components

• 1x Proma Star Double-Adjustable Coilover Shock
• 1x Spring Hardware Kit (collars/retainers)

Product Description

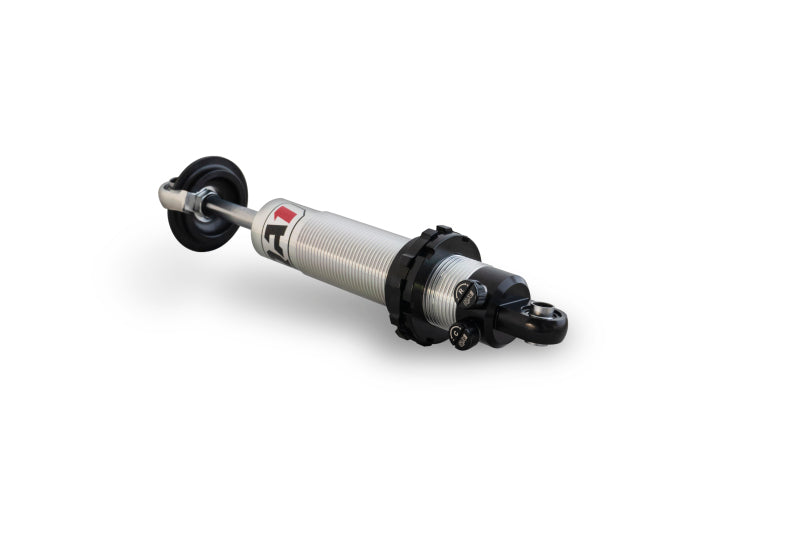

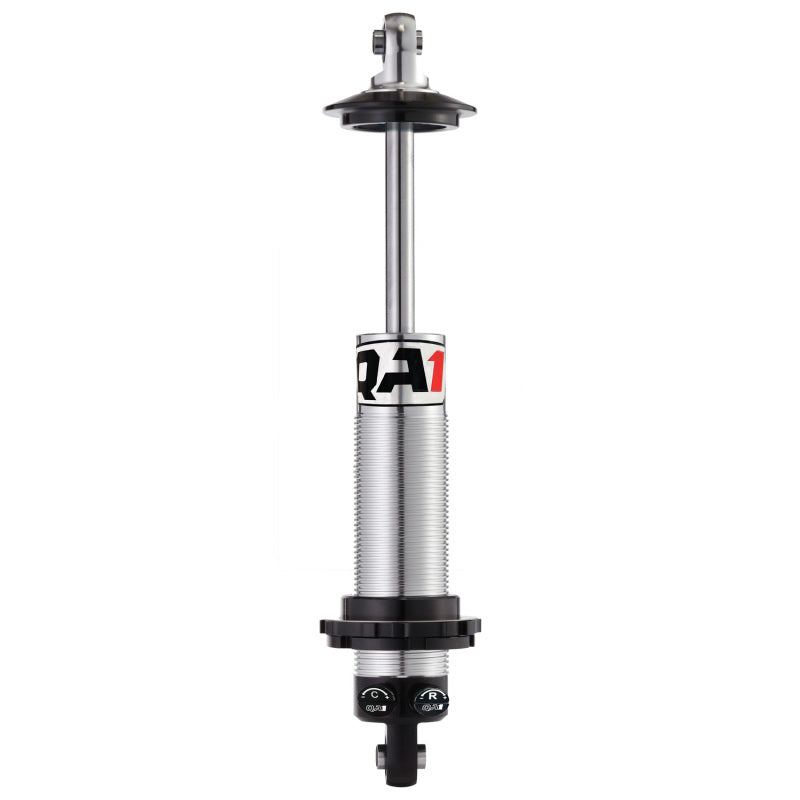

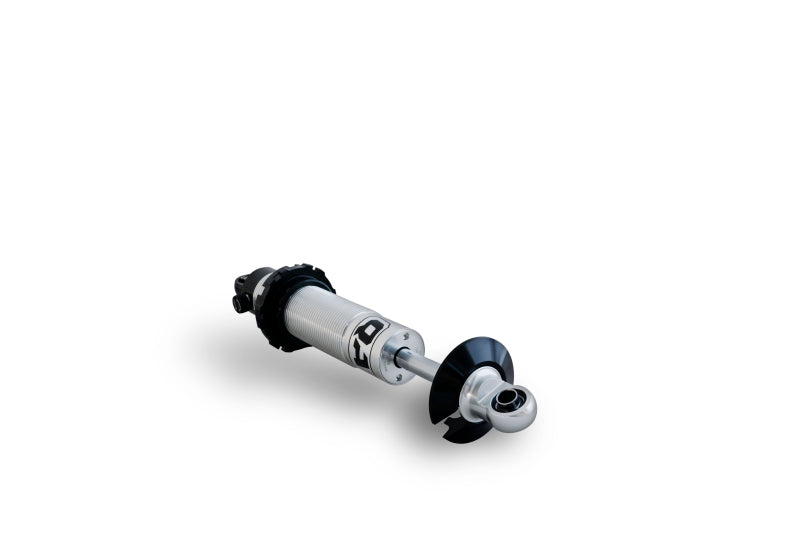

The QA1 DD401 is a Proma Star double-adjustable coilover shock built for custom chassis and suspension setups where a direct-fit coilover isn't available - whether you're building a hot rod, restomod, or one-off suspension design. With 324 external valving selections, it gives independent control over compression and rebound damping, letting you dial in exactly how the car rides and handles.

The shock uses an aluminum body with a twin-tube internal design for consistent, predictable damping, and bearing mounts at both the upper and lower ends to minimize deflection and tolerate slight misalignment in the mounting points. Its threaded body lets you adjust ride height quickly by turning the spring seat nut - a T114W or T115W spanner wrench (sold separately) makes this easier. At 10.125 in. collapsed and 14 in. extended, it pairs with a 2.5 in. I.D. spring in the 9-10 in. length range, which is sold separately so you can choose the exact rate for your build.

Because it can be mounted in either orientation and works with QA1's broad range of 2.5 in. I.D. springs, the DD401 is a flexible choice for street or light track use on a custom-built car. It's made in the USA, dyno tested, and eligible for QA1's Limited Lifetime Warranty once registered.
