QA1 GS401-10400C Front Single Adj Pro Coil System 10in. 400lb for GM Vehicles

Regular price: $749.95
Regular price: ~~$830.83~~
Sale price: $749.95

Shipping calculated at checkout.

In Stock: 2

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:QAPGS401-10400C

MPN: GS401-10400C

UPC: 806990062154

Weight: 20.3 lb

Inventory: 2

Type: Coilovers

Vehicle Fitment

1964-1972 GM A-Body (small block)
1978-1988 GM A/G-Body (small block)
1967-1969 GM F-Body (small block)
1970-1981 GM F-Body (small block)
1968-1974 GM X-Body (small block)
1982-2004 GM S-Series Pickup (S15, Sonoma) (small block)
1955-1957 Chevrolet Sedan (small block)

Fitment Notes

400 lb/in. springs are QA1's recommended small-block rate for these platforms; big-block applications should use a higher-rate version of this same system (e.g., 500-650 lb/in., sold under a different part number)
Recommended for a front-end weight of approximately 1,801-1,900 lbs
Bolts in with either factory stamped-steel control arms or QA1 tubular control arms
Requires a T114W or T115W spanner wrench (sold separately); a 7888-109 thrust bearing kit is optional
Some applications may require dropping the lower control arm for installation, or enlarging the control arm's shock opening to accept the shock body

Features

100% bolt-in coil-over conversion - no fabrication required
Up to 2 in. of ride height adjustment (0 to -2 in.) via a simple turn of the spring seat nut
Single-adjustable valving with 18 positions for simultaneous compression and rebound tuning
Fully threaded shock body allows fine-tuning of ride height and weight balance
Lightweight billet aluminum shock body
High-travel coil springs with fewer coils and a smaller wire diameter for increased travel
100% dyno tested and serialized
Serviceable and rebuildable by QA1 authorized service centers
Made in the USA
Eligible for QA1's Limited Lifetime Warranty when registered

Specifications

Vehicle Position: Front
Shock Valving: Single Adjustable
Valving Selections: 18
Internal Design: Twin-Tube
Springs Included: Yes
Spring Rate: 400 lb/in.
Spring Length: 10 in.
Ride Height Adjustment: 0 to -2 in. (lowered)
Extended Length: 12.88 in.
Collapsed Length: 8.63 in.
Threaded Adjustment Range: 3 in.
Upper Mount: Stud
Lower Mount: Bar Pin (T-Bar Type)
Shock Body Material: Aluminum, Silver Finish
Bushing Material: Polyurethane (Black)
Recommended Front-End Weight: 1,801-1,900 lbs

Included Components

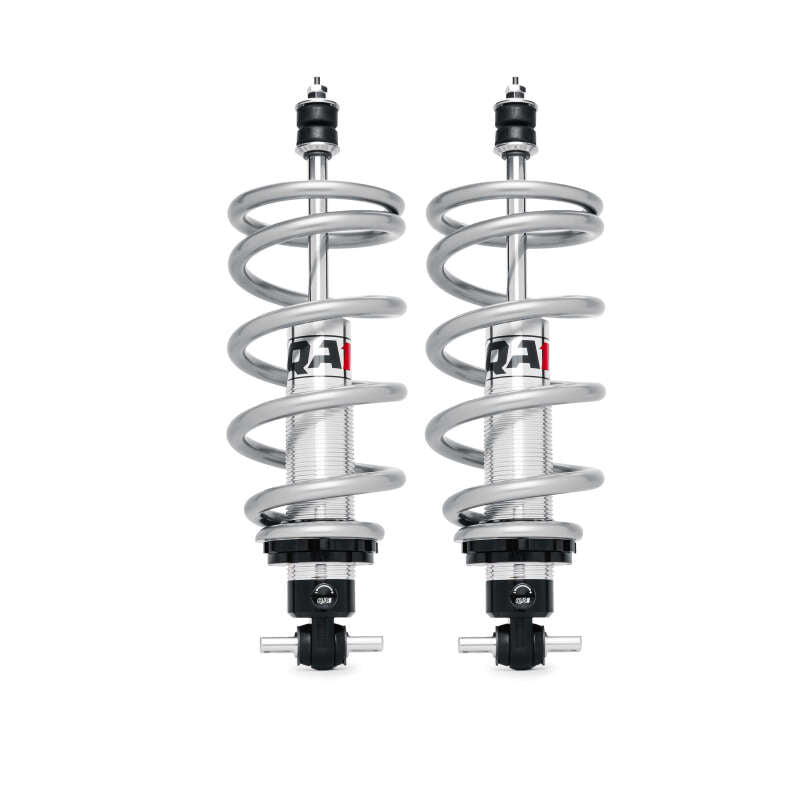

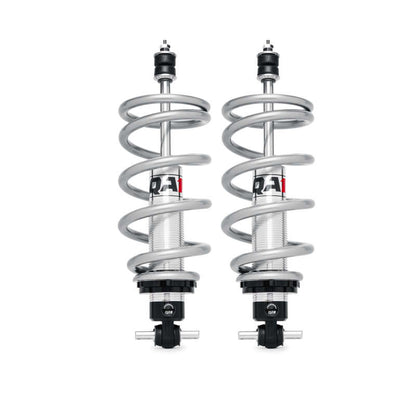

2x Single-Adjustable Pro Coil Front Shocks
2x High-Travel Coil Springs (10 in., 400 lb/in.)

Product Description

The QA1 GS401-10400C is a front Pro Coil single-adjustable coilover system sold as a matched pair, built to bolt directly in place of the factory front shock/spring setup on a range of GM A-Body, F-Body, X-Body, and S-Series platforms - as well as 1955-1957 Chevrolet sedans - using QA1's recommended small-block spring rate of 400 lb/in. It gives you 0 to 2 inches of ride height adjustment via the spring seat nut, so you can dial in stance without swapping components.

Each shock uses a lightweight billet aluminum body with 18-position single-adjustable valving, letting you simultaneously tune compression and rebound from a comfortable street ride to a firmer, more aggressive feel - accessible at the base of the shock with the wheel turned to full lock. The high-travel coil springs are engineered with fewer coils and a smaller wire diameter for increased suspension travel, and the whole system installs cleanly with either factory stamped-steel control arms or QA1's tubular control arms.

Because the 400 lb/in. rate is tuned for small-block, average front-end weight vehicles (roughly 1,801-1,900 lbs), it's a strong fit for street-driven muscle cars, S-Series trucks, and full-size GM sedans within that weight class; heavier big-block combinations should step up to a higher spring rate version of this same system. It's 100% dyno tested, made in the USA, and eligible for QA1's Limited Lifetime Warranty.
