QA1 GS501 Front Pro Coil Single Adjustable Shock for GM A/F/G/X-Body

Vehicle Fitment

• 1964-1972 GM A-Body (Front, RWD; Chevrolet Chevelle, Malibu, El Camino, Pontiac GTO, LeMans, Tempest, Buick Skylark, Oldsmobile Cutlass/442/F-85)
• 1973-1977 GM A-Body (Front, RWD)
• 1978-1988 GM A/G-Body (Front, RWD; Chevrolet Malibu, Monte Carlo, El Camino; Buick Regal; Oldsmobile Cutlass; Pontiac Grand Prix)
• 1967-1969 GM F-Body (Front, RWD; Chevrolet Camaro, Pontiac Firebird)
• 1970-1981 GM F-Body (Front, RWD; Chevrolet Camaro, Pontiac Firebird)
• 1968-1974 GM X-Body (Front, RWD; Chevrolet Nova, Pontiac Ventura, Oldsmobile Omega, Buick Apollo)
• 1982-1988 Chevrolet S-10/GMC S-15 (Front, RWD; 2WD)
• 1955-1957 Chevrolet Full-Size Sedan (Front, RWD)
• 1958-1970 Chevrolet B-Body (Front, RWD)
• 1971-1976 GM B-Body (Front, RWD)
• 1977-1990 GM B-Body (Front, RWD)
• 1991-1996 GM B-Body (Front, RWD)
• 1963-1987 Chevrolet C10 (Front, RWD; 2WD)
• 1988-1998 Chevrolet C1500 (Front, RWD; 2WD)
• 1963-1965 Buick Riviera (Front, RWD)

Fitment Notes

• QA1 GS501 is a semi-universal GM front Pro Coil shock rather than a single vehicle-specific replacement shock.
• Vehicle-specific fitment depends on the chassis, control-arm configuration, mounting geometry, and available suspension travel.
• Compatible with factory stamped-steel or QA1 tubular front control arms on supported applications.

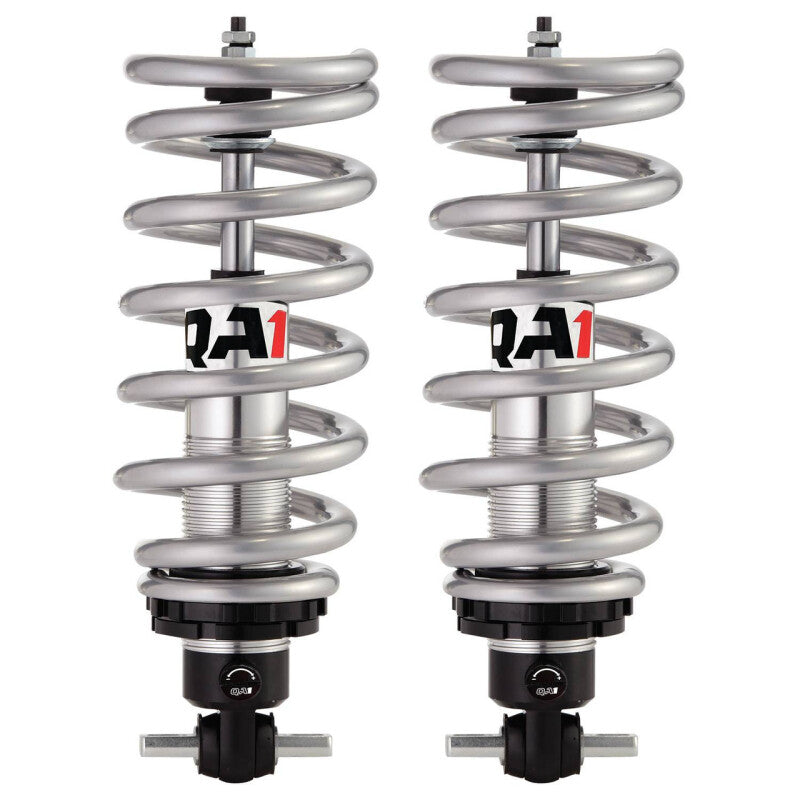

• Must be used with QA1 tapered coil springs; the spring is not included.
• Recommended spring diameter is 2.5 inches and recommended spring length is 10 inches.
• Ride height is adjustable through the threaded shock body, with up to 2 inches of adjustment on supported applications.
• Spanner wrench T114W or T115W is required for ride-height adjustment and is sold separately.
• Optional QA1 7888-109 thrust-bearing kit can simplify spring-seat adjustment.
• Spring rate must be selected according to the vehicle's front-end weight and application; QA1 publishes different rates for small-block and big-block configurations.
• Sold individually; two shocks are required for a complete front-axle installation.
• Coilover springs are not included.

Features

• Pro Coil single-adjustable front coilover shock for GM performance suspension applications.

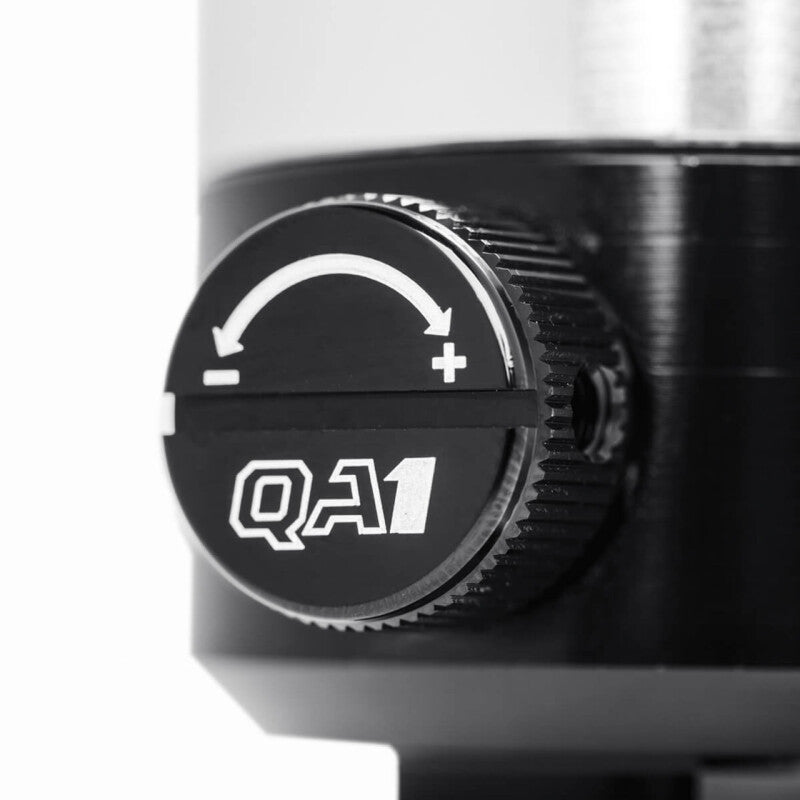

• 18-position simultaneous compression and rebound adjustment provides broad damping control.
• Threaded shock body provides adjustable ride height without changing the shock mounting position.
• Up to 2 inches of ride-height adjustment is available on supported applications.
• Lightweight billet aluminum shock body reduces suspension weight.
• Twin-tube internal design provides consistent damping characteristics.
• Stud-type upper mount and T-bar lower mount provide GM-specific mounting geometry.
• Polyurethane lower bushing helps control deflection at the shock mount.
• Designed for bolt-in installation with compatible factory or QA1 tubular control arms.
• Serviceable and rebuildable by QA1 authorized service centers.
• 100% dyno tested and serialized by QA1 before leaving the factory.
• Made in the USA at QA1's Lakeville, Minnesota facility.
• Limited Lifetime Warranty eligibility is available when registered according to QA1 requirements.
• Allows spring rate and damping characteristics to be tailored to the vehicle and driving application.

Specifications

• Brand: QA1
• Part Number: GS501
• Product Line: Pro Coil
• Product Type: Front Coilover Shock
• Shock Valving: Single Adjustable
• Adjustment Positions: 18
• Position: Front
• Collapsed Length: 10.5 in.
• Extended Length: 15 in.
• Stroke: 4.5 in.
• Shock Body Diameter: 2 in.
• Shock Body Material: Aluminum
• Shock Body Finish: Clear anodized
• Internal Design: Twin-tube
• Upper Mount: Stud
• Lower Mount: T-bar
• Bushing Material: Polyurethane
• Recommended Spring Length: 10 in.
• Recommended Spring Inside Diameter: 2.5 in.
• Spring Rate: Not applicable; shock only
• Coilover Spring Included: No
• Hardware Included: Yes
• Quantity: 1x shock
• Drivetrain: RWD/2WD on applicable chassis

Included Components

• 1x QA1 GS501 Pro Coil single-adjustable front shock
• 1x Installation hardware set

Product Description

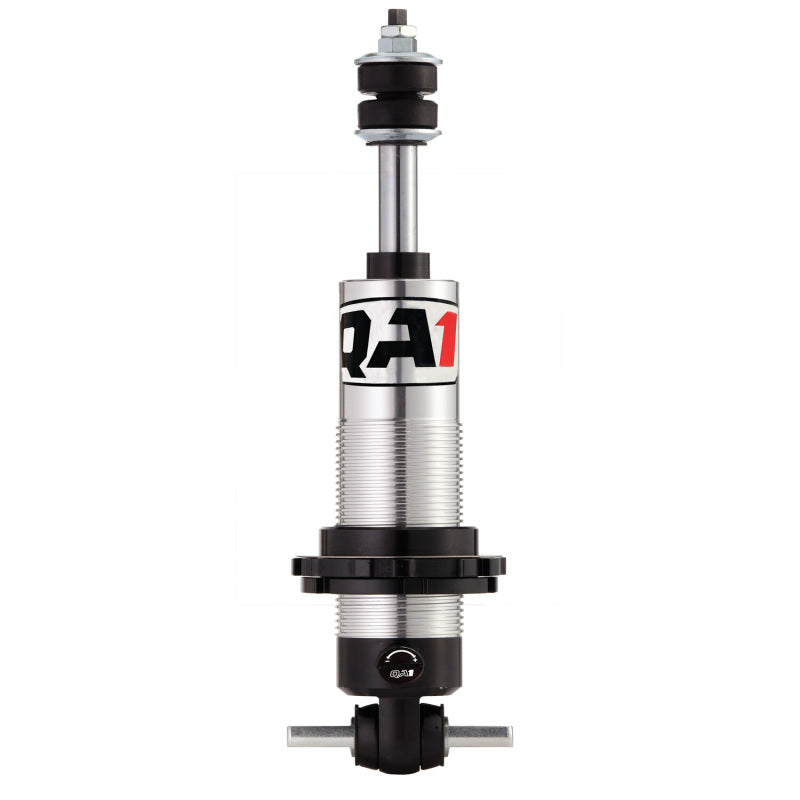

QA1 GS501 is a Pro Coil single-adjustable front coilover shock designed for a broad range of GM performance applications. Rather than being limited to one vehicle, the GS501 uses GM-specific stud and T-bar mounting geometry and is applicable across supported A-Body, F-Body, G-Body, X-Body, B-Body, truck, and other GM chassis configurations. The lightweight aluminum body and threaded design provide a combination of performance, ride-height adjustability, and reduced suspension weight.

The shock provides 18 simultaneous compression and rebound adjustment positions, allowing the damping to be tuned from a more compliant street setting toward a firmer performance setting. Its twin-tube construction, polyurethane lower bushing, 10.5-inch collapsed length, and 15-inch extended length make it suitable for the supported GM front suspension configurations. The threaded body allows up to 2 inches of ride-height adjustment when properly configured.

GS501 is sold as a shock only and does not include a coilover spring. QA1 specifies use with its tapered coil springs, with a recommended 2.5-inch inside diameter and 10-inch spring length. The appropriate spring rate must be selected based on the vehicle's front-end weight and intended use. Verify the specific chassis, control-arm configuration, mounting dimensions, and suspension travel before installation; two GS501 shocks are required for a complete front-axle installation.
