QA1 R156-170 Rear 4-Link Coilover Kit 170 lb. for 1967-1969 Camaro Firebird

Vehicle Fitment

• 1967-1969 Chevrolet Camaro (All Trims incl. Z28, SS, RS, Indy Pace Car)
• 1967-1969 Pontiac Firebird (All Trims incl. 400, HO, Ram Air)

Fitment Notes

• Fits 1967-1969 GM F-Body (1st gen Camaro and Firebird) only. For 1970-1981 2nd gen F-Body, see QA1's corresponding 4-link kits for that platform.
• Rear crossmember installation requires MIG welding to the frame rails - no modifications to the floor pan are required. Installation near the fuel tank requires appropriate precautions; QA1 recommends fuel tank be as empty as possible before welding.
• Designed to work with both standard tub and mini-tub rear configurations. Supports up to 11 in. wide wheels on 1967-1968 F-Bodies and up to 12 in. wide wheels / 335 tires on 1969 models. Mini tubs are required to achieve maximum wheel and tire width.
• Rear ride height adjustability: +2 in. above stock to -3 in. below stock (5 in. total range).
• 170 lb./in. spring rate is the standard street-oriented rate for this platform. For stiffer applications, consider the double-adjustable version (R256-170) or the drag-optimized version (R356-170).
• QA1 Rear Anti-Roll Bar (52827) and Subframe Connectors (52093) are strongly recommended to complement this kit.
• Spanner wrench included for coilover ride height adjustment.
• May require exhaust modification depending on existing system.

Features

• Completely replaces the factory leaf spring rear suspension with a triangulated 4-link coil-over system for superior ride quality, traction, and handling predictability.

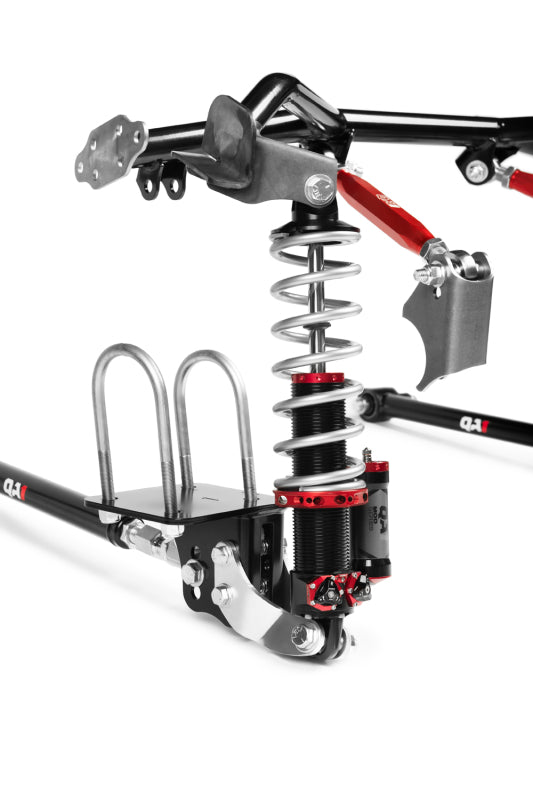

• Single-adjustable Proma Star coil-over shocks with 18-position rebound tuning - adjust from soft street to firm performance with a simple turn of the knob.
• +2 to -3 in. of rear ride height adjustability - 5 in. total range - via the threaded shock body for precise stance and corner balance control.
• Tubular steel 4-link crossmember and trailing arms, black powder-coated for corrosion resistance and a clean finished appearance.

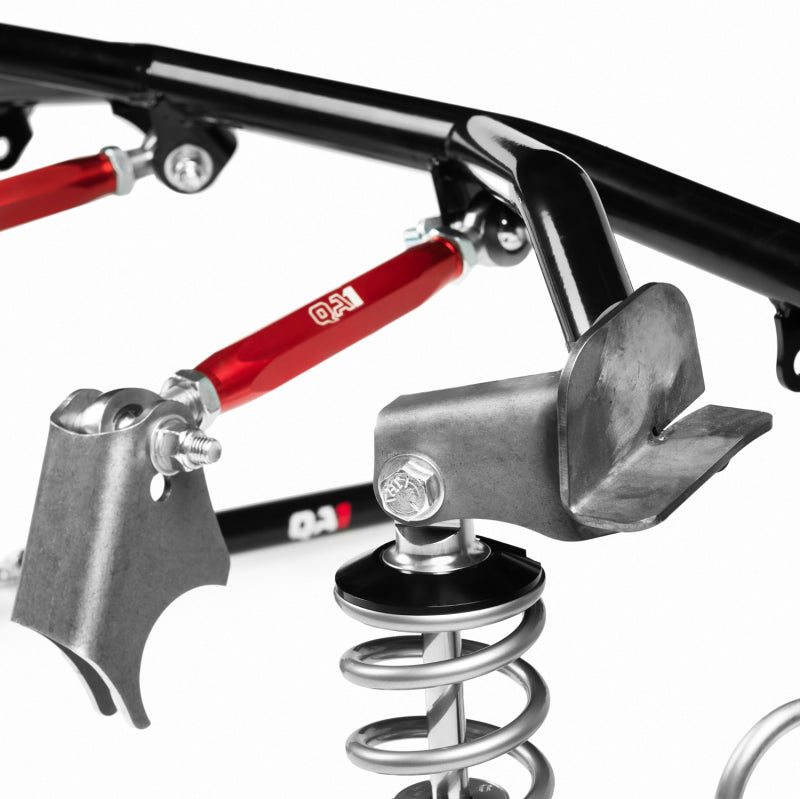

• Red anodized adjustable upper trailing arms allow on-car pinion angle adjustment without link removal.
• Compatible with both standard and mini-tub configurations to accommodate wider wheels and tires for improved traction and stance.
• Proudly made in the USA in Lakeville, MN; eligible for QA1's Limited Lifetime Warranty on shocks (register at QA1 before installation).

Specifications

• Application: 1967-1969 GM F-Body (1st Gen Camaro and Firebird)
• System Type: Rear Triangulated 4-Link Coil-Over Conversion
• Shock Type: Single-Adjustable Proma Star Coil-Overs (18-position rebound)
• Spring Rate: 170 lbs./in.
• Spring Length: 12 in.
• Spring I.D.: 2.50 in.
• Spring Finish: Silver Powder-Coated
• Crossmember / Trailing Arm Finish: Black Powder-Coated Steel
• Upper Trailing Arms: Red Anodized, Adjustable (on-car pinion angle adjustment)
• Rear Ride Height Adjustability: +2 to -3 in. (5 in. total range)
• Welding Required: Yes (crossmember to frame rails - no floor pan modification)
• Includes Spanner Wrench: Yes
• Quantity: Sold as a Complete Kit
• Warranty: Limited Lifetime on shocks; 1 Year on other components

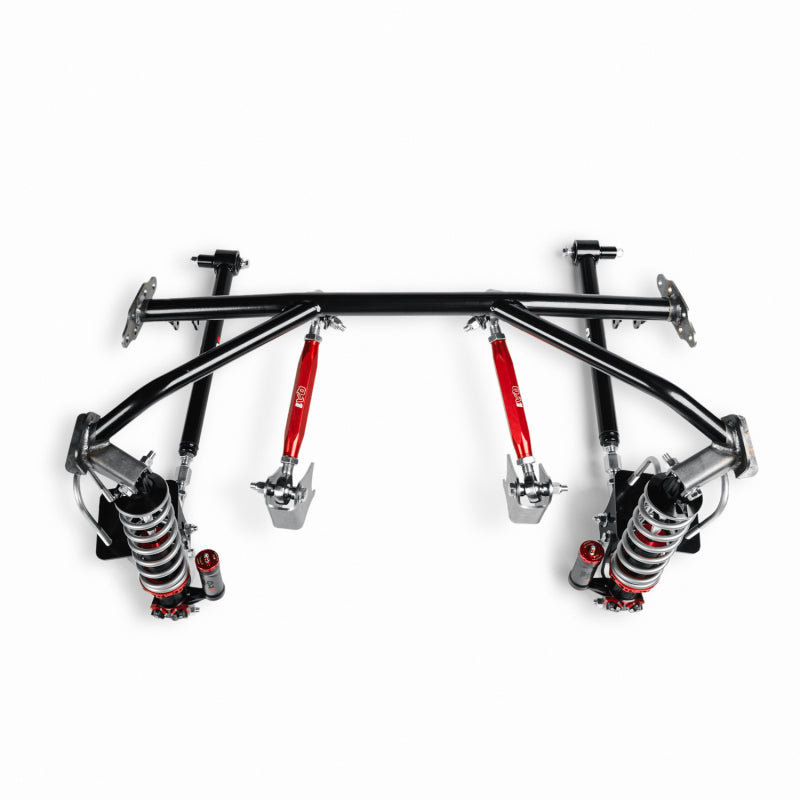

Included Components

• 1x Tubular Steel 4-Link Crossmember (black powder-coated)
• 2x Single-Adjustable Proma Star Rear Coil-Over Shocks
• 2x 170 lb./in. Coil Springs - 12 in., 2.50 in. I.D. (silver powder-coated)
• 2x Adjustable Upper Trailing Arms (red anodized)
• 2x Lower Trailing Arms
• 1x Spanner Wrench
• 1x Set Mounting Hardware and Rod End Spacers

Product Description

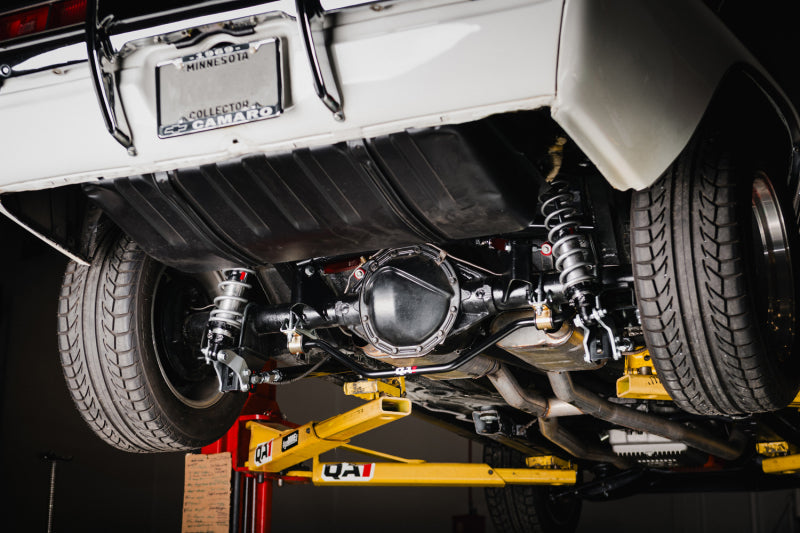

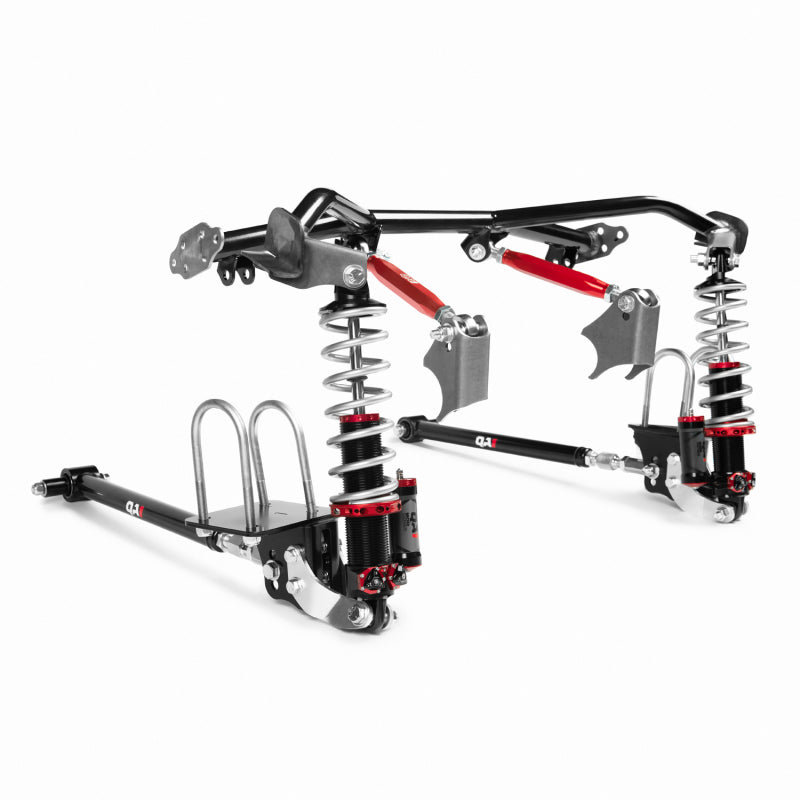

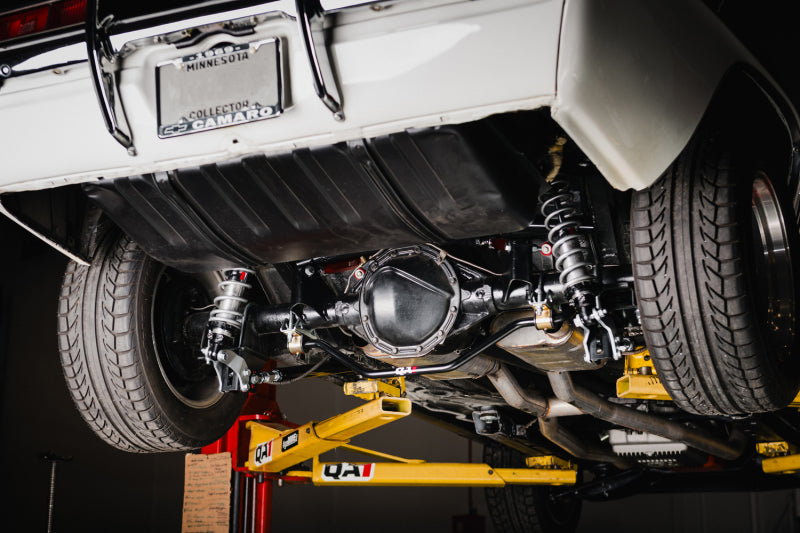

The QA1 R156-170 is a complete rear triangulated 4-link coil-over conversion kit for 1967-1969 Chevrolet Camaro and Pontiac Firebird. It eliminates the factory leaf spring rear suspension entirely, replacing it with a purpose-built tubular steel crossmember, 4-link trailing arm assembly, and single-adjustable Proma Star coil-overs running 170 lb./in. springs. The result is a dramatically more capable and adjustable rear suspension that delivers improved traction, reduced wheel hop, and +2 to -3 in. of ride height adjustability - giving 1st gen F-Body owners control over stance and corner balance that was simply not possible with the factory setup. The red anodized upper trailing arms feature on-car pinion angle adjustment without requiring link removal.

Crossmember installation requires MIG welding to the frame rails - no floor pan modifications are needed - and can be completed with the fuel system in place as long as appropriate precautions are taken near the fuel tank. The kit supports both standard and mini-tub configurations and accommodates up to 11 in. wide wheels on 1967-1968 models and 12 in. wide wheels / 335 tires on 1969 models with mini tubs. QA1 strongly recommends complementing this kit with the QA1 Rear Anti-Roll Bar (52827) and Subframe Connectors (52093) for maximum chassis stiffness and handling gain. For double-adjustable valving, order R256-170; for drag-optimized valving, order R356-170.
