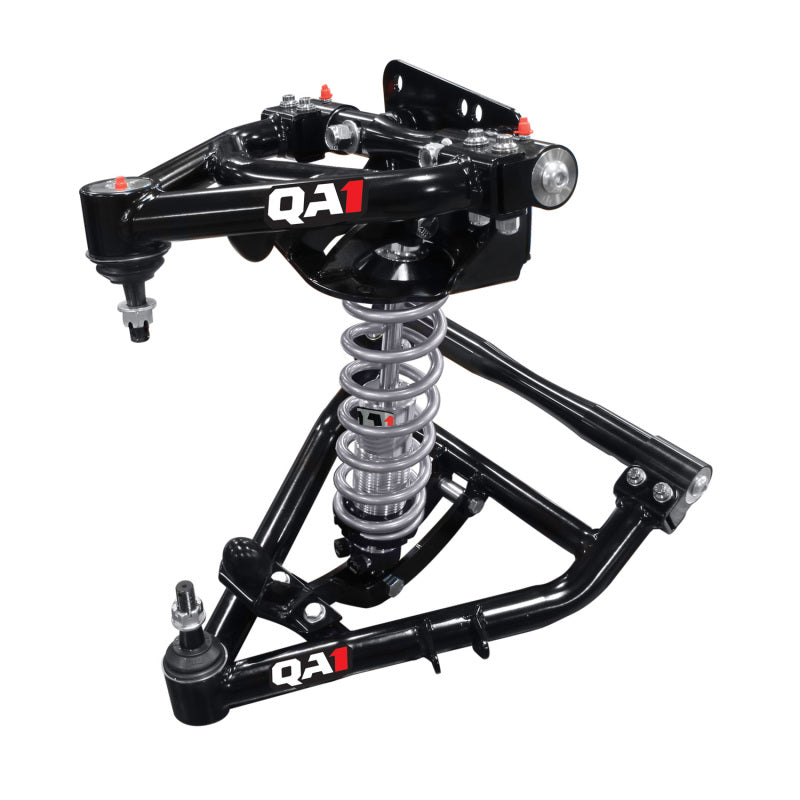

QA1 52611-S850 Front Coilover Conversion 1963-1987 Chevy C10 Single Adj 850lb/in

Vehicle Fitment

• 1963-1987 Chevrolet C10 Pickup (2WD, All engines)
• 1963-1987 GMC C15 / C1500 Pickup (2WD, All engines)

Fitment Notes

• 2WD applications only - not designed for 4WD (K10/K15) models
• Must use spindles compatible with 1973-1987 ball joints - 1963-1972 owners must upgrade spindles before installing this kit
• Not compatible with factory sway bars - sway bar must be removed or replaced with a QA1 compatible unit (sold separately)
• Compatible with popular drop spindles, which can provide an additional 2-3 in. of drop beyond the kit's standard range
• Adjustable ride height range: up to 5 in. drop when used with popular drop spindles
• Factory sway bar end links cannot be reused - verify sway bar compatibility before ordering

Features

• Complete bolt-in front coilover conversion using factory mounting locations - no chassis cutting or custom fabrication required
• QA1 Proma Star single-adjustable aluminum coilover shocks - 18-position simultaneous compression and rebound adjustment via external knob
• 100% dyno tested and serialized shocks - rebuildable and revalvable by QA1 authorized service centers
• Upper and lower tubular control arms made from 12-gauge HSLA steel - deliver up to 7 degrees of added caster when used together for significantly improved stability and driveability
• High-travel 850 lb/in coilover springs (10 in. length, 2.50 in. I.D.) - silver powder coated
• QA1 performance ball joints and low-friction maintenance-free polymer bushings - reduce deflection for sharper handling response
• Made in the USA at QA1's Lakeville, MN facility

Specifications

• Application: 1963-1987 Chevrolet C10 / GMC C15 (2WD)
• Shock Valving: Single-Adjustable (Proma Star)
• Spring Rate: 850 lb/in
• Spring Length: 10 in.
• Spring I.D.: 2.50 in.
• Shock Extended Length: 14.000 in.
• Shock Collapsed Length: 10.125 in.
• Shock Body: Clear anodized aluminum, twin-tube design
• Control Arm Material: 12-Gauge HSLA Tubular Steel - Black Powder Coat
• Ball Joints: QA1 Performance Ball Joints (1973-87 style)
• Bushings: Low-friction maintenance-free polymer
• Caster Gain (upper + lower together): Up to 7 degrees
• Ride Height Drop: Up to 2 in. standard; up to 5 in. with drop spindles
• Warranty: 1 Year Limited (shocks eligible for Limited Lifetime when registered)

Included Components

• 2x QA1 Proma Star Single-Adjustable Coilover Shocks
• 2x High-Travel 850 lb/in Coilover Springs (silver powder coated)
• 2x Tubular Upper Control Arms with QA1 Ball Joints and Polymer Bushings
• 2x Tubular Lower Control Arms with QA1 Ball Joints and Polymer Bushings
• 2x Upper Shock Mounting Brackets
• 1x Complete Hardware Kit (all coilover hardware, nuts, bolts, fasteners)

Product Description

The QA1 52611-S850 is a complete bolt-in front coilover conversion system for the 1963-1987 Chevrolet C10 and GMC C15 2WD pickup, offering a comprehensive upgrade path for owners who want a properly lowered, properly handling classic truck without the expense or complexity of a full chassis swap or custom front end. The kit replaces the factory coil spring and shock absorber setup with QA1's Proma Star single-adjustable aluminum coilover shocks paired with 850 lb/in high-travel springs, delivering ride height adjustability, improved weight transfer management, and a firmer, more controlled front suspension feel suited to heavier builds, larger wheel and tire packages, and performance-oriented applications.

The included upper and lower tubular control arms - built from 12-gauge HSLA steel and powder coated black - add up to 7 degrees of caster when used together, fixing the negative geometry common in stock C10 front ends and delivering noticeably improved straight-line stability and steering return. QA1 performance ball joints and low-friction polymer bushings are pre-installed on all control arms. The system is compatible with popular drop spindles for additional stance, with a total possible drop of up to 5 inches. Note that spindles must be compatible with 1973-1987 ball joints, factory sway bars are not compatible and must be addressed separately, and 1963-1972 C10 owners will need to upgrade spindles prior to installation.
