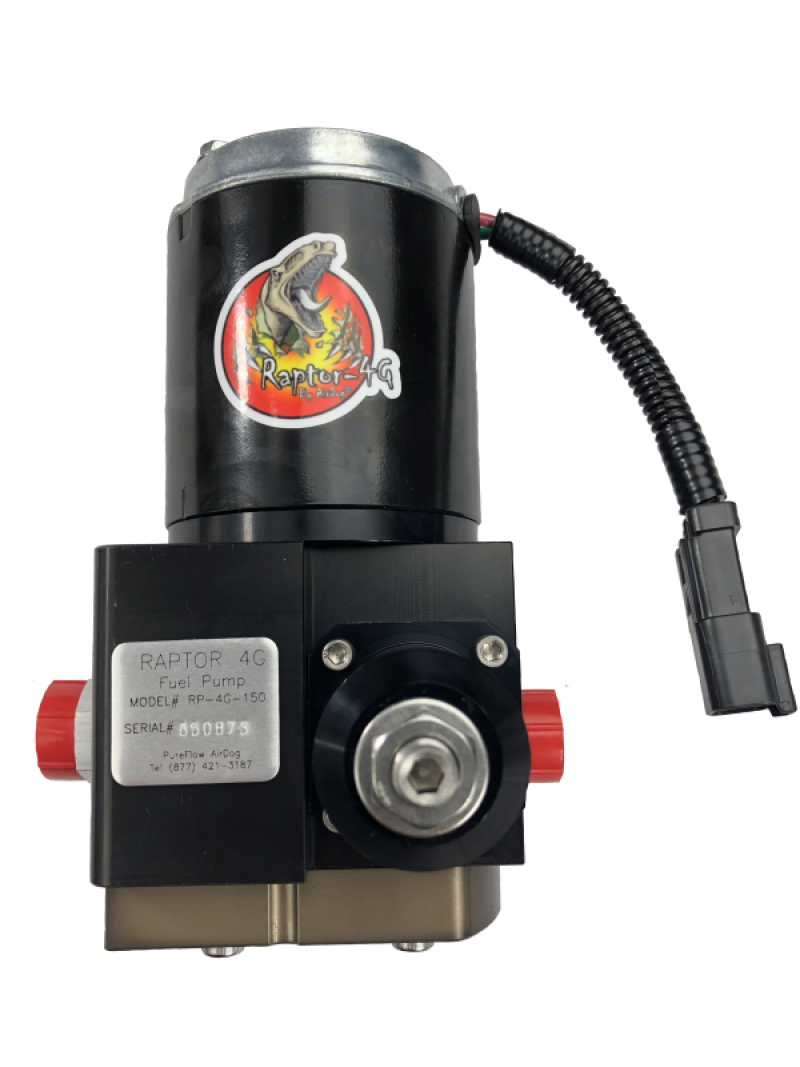

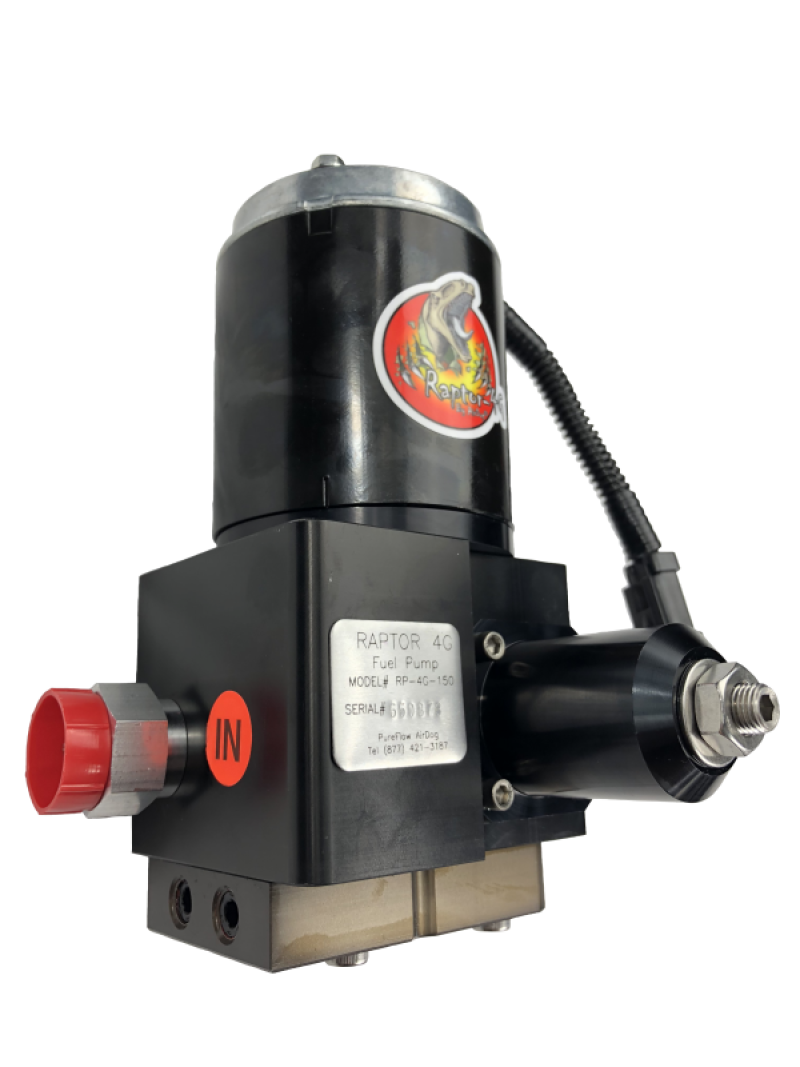

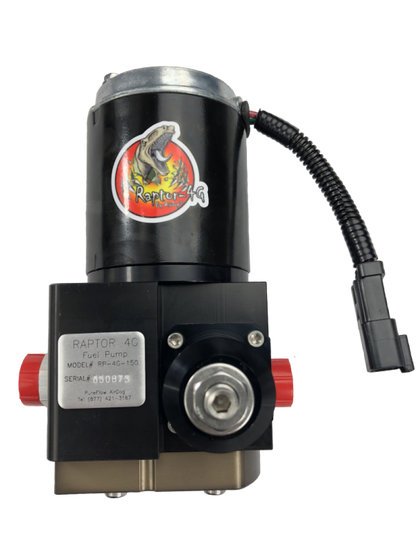

AirDog R1SBU369 Universal 100GPH Raptor Fuel Diesel Lift Pump (Adjustable)

Vehicle Fitment

• Universal fit -- compatible with custom fuel systems on diesel trucks and other applications

Features

• Universal 100 GPH (gallons per hour) fuel lift pump
• Preset to ~8 PSI fuel pressure at the factory
• Adjustable fuel pressure up to ~30 PSI to match system needs
• Raptor-4G gerotor pump design for smooth fuel delivery
• Single-piece heavy-duty pump body for durability
• No return line required for basic lift pump use
• Ideal for retrofit or custom fuel system installations
• Supports increased fuel demand for performance or modified engines

Specifications

• Part Number: R1SBU369
• Flow Rate: 100 GPH
• Pressure: Preset ~8 PSI; adjustable up to ~30 PSI
• Pump Type: Raptor-4G gerotor lift pump
• Fuel Type: Diesel (universal application)
• Inlet Fitting: Requires user-sourced fitting
• Outlet Fitting: 9/16-18 ORB included

Included Components

• 1x AirDog R1SBU369 Universal 100 GPH Raptor Fuel Lift Pump
• 1x Outlet Fitting (9/16-18 ORB)
• 1x Installation Instructions

Product Description

The AirDog R1SBU369 universal 100 GPH Raptor fuel lift pump is a high-flow, adjustable pump designed for custom diesel fuel system applications. Built around a robust Raptor-4G gerotor design, it delivers improved fuel volume and adjustable pressure compared to many stock lift pumps. Factory preset to approximately 8 PSI, the built-in regulator allows adjustment up to around 30 PSI to suit various system requirements and performance setups.

As a universal fuel lift pump, the R1SBU369 can be used in custom installations on diesel trucks and other systems where enhanced fuel supply is desired. It is ideal for setups that demand greater flow for larger injectors, upgraded engines, or modified configurations. The pump includes a standard outlet fitting, while inlet fittings and installation hardware are typically sourced based on the specific application and vehicle setup.
