AirDog R4SBC134 Raptor 4G 100GPH Lift Pump for 2011-2014 GM 6.6L Duramax LML

Vehicle Fitment

• 2011-2014 Chevrolet Silverado 2500HD 6.6L Duramax LML
• 2011-2014 Chevrolet Silverado 3500HD 6.6L Duramax LML
• 2011-2014 GMC Sierra 2500HD 6.6L Duramax LML
• 2011-2014 GMC Sierra 3500HD 6.6L Duramax LML

Fitment Notes

• Engine: 6.6L Duramax LML Diesel V8
• Intended for stock to lightly modified trucks
• Frame-mounted system -- no drilling required
• Connects to OEM fuel module suction fitting and injection pump feed line
• No return line required -- internally regulated system
• Optional 1/2" draw straw kit available separately (901-01-0351-QC)
• CARB E.O. Number: D-595-3

Features

• 4G Technology with 4-bearing motor design and intermediate shaft
• Self-aligning gerotor for lower amp loads and quieter operation
• Built-in adjustable diaphragm regulator preset at 8-10 PSI
• Single-piece pump body for durability
• Solves infamous P0087 and P1093 low fuel rail pressure codes
• Supplies positive fuel pressure to CP4 injection pump
• Supports aftermarket tuners and programmers
• Mounts cleanly to frame jig in front of fuel tank

Specifications

• Part Number: R4SBC134
• UPC: 813094011346
• Series: Raptor 4G (RP-4G-100)
• Flow Rate: 100 GPH
• Operating Pressure: 8-10 PSI (Adjustable)
• Pump Type: Gerotor
• Motor Design: 4-Bearing with Intermediate Shaft
• Fuel Line Size: 1/2"
• Return Line: Not Required
• CARB E.O. Number: D-595-3
• Warranty: Lifetime

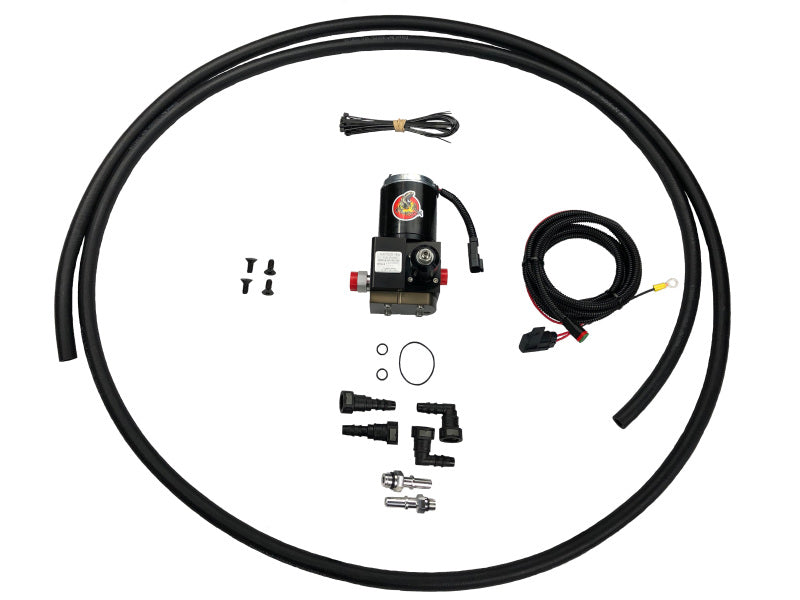

Included Components

• 1x AirDog Raptor 4G Lift Pump
• 1x Relay Control Wiring Harness
• 1/2" Fuel Line
• All Required Fuel Fittings
• Mounting Brackets and Hardware
• Installation Instructions

Product Description

The AirDog R4SBC134 Raptor 4G Lift Pump provides reliable fuel delivery for 2011-2014 GM 6.6L Duramax LML diesel trucks. Factory Duramax pickups rely solely on the CP4 injection pump to pull fuel from the tank, creating excessive wear and triggering low fuel rail pressure codes when running aftermarket tuners. The Raptor 4G supplies constant positive fuel pressure to the injection pump, eliminating P0087 and P1093 codes while supporting stock and lightly modified engines.

Featuring AirDog's 4G technology with a 4-bearing motor design and self-aligning gerotor, this pump delivers quiet, dependable operation with lower amp draw. The built-in adjustable diaphragm regulator is preset at 8-10 PSI and requires no return line, simplifying installation. The complete kit mounts to the frame jig in front of the fuel tank and connects directly to OEM fuel fittings for a clean, no-drill installation. Backed by a lifetime warranty from PureFlow AirDog.
