Prothane 7-242-BL Front Control Arm Bushing Kit 2002-2009 Trailblazer Envoy 4WD

Vehicle Fitment

• 2002-2009 Chevrolet Trailblazer / Trailblazer EXT (LS, LT, LTZ; 4.2L I6, 5.3L V8; 2WD/4WD)
• 2002-2009 GMC Envoy / Envoy XL / Envoy XUV (SLE, SLT, Denali; 4.2L I6, 5.3L V8; 2WD/4WD)
• 2004-2007 Buick Rainier (Base, CXL; 4.2L I6, 5.3L V8; AWD/4WD)
• 2005-2009 Saab 9-7X (4.2i, 5.3i, Aero; 4.2L I6, 5.3L V8, 6.0L V8; AWD)
• 2006-2009 Isuzu Ascender (LS, S; 4.2L I6, 5.3L V8; 4WD)
• 2001-2004 Oldsmobile Bravada (4.2L I6; AWD)

Fitment Notes

• Front position only - covers upper and lower front control arm bushings for both left and right sides
• Without shells - OEM outer metal shells must be reused for both upper and lower control arms
• This is the black graphite-infused polyurethane version - red version available as Prothane 7-242
• Fits both 2WD and 4WD/AWD configurations across all body styles and engines

Features

• Replaces front upper and lower control arm bushings on both sides - complete front end coverage
• Black graphite-infused polyurethane - firmer than OEM rubber, holds alignment geometry under load
• Reduces caster and camber variation caused by worn or deflected rubber bushings
• Grooved bore design holds Prothane Super Grease for quiet, squeak-free operation
• Resists oil, road salt, UV exposure, and heat cycling for long service life
• Application-specific engineering - precision fit into OEM control arm shell locations
• Available in black (7-242-BL) and red (7-242) polyurethane
• Backed by Prothane's lifetime warranty - made in the USA

Specifications

• Material: High-durometer polyurethane (black, graphite-infused)
• Color: Black
• Position: Front - Upper and Lower Control Arms (Left and Right)
• Shell Type: Without shells - OEM outer shells reused
• Drivetrain: 2WD, 4WD, and AWD
• Fitment Type: Direct replacement insert
• UPC: 636169203442
• Warranty: Lifetime (original purchaser)

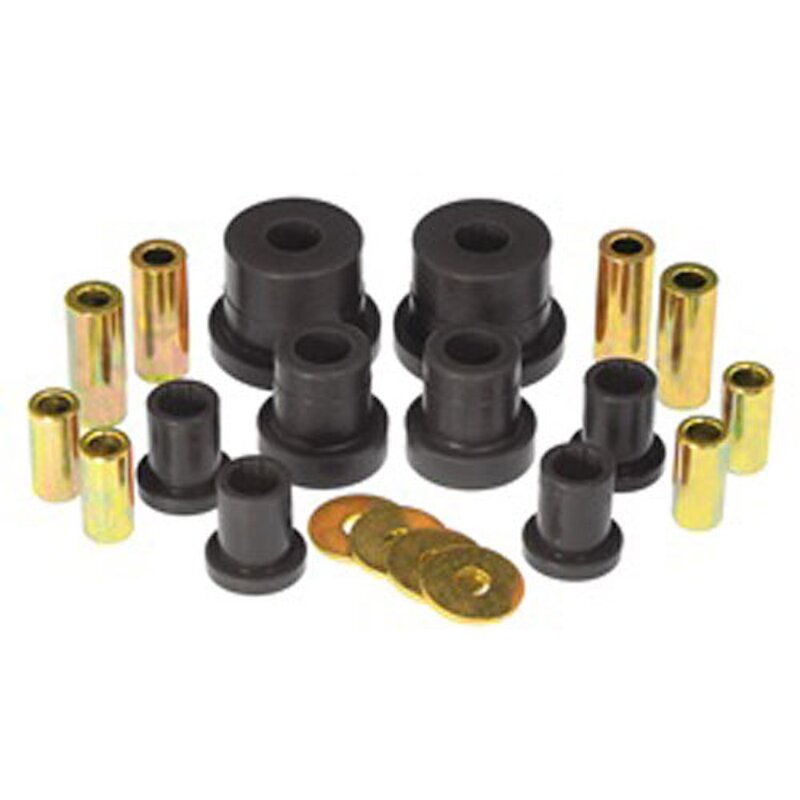

Included Components

• Front Upper Control Arm Polyurethane Bushing Inserts - Left and Right
• Front Lower Control Arm Polyurethane Bushing Inserts - Left and Right
• 1x Prothane Super Grease Pack
• 1x Installation Instructions

Product Description

The Prothane 7-242-BL is a front control arm bushing kit engineered for the 2002-2009 Chevrolet Trailblazer, GMC Envoy, Buick Rainier, Saab 9-7X, Isuzu Ascender, and Oldsmobile Bravada - all sharing the GMT360 platform. It covers both the upper and lower front control arm bushing inserts on both the left and right sides, replacing all four positions in a single kit without requiring replacement of the OEM outer metal shells. This is the correct approach for these vehicles as the shells press into the control arm and are typically reused during a bushing refresh.

Worn OEM rubber at the front control arm positions allows the arm to shift under cornering load, causing caster and camber to drift mid-corner, contributing to tire wear and imprecise steering feel. Prothane's polyurethane holds the control arm in alignment geometry far more consistently than rubber, with improved resistance to the heat, road grime, and UV exposure that these vehicles commonly encounter. Super Grease is included and must be applied generously during installation to prevent squeaking.
