PowerStop K5370 Front Z23 Brake Kit Acura MDX/ZDX/RLX & Honda Pilot

Vehicle Fitment

• 2007-2013 Acura MDX (3.7L V6, FWD & SH-AWD - All trims)
• 2010-2013 Acura ZDX (3.7L V6, SH-AWD - All trims)
• 2016-2020 Acura RLX Sport Hybrid (3.5L V6 Hybrid, SH-AWD - Advance, Sport Hybrid)
• 2009-2015 Honda Pilot (3.5L V6, FWD & AWD - LX, EX, EX-L, Touring)

Fitment Notes

• Front axle kit only - does not include rear rotors or pads; pair with PowerStop K2291 (MDX 2007-2013 rear) for a complete Z23 upgrade on the MDX
• Note that the rear kit for each model is sold separately; K5369 (complete F&R kit) covers the 2007-2013 MDX, 2010-2013 ZDX, and 2009-2011 Pilot with matching rear rotors
• Fits all drivetrain configurations - FWD and AWD/SH-AWD variants are all compatible
• 5-lug bolt pattern (5x114.3mm / 5x4.5 in.)
• No special modifications required - direct bolt-on installation

Features

• Z23 Carbon-Fiber Ceramic pad compound delivers enhanced stopping power and lower dust versus factory pads
• Drilled & slotted vented front rotors maximize heat dissipation and clear gas and debris from the friction surface
• Low-dust formula validated through on-vehicle third-party testing - 30% less dust on average versus OE
• Dual-layer high-temp rubberized shims provide virtually silent braking
• Silver zinc dichromate plated rotors resist rust and corrosion
• G3000 grade iron castings built to strict OE tolerances for crack resistance and durability
• Includes premium stainless-steel installation hardware and high-temp ceramic brake lubricant
• Bolt-on upgrade - no modifications needed

Specifications

• Kit Coverage: Front Only
• Front Rotor Outside Diameter: 12.99 in. (330 mm)
• Rotor Construction: Full Cast Iron - G3000
• Rotor Type: Vented
• Surface Type: Drilled & Slotted
• Rotor Finish: Silver Zinc Dichromate Plated
• Stud/Lug Hole Quantity: 5
• Bolt Circle Diameter: 5x114.3 mm (5x4.5 in.)
• Pad Compound: Z23 Carbon-Fiber Ceramic
• Pad Shims Included: Yes - Dual-Layer Rubberized

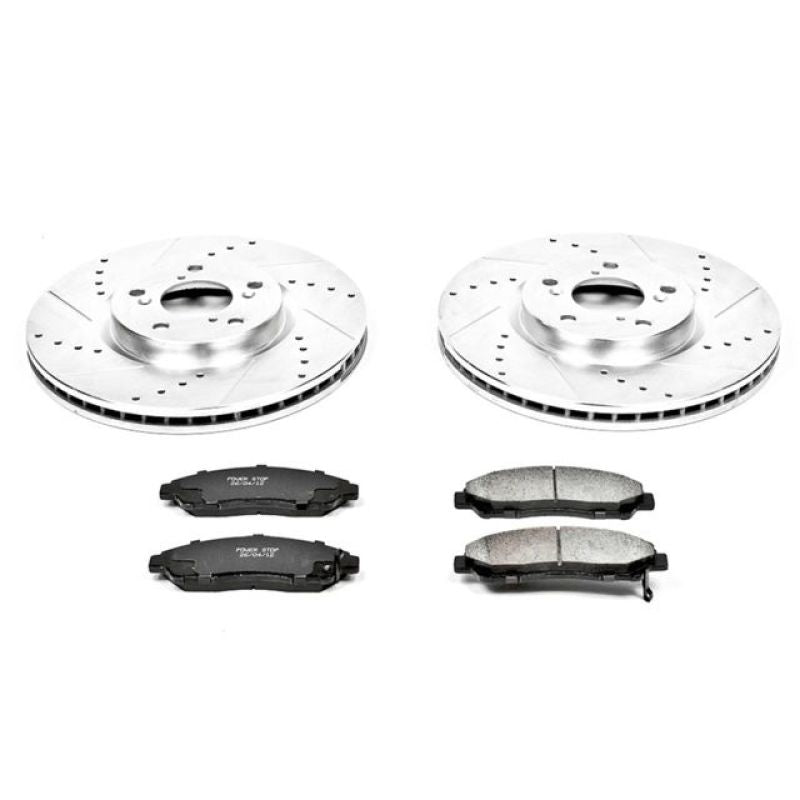

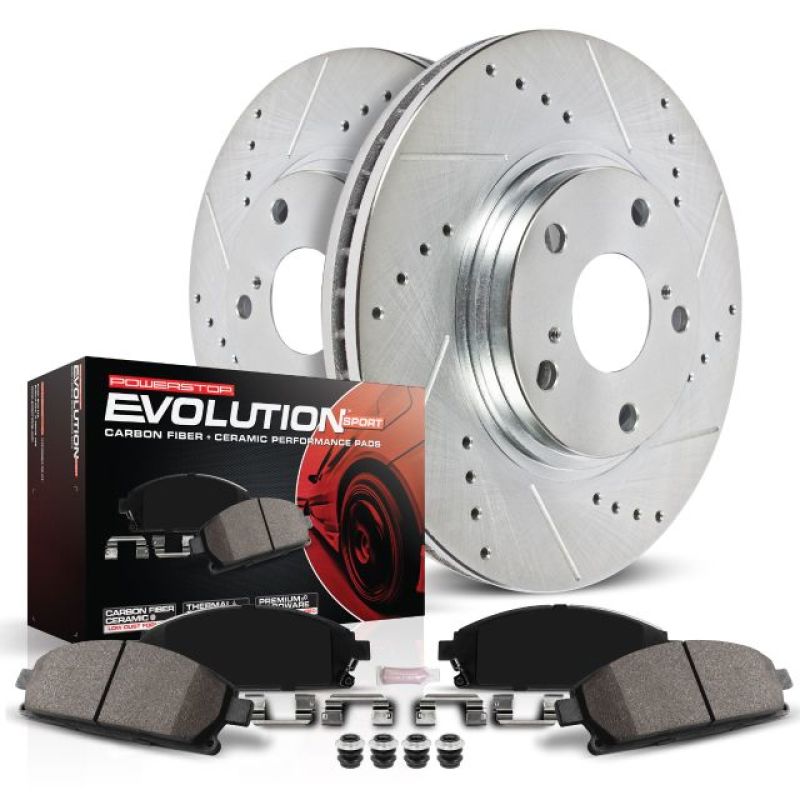

Included Components

• 2x Front Drilled & Slotted Zinc-Plated Brake Rotors
• 1x Front Z23 Carbon-Fiber Ceramic Brake Pad Set (with rubberized shims & hardware)
• 1x Stainless-Steel Installation Hardware Kit
• 1x High-Temperature Ceramic Brake Lubricant

Product Description

The PowerStop K5370 Z23 Evolution Sport Front Brake Kit is a front brake upgrade for the 2007-2013 Acura MDX, 2010-2013 Acura ZDX, 2016-2020 Acura RLX Sport Hybrid, and the 2009-2015 Honda Pilot. The Z23 Carbon-Fiber Ceramic pads deliver improved stopping power and significantly less dust than factory pads, while the drilled and slotted rotors keep front brake temperatures in check across all the varied use cases these capable SUVs see - daily commuting, mountain driving, towing, and loaded family trips.

G3000 iron rotors are precision-cast to OE tolerances for a direct bolt-on fit at the front axle with no modifications required. All drivetrain configurations - FWD and AWD/SH-AWD - are compatible. For a complete front and rear Z23 upgrade on the MDX (2007-2013), ZDX (2010-2013), or Pilot (2009-2011), see the complete K5369 kit. For a Z26 Street Warrior front upgrade on this platform, see K5370-26.
