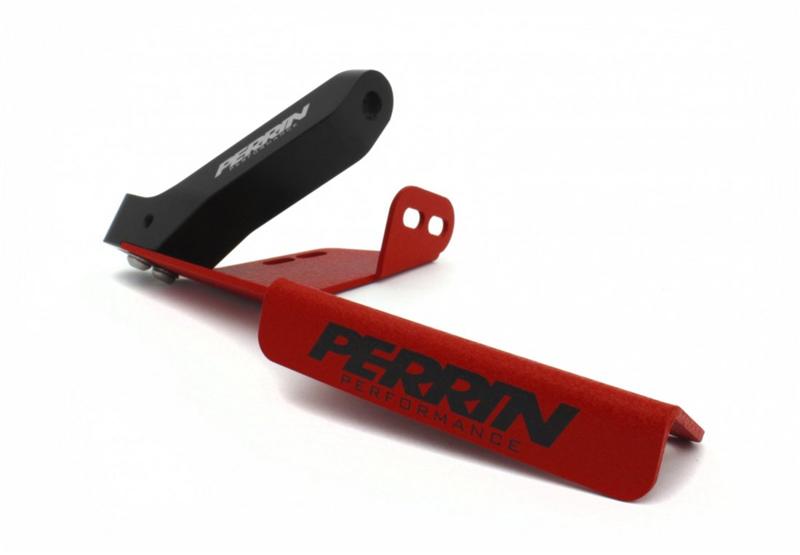

Perrin PSP-BRK-402RD Master Cylinder Brace Red for 2008-2014 Subaru WRX/STI

Vehicle Fitment

• 2008-2014 Subaru WRX (Sedan & Hatchback, 2.5L H4 Turbo)
• 2008-2014 Subaru WRX STI (Sedan & Hatchback, 2.5L H4 Turbo)
• 2007-2009 Subaru Legacy (2.5L H4)
• 2007-2009 Subaru Legacy GT (2.5L H4 Turbo)
• 2007-2009 Subaru Outback XT (2.5L H4 Turbo)

Fitment Notes

• Not compatible with Right Hand Drive (RHD) vehicles
• PSP-BRK-402RD is the WRX-specific fitment - for the 2008-2014 STI-specific brace, see PSP-BRK-401RD
• Estimated installation time is approximately 2 hours; intermediate mechanical skill recommended
• Turning the front wheels to the right and lifting the vehicle is recommended to ease access during installation

Features

• Eliminates firewall flex under braking by bridging the master cylinder, firewall, and shock tower at three triangulated mounting points
• CNC-machined 6061-T6 billet aluminum main body delivers maximum stiffness at minimal weight
• CNC-formed steel bracket section adds extra structural support over all-aluminum or welded steel competing designs
• Triangulated three-point mounting reduces flex in multiple planes simultaneously for superior rigidity
• Includes an adjustable preload screw to apply tension to the master cylinder for a fully customized, rattle-free fit
• Aluminum portion features anodized black finish with laser-engraved PERRIN logo
• Steel section finished in wrinkle red powder coat to complement other PERRIN engine bay components
• Stainless steel hardware throughout for long-term corrosion resistance

Specifications

• Part Number: PSP-BRK-402RD
• Color: Wrinkle Red (Steel Section) / Anodized Black (Aluminum Section)
• Main Body Material: CNC-Machined 6061-T6 Billet Aluminum
• Bracket Material: CNC-Formed Steel
• Hardware: Stainless Steel
• Mounting Points: 3-Point Triangulated
• RHD Compatible: No
• Warranty: 5 Years (original purchaser)

Included Components

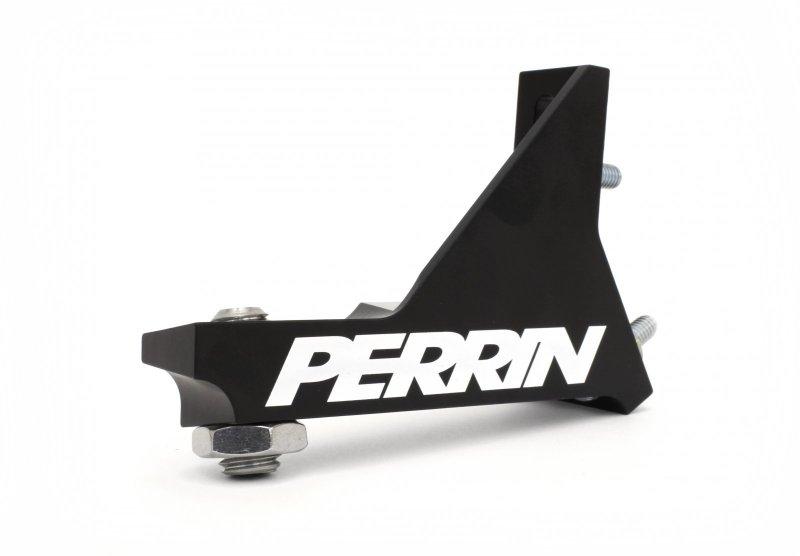

• 1x PERRIN Master Cylinder Brace (Aluminum)
• 1x PERRIN Master Cylinder Bracket (Steel)
• 1x M12 Socket Set Cap & Jam Nut
• 1x Complete Stainless Steel Hardware Kit (M6 & M8 fasteners, washers, zip ties)
• 1x Bracket for Cable Tie-Down
• 1x M6 & M4 Short Arm Hex Keys

Product Description

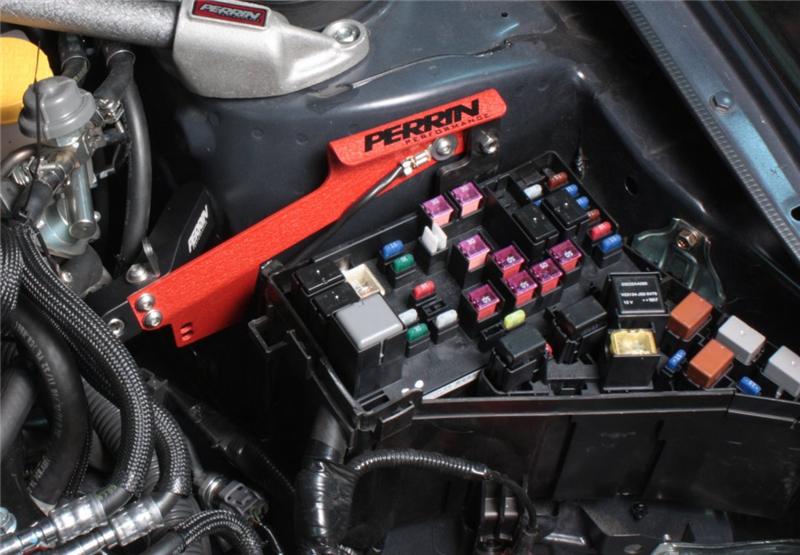

The PERRIN PSP-BRK-402RD Master Cylinder Brace is a precision-engineered firewall stiffener designed for the 2008-2014 Subaru WRX and Legacy/Outback XT sharing the same chassis. The thin sheet metal firewall on these Subarus flexes noticeably under hard braking, absorbing pedal input and giving the driver a spongy, inconsistent brake feel. The PERRIN brace bridges the master cylinder, firewall, and shock tower with three triangulated mounting points - eliminating flex in multiple planes simultaneously and restoring a firm, direct pedal feel that can be noticed immediately after installation, even during routine street braking.

Built from CNC-machined 6061-T6 billet aluminum paired with a CNC-formed steel bracket - rather than welded steel tubing - the two-piece construction keeps the brace exceptionally stiff and light. An adjustable preload screw allows the driver to apply tension directly to the master cylinder for a custom, rattle-free fit. The red wrinkle powder coat on the steel section and anodized black aluminum with laser-engraved PERRIN logo make it a visual upgrade as well. Backed by PERRIN's 5-year warranty for the original purchaser.
