Perrin PSP-EXT-001 Turbo Heat Shield for 2002-2021 Subaru WRX/STI/Legacy GT

Vehicle Fitment

• 2002-2014 Subaru WRX (EJ turbo)
• 2004-2021 Subaru WRX STI (EJ257)
• 2004-2013 Subaru Forester XT (EJ turbo)
• 2005-2009 Subaru Legacy GT (EJ255 turbo)
• 2005-2009 Subaru Outback XT (EJ255 turbo)

Fitment Notes

• Stock turbo location EJ-series engines only
• Compatible with aftermarket stock-location replacement turbos
• Backside cut to clear all aftermarket downpipes
• Does NOT fit right-hand drive vehicles (contacts brake master cylinder booster)
• Does NOT fit 2015+ WRX (FA20DIT -- different turbo location)
• If OEM mounting brackets are missing, order: 44021AA014 and 14427AA022
• Stainless steel hardware included

Features

• Perrin Performance turbo heat shield -- protects TMIC from radiant turbo heat
• CNC formed from 304 stainless steel
• Adjustable front-to-back for maximum turbo coverage
• Covers top of downpipe, sides of turbo, and fits around wastegate arm
• More coverage than OEM or competitor shields
• Spot welded construction -- no rivets, no rattles
• Spot welds pass Perrin "Nugget Test" for verified penetration
• Brushed stainless finish

Specifications

• Part Number: PSP-EXT-001
• Brand: Perrin Performance
• Type: Turbo heat shield
• Material: 304 stainless steel
• Finish: Brushed stainless
• Construction: CNC formed, spot welded
• Adjustable: Yes (front-to-back)
• Aftermarket Downpipe Compatible: Yes
• RHD Compatible: No
• Warranty: 5-year (60 months from date of purchase)

Included Components

• 1x Perrin turbo heat shield (PSP-EXT-001)
• Stainless steel mounting hardware

Product Description

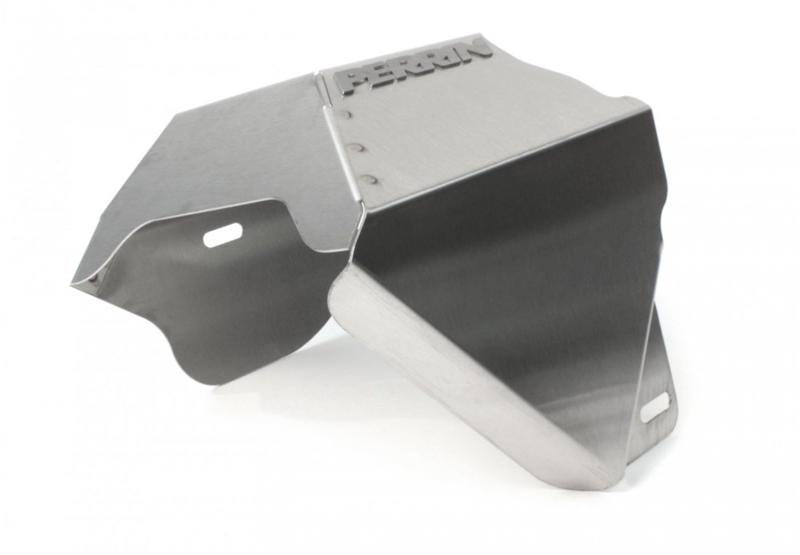

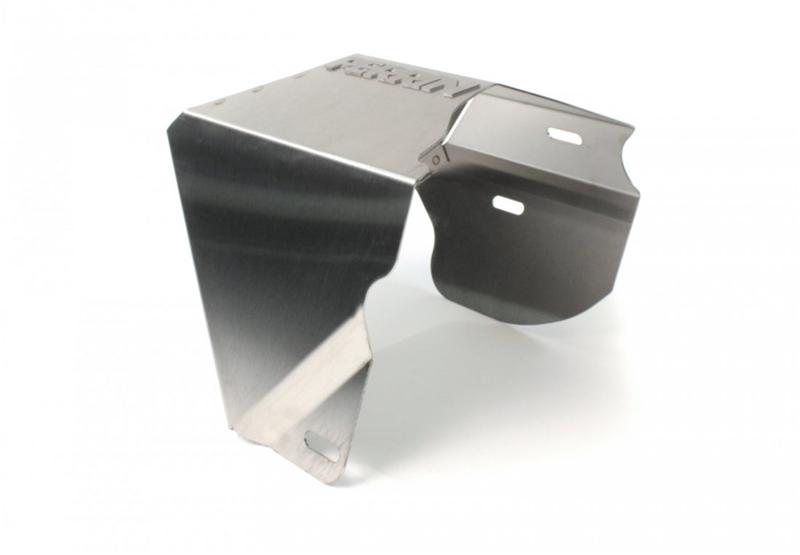

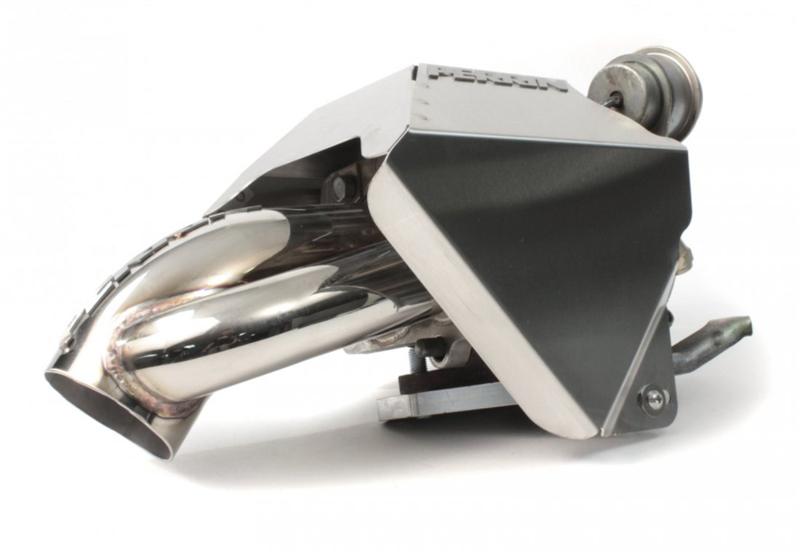

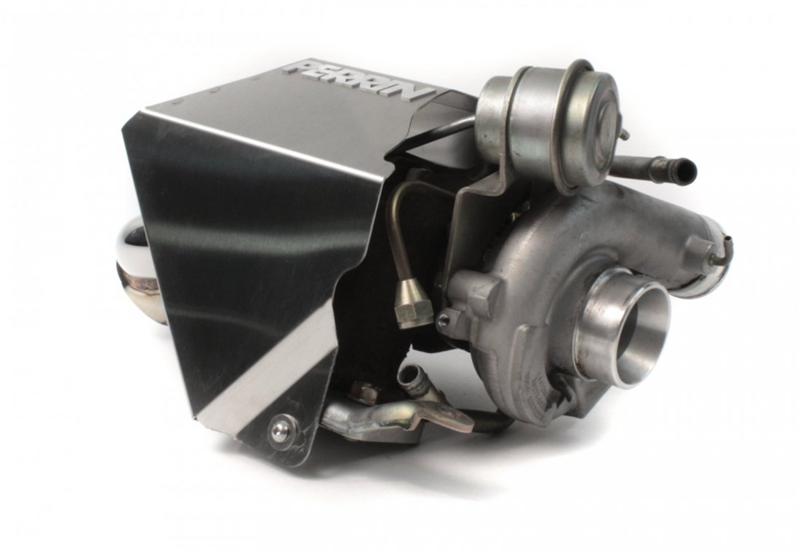

The Perrin PSP-EXT-001 is a turbo heat shield for EJ-series turbocharged Subaru models including the 2002-2014 WRX, 2004-2021 STI, 2004-2013 Forester XT, and 2005-2009 Legacy GT/Outback XT. CNC formed from 304 stainless steel with a brushed finish, this shield protects the top-mount intercooler from radiant heat off the turbocharger. It covers more of the turbo than the OEM shield or competing products -- wrapping over the top of the downpipe, sides of the turbo housing, and fitting snugly around the wastegate arm to keep heat contained below.

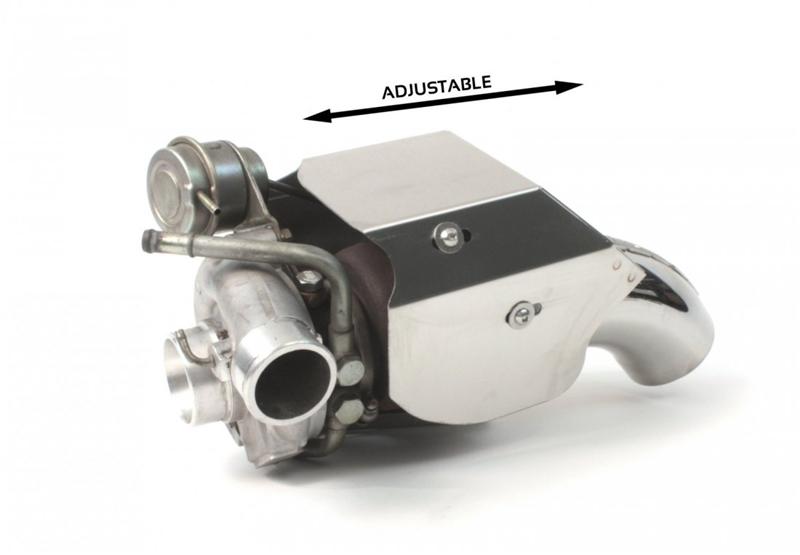

Adjustable front-to-back to allow maximum turbo coverage across different applications and turbo setups. The backside is cut to clear all aftermarket downpipes, making it ideal for builds where the OEM heat shield had to be cut or removed during downpipe installation. Spot welded construction eliminates the rattles common with riveted shields -- every weld passes Perrin's "Nugget Test" to verify full metal penetration. Does not fit right-hand drive vehicles. If the vehicle is missing OEM mounting brackets, Subaru part numbers 44021AA014 (upper downpipe/turbo shield bracket) and 14427AA022 (up-pipe support bracket) are required. Backed by Perrin Performance's 5-year warranty.
