Perrin PSP-ITR-400BK Standard FMIC Core Black 28x9.25x3.5 WRX 2002-2025 STI

Vehicle Fitment

• 2002-2025 Subaru WRX (all EJ and FA engine variants, AWD)
• 2004-2021 Subaru WRX STI (EJ257, AWD)

Fitment Notes

• This is the FMIC core only - does NOT include bumper beam, boost tubes, silicone couplers, or piping. Boost tubes and piping must be purchased separately for a complete FMIC installation.
• Designed as a universal replacement core compatible across all generations of the Perrin FMIC system for WRX and STI.
• Fog lights cannot be retained with this intercooler - removal required.
• Trimming of front bumper plastic is required for installation.
• Not compatible with a stock airbox - an aftermarket short ram or cold air intake is required.
• Relocating a hard fuel line is required - not recommended for beginner mechanics.
• Off-road / race use only. Not CARB legal. Not street legal in California.
• Also available in Silver (PSP-ITR-400SL).

Features

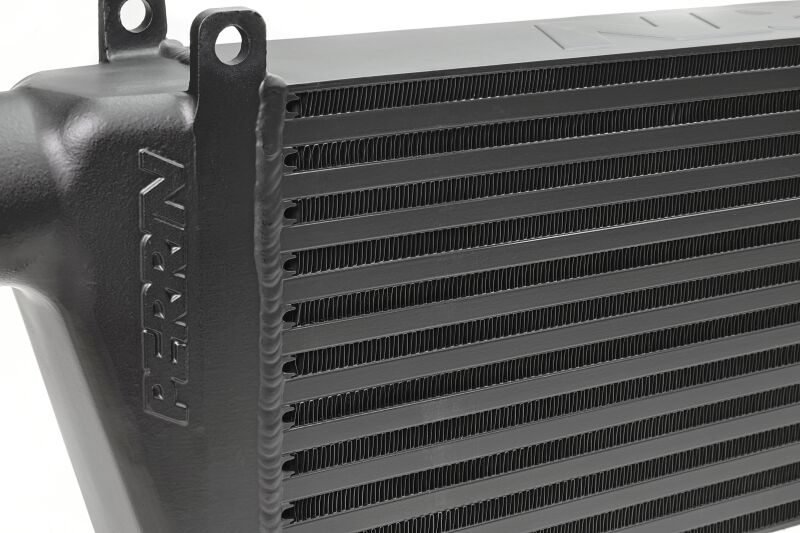

• 3/8" bar and plate core construction - significantly more durable than OEM tube-and-fin design, resists damage from road debris
• Massive 28" x 9.25" x 3.5" core with 906.5 cubic inch volume for maximum cooling capacity and minimal pressure drop
• Cast aluminum end tanks designed to evenly disperse charged air across the entire core - 90° corners eliminated to reduce turbulence
• End tanks incorporate integrated mounting tabs to secure the core to the bumper beam
• Black texture powder coat finish for long-term corrosion protection
• Every core pressure tested to 50 psi to guarantee zero boost leaks out of the box
• Rated for 500-800 hp applications - supports all bolt-on and built engine setups
• No ECU tune required for safe operation - tuning recommended for maximum power gains

Specifications

• Part Number: PSP-ITR-400BK
• Color: Black texture powder coat
• Core Style: 3/8" Bar and Plate
• Core Dimensions: 28" (L) x 9.25" (H) x 3.5" (D)
• Core Volume: 906.5 cubic inches
• End Tank Material: Cast aluminum
• Pressure Tested: 50 psi
• HP Rating: 500-800 whp
• Tune Required: No (recommended for maximum gains)
• Emissions: Off-road use only - not street legal in California
• Warranty: 5-year Perrin limited warranty
• Made in USA
• Brand: Perrin Performance

Included Components

• 1x Perrin FMIC Core - Black (28" x 9.25" x 3.5")
• 1x Perrin logo stencil

Product Description

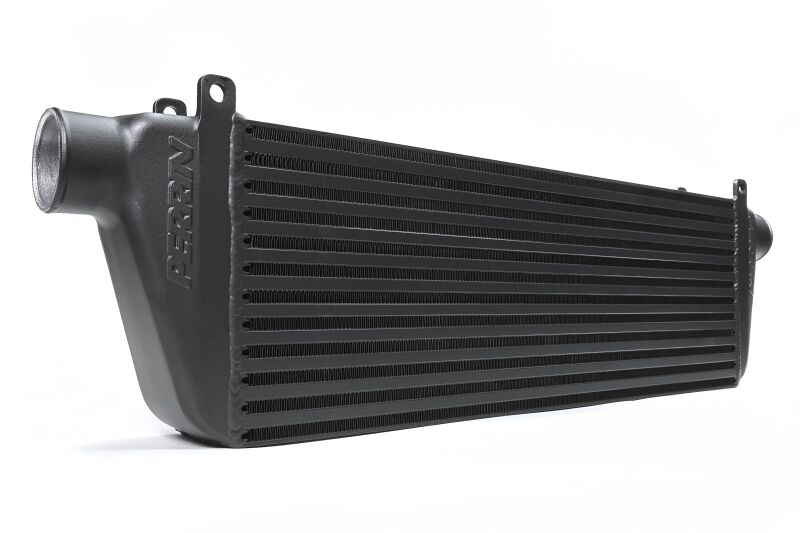

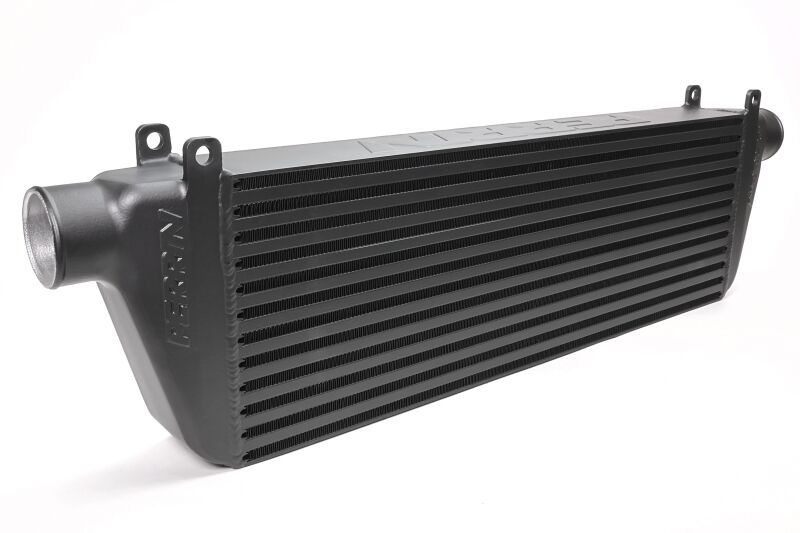

The Perrin PSP-ITR-400BK is the standard-size front mount intercooler core for 2002-2025 Subaru WRX and 2004-2021 WRX STI, sold as a standalone core replacement for use within the Perrin FMIC system. The factory Subaru top-mount intercooler is a tube-and-fin design built for ease of manufacture, not performance - it is prone to heat soak under sustained boost and limits power potential on modified builds. The Perrin 3/8" bar-and-plate core replaces it with a 28" x 9.25" x 3.5" aluminum unit offering 906.5 cubic inches of cooling volume, drastically reducing intake air temperatures and delivering dyno-proven gains of +10-20+ wheel horsepower.

Cast aluminum end tanks smoothly disperse charged air across the full width of the core without turbulence-inducing 90° corners, and every unit is pressure tested to 50 psi before leaving the factory - no leaks guaranteed. The 3/8" bar-and-plate construction is rated for 500-800 hp applications and handles road debris far better than tube-and-fin alternatives. Boost tubes and bumper beam must be purchased separately to complete the installation. Off-road / race use only - not street legal in California. Backed by Perrin's 5-year limited warranty and made in the USA.
