Pedders PED-160083 eXtreme XA Coilover Kit for Subaru BRZ/GR86/Scion FR-S RWD

Vehicle Fitment

• 2013-2016 Scion FR-S (ZN6, 2.0L H4, RWD)
• 2013-2020 Subaru BRZ (ZC6, 2.0L H4, RWD)
• 2022-2024 Subaru BRZ (ZD8, 2.4L H4, RWD)
• 2017-2020 Toyota 86 (ZN6, 2.0L H4, RWD)
• 2022-2025 Toyota GR86 (ZN8, 2.4L H4, RWD)

Fitment Notes

• 2021 model year not listed - transitional year between ZC6/ZN6 and ZD8/ZN8 generations; verify compatibility before ordering
• All fitments are RWD only

Features

• 30-position adjustable damping via top-mounted adjuster knob for quick street or track tuning
• Gas pressurized mono-tube design for consistent, fade-resistant damping performance
• Fully threaded coilover body allows ride height adjustment without altering spring preload
• Alloy steel motorsport coil springs individually tuned for the ZC6/ZN6 and ZD8/ZN8 platforms
• Factory-style bracketry for direct bolt-on installation with no modifications required
• Height and damping adjustable independently for precise setup at any ride level
• Built to Pedders' motorsport quality standards with over 70 years of suspension engineering
• Suited for daily street driving through to weekend track day use

Specifications

• Front Spring Rate: 6 kg/mm
• Rear Spring Rate: 5 kg/mm
• Damper Adjustment: 30 Positions (Bump and Rebound)
• Coilover Body: Fully Threaded Mono-Tube
• Gas Pressurized: Yes
• Position: Front and Rear
• Drivetrain: RWD

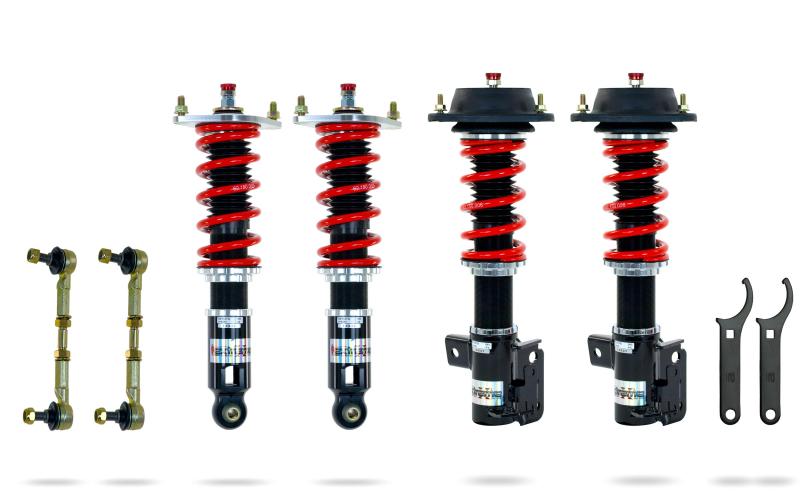

Included Components

• 2x Front eXtreme XA Mono-Tube Coilover Assemblies
• 2x Rear eXtreme XA Mono-Tube Coilover Assemblies
• 4x Alloy Steel Motorsport Coil Springs (platform-tuned rates)
• Factory-style mounting bracketry hardware

Product Description

The Pedders PED-160083 eXtreme XA Coilover Kit delivers a fully adjustable performance suspension upgrade for the Scion FR-S, Subaru BRZ, Toyota 86, and Toyota GR86. Built around a fully threaded mono-tube body, the kit allows independent ride height and damping adjustment - letting drivers dial in their preferred setup without altering spring preload. The 30-position damping adjuster located at the top of each shock makes fine-tuning fast and accessible, whether switching between a comfortable daily commute and an aggressive track configuration.

Alloy steel motorsport coil springs are individually rated at 6 kg/mm front and 5 kg/mm rear, calibrated specifically for the lightweight ZC6/ZN6 and ZD8/ZN8 platforms. Gas pressurization ensures consistent damping performance across varying road conditions and extended use. Factory-style bracketry allows for straightforward bolt-on fitment with no cutting or modification. This kit is an ideal upgrade for FR-S, BRZ, 86, and GR86 owners seeking a meaningful improvement in handling precision and body control over the stock suspension setup.
