Pedders PED-161199 eXtreme XA Coilover Plus Kit MagneRide for 15-23 Ford Mustang

Vehicle Fitment

• 2015-2023 Ford Mustang EcoBoost (2.3L I4, MagneRide equipped)
• 2015-2023 Ford Mustang EcoBoost Premium (2.3L I4, MagneRide equipped)
• 2015-2023 Ford Mustang GT (5.0L V8, MagneRide equipped)
• 2015-2023 Ford Mustang GT Premium (5.0L V8, MagneRide equipped)
• 2015 Ford Mustang GT 50 Years Limited Edition (5.0L V8, MagneRide equipped)
• 2015-2017 Ford Mustang V6 (3.7L V6, MagneRide equipped)
• 2019-2020 Ford Mustang Bullitt (5.0L V8, MagneRide equipped)
• 2021-2023 Ford Mustang Mach 1 (5.0L V8, MagneRide equipped)

Fitment Notes

• For MagneRide (Adaptive Suspension) equipped vehicles ONLY - does not fit standard non-MagneRide S550 Mustangs (see PED-160099 for non-MagneRide fitment).
• Requires an electric MagneRide deletion kit - not included with this kit.
• Strut tower holes may need to be widened to achieve full camber adjustment range.
• 2018 Ford Mustang is not listed as a confirmed fitment - verify MagneRide configuration before ordering.
• Does not fit Shelby GT350, GT350R, GT500, or any non-S550 Mustang generation.

Features

• 30-position adjustable rebound and compression damping via top-mounted adjuster knob
• Fully threaded monotube damper bodies allow ride height adjustment without affecting spring preload or travel
• Integrated front adjustable camber plates (PED-581095) included for precise alignment tuning
• Roller bearing upper spring seats (PED-5044) deliver smooth steering response and improved return-to-center feel
• Gas-pressurized monotube design for consistent damping performance under hard driving conditions
• Alloy steel motorsport coil springs rated for street and track use
• Factory-style bracketry ensures direct bolt-on installation with no modifications required to the chassis
• Height adjustable 1-3 inches below stock without altering bump or droop travel

Specifications

• Part Number: PED-161199
• Coilover Position: Front and Rear
• Internal Design: Monotube
• Damping Adjustment: 30 positions (rebound and compression)
• Front Spring Rate: 6 kg/mm (336 lbs/in)
• Rear Spring Rate: 14 kg/mm (784 lbs/in)
• Ride Height Drop: 1-3 inches below stock
• Shock Body Finish: Black powdercoated
• Spring Finish: Red powdercoated alloy steel
• Bushing Material: Polyurethane
• Gas Charged: Yes
• Welding Required: No
• Warranty: 24 months / 24,000 miles
• UPC: 9341150084943

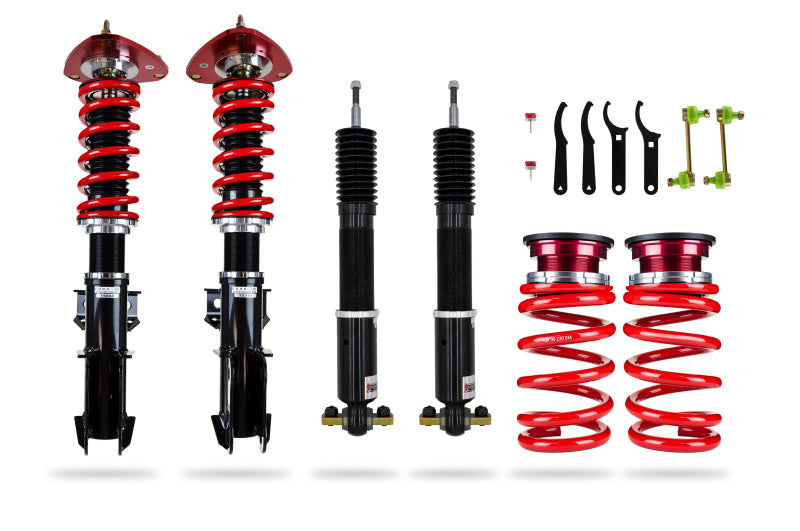

Included Components

• 2x Front eXtreme XA Monotube Coilover Assemblies (preassembled)
• 2x Rear eXtreme XA Monotube Coilover Assemblies (preassembled)
• 2x Front Adjustable Camber Plates (PED-581095)
• 2x Upper Roller Bearing Spring Seats (PED-5044)

Product Description

The Pedders PED-161199 eXtreme XA Coilover Plus Kit is a purpose-built suspension upgrade for 2015-2023 Ford Mustang S550 models equipped with the factory MagneRide adaptive suspension system. The kit replaces the OEM adaptive dampers with four fully adjustable gas-pressurized monotube coilovers, each offering 30 positions of damping adjustment to dial in ride quality for street cruising or track day performance. Ride height can be lowered 1 to 3 inches below stock by adjusting the fully threaded damper bodies and lower mounts - all without disturbing spring preload or bump/droop travel.

The Plus Kit adds factory-ready front adjustable camber plates and roller bearing upper spring seats, providing precise alignment tuning and noticeably improved steering feel straight out of the box. Note that this kit requires a MagneRide deletion module (sold separately) to function correctly, and strut tower holes may need widening for full camber range. It is not compatible with non-MagneRide S550 Mustangs - see PED-160099 for that application.
