Pedders PED-2589 SportsRyder Rear Drag Coil Spring FE2 Height for 2004-2006 GTO

Vehicle Fitment

• 2004-2006 Pontiac GTO (5.7L V8 LS1, RWD)
• 2005-2006 Pontiac GTO (6.0L V8 LS2, RWD)

Fitment Notes

• Rear position only - 2 springs required per vehicle (sold individually).
• Designed specifically for drag/strip use - raises rear ride height to the FE2 suspension specification to improve weight transfer and launch performance.
• Not a lowering spring - this spring raises the rear of the vehicle slightly above standard height for drag racing applications.
• For front spring replacements, see PED-2151L (left) and PED-2151R (right).
• For heavy-duty X-Drag application, see PED-7843.

Features

• Hot-wound construction for optimal durability and consistent coil spacing
• CNC-wound wire quenched in a moving oil bath for uniform hardness and spring integrity
• Shot-peened and scragged to permanently set ride height and eliminate settling
• Verified within +/-1mm of specified ride height at loaded specification
• Progressive spring rate design for improved weight transfer and rear squat during hard launches
• Built to ISO 9001 standards with a height tolerance of +/-2mm at loaded height
• Red powdercoated finish for corrosion resistance and a performance appearance
• Raises rear to FE2 suspension height - purpose-engineered for drag strip performance

Specifications

• Part Number: PED-2589
• UPC: 9341150025347
• Spring Position: Rear
• Spring Type: Coil
• Ride Height: FE2 Drag Height (raised above stock)
• Spring Rate: Progressive
• Finish: Red powdercoated
• Height Tolerance: +/-2mm at loaded height (ISO 9001)
• Bushings Included: No
• Quantity: Sold individually (2 required per vehicle)
• Brand: Pedders Suspension

Included Components

• 1x Pedders SportsRyder Rear Coil Spring - FE2 Drag Height

Product Description

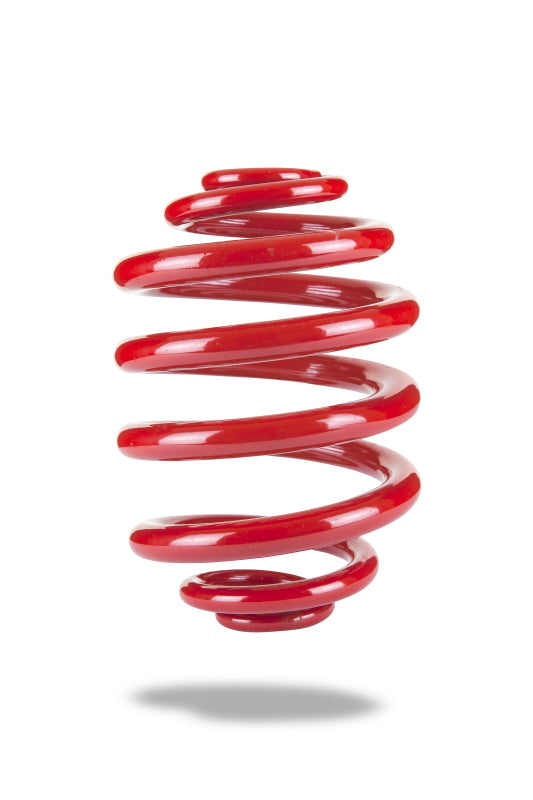

The Pedders PED-2589 SportsRyder Rear Coil Spring is a purpose-built drag-spec replacement spring for the 2004-2006 Pontiac GTO. Unlike lowering springs, this spring is engineered to raise the rear to the FE2 suspension height, promoting optimal rear squat and weight transfer during hard launches. The progressive spring rate delivers a firm initial feel that stiffens progressively under load - exactly what's needed when leaving the line hard on a drag strip.

Each spring is CNC-wound, oil bath quenched, shot-peened, and scragged to permanently set ride height, eliminating post-install settling. Built to ISO 9001 standards with a height tolerance of +/-2mm at loaded specification, these are a direct drop-in replacement requiring no modifications. Two springs are required per vehicle and are sold individually.
