OS Giken NS111-HA Super Lock LSD for 2003-05 Nissan 350Z VQ35DE MT

Vehicle Fitment

• 2003-2006 Nissan 350Z Base (Z33, VQ35DE 3.5L V6, RWD, Manual Transmission)
• 2003-2005 Nissan 350Z Performance (Z33, VQ35DE 3.5L V6, RWD, Manual Transmission)
• 2003-2006 Nissan 350Z Track (Z33, VQ35DE 3.5L V6, RWD, Manual Transmission)
• 2003-2009 Nissan 350Z Enthusiast (Z33, VQ35DE/VQ35HR 3.5L V6, RWD, Manual Transmission)
• 2003-2009 Nissan 350Z Touring (Z33, VQ35DE/VQ35HR 3.5L V6, RWD, Manual Transmission)
• 2005 Nissan 350Z 35th Anniversary Edition (Z33, VQ35DE 3.5L V6, RWD, Manual Transmission)
• 2005-2009 Nissan 350Z Grand Touring (Z33, VQ35DE/VQ35HR 3.5L V6, RWD, Manual Transmission)
• 2007-2008 Nissan 350Z Nismo (Z33, VQ35HR 3.5L V6, RWD, Manual Transmission)
• 2009-2017 Nissan 370Z Base (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2010 Nissan 370Z 40th Anniversary Edition (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2010-2017 Nissan 370Z Nismo (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2010-2017 Nissan 370Z Touring (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2015-2017 Nissan 370Z Nismo Tech (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2015-2017 Nissan 370Z Sport (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2015-2017 Nissan 370Z Sport Tech (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)
• 2015-2017 Nissan 370Z Touring Sport (Z34, VQ37VHR 3.7L V6, RWD, Manual Transmission)

Fitment Notes

• NS111-HA is an OS Giken Super Lock Limited Slip Differential (LSD) designed to replace the OEM VLSD in compatible Nissan applications.
• Direct-fit configuration is for Z33 350Z applications using the flat-tip stub-axle configuration before the applicable model change.
• Later Z33 350Z applications require replacement of the RH output shaft with a second LH-style shaft; installation requires 2x Nissan 38220-AR011 output shafts.
• Z34 370Z applications require replacement of the RH output shaft with a second LH-style shaft; applicable Nissan references are 38220-1NC1B/38220-JK01B.
• Manual-transmission applications only.
• Automatic-transmission applications are excluded.
• RWD configuration only.
• The LSD replaces the OEM viscous limited-slip differential where applicable.
• Do not use NS111-HA based solely on engine displacement; the differential, axle-stub, transmission, and side-flange configuration must match.

Features

• OS Giken Super Lock Limited Slip Differential.
• Patented pressure-ring design provides smooth, progressive locking action.
• Spline-through-side-gear architecture allows increased clutch-plate capacity.
• Up to twice as many friction plates as many conventional LSD designs.
• Capable of progressive locking through to 100% lock.
• LSD case is machined from a single billet for dimensional uniformity.
• High-grade steel-alloy components provide high strength and durability.
• Gears are raw-forged for increased structural strength.
• Clutch discs are precision-machined on both sides to minimize warpage.
• All major components receive chemical heat treatment for durability.
• Low standard preload provides smooth operation while retaining full locking capability.
• Locking characteristics can be tuned through compatible pressure-ring and spring configurations.

Specifications

• Brand: OS Giken
• Part Number: NS111-HA
• Product Type: Super Lock Limited Slip Differential
• Differential Type: Clutch-Type LSD
• Application: Nissan Z33/Z34 350Z/370Z
• Drive Type: RWD
• Transmission: Manual
• 350Z Engine Applications: 3.5L V6 VQ35DE/VQ35HR
• 370Z Engine Application: 3.7L V6 VQ37VHR
• Ramp Angles: 25/38 degrees
• Ramp Configuration: 1.5-Way
• Lock Timing: 336
• Total Friction Plates: 20
• Preload Specification: 12S
• Replacement Function: OEM VLSD Replacement
• Installation Position: Rear Differential
• Quantity: 1x Super Lock LSD

Included Components

• 1x OS Giken NS111-HA Super Lock LSD

Product Description

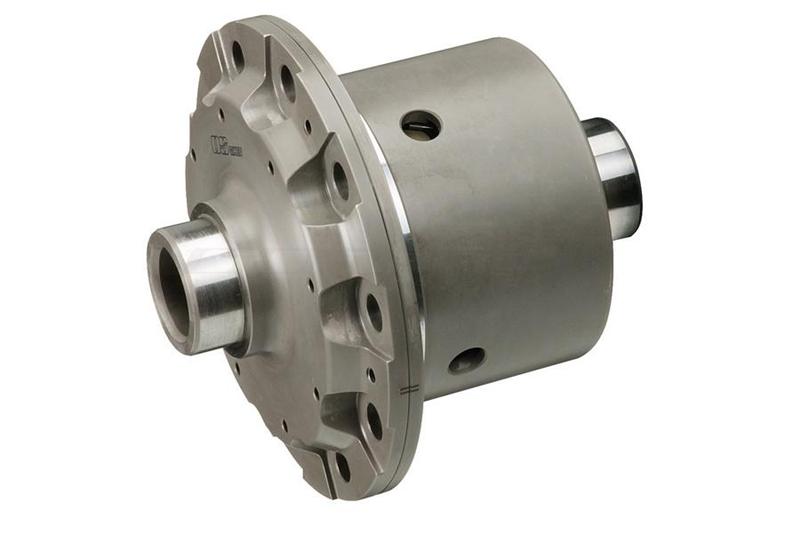

The OS Giken NS111-HA Super Lock LSD is a high-performance clutch-type limited-slip differential designed for compatible manual-transmission Nissan 350Z and 370Z applications. It replaces the OEM viscous limited-slip differential and uses OS Giken's patented pressure-ring architecture to provide smooth, progressive torque transfer while retaining the ability to achieve full locking under demanding conditions.

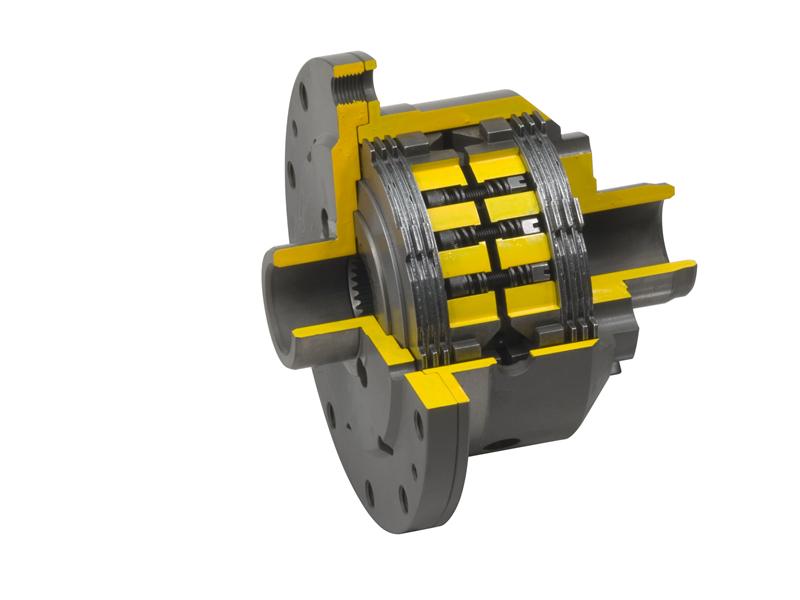

The differential uses a spline-through-side-gear design that permits a high friction-plate count, while the billet-machined case, forged gears, chemically heat-treated components, and precision-machined clutch discs are engineered for durability. The standard configuration uses 25/38-degree ramps, a 1.5-way arrangement, 336 lock timing, 20 total plates, and 12S preload.

Fitment is configuration-dependent. The NS111-HA directly corresponds to the earlier Z33 350Z flat-tip stub-axle configuration, while later Z33 and Z34 applications require specific RH-to-LH output-shaft changes. Manual transmission and RWD configuration are required. Verify the vehicle's chassis, engine, transmission, axle/stub configuration, and model year before installation.
