OS Giken NS112-HA Super Lock LSD for Nissan 350Z/370Z Z33 VQ35HR/VQ37

Vehicle Fitment

• 2003-2008 Nissan 350Z 3.5L VQ35DE/VQ35HR RWD (Z33) -- MT Only
• 2009-2020 Nissan 370Z 3.7L VQ37VHR RWD (Z34) -- MT Only
• 2007-2008 Infiniti G35 3.5L VQ35HR RWD (V36) -- MT Only
• 2008-2013 Infiniti G37 3.7L VQ37VHR RWD (V36) -- MT Only
• 2014-2015 Infiniti Q60 3.7L VQ37VHR RWD (V36) -- MT Only

Fitment Notes

• Manual transmission only -- does not fit automatics
• Replaces OEM open (non-LSD) differential
• Conical stub axle type -- no side flange modification required
• Spec-S (standard) -- street and track
• Spec-X track-only available (PN NS112-HB, +$125)
• TCD enhanced cooling spec available (PN NS112-HC, call for pricing)
• No break-in period required

Features

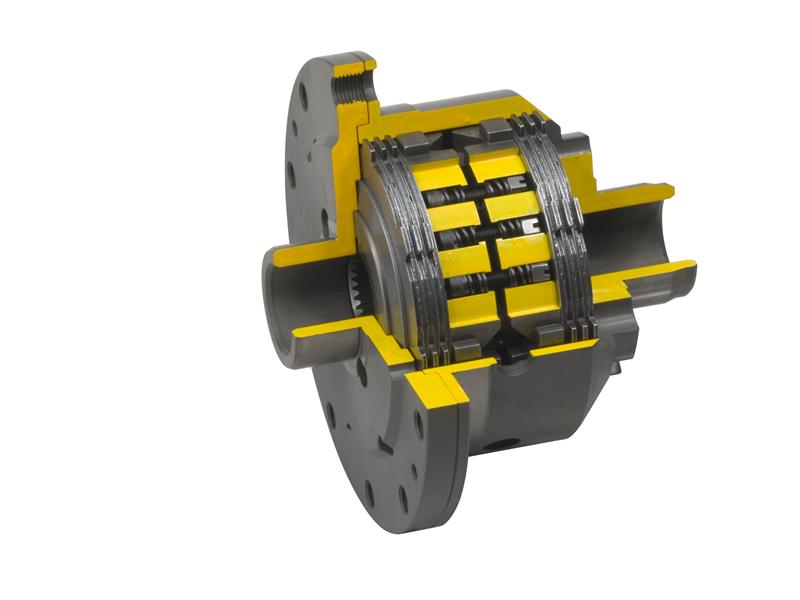

• OS Giken Super Lock LSD -- patented pressure ring design
• Up to 28 friction plates -- 2x competitors' capacity
• Fully progressive 100% lock capability
• Open-diff feel at low speed, full lock under power
• Ultra-quiet operation for daily drivability

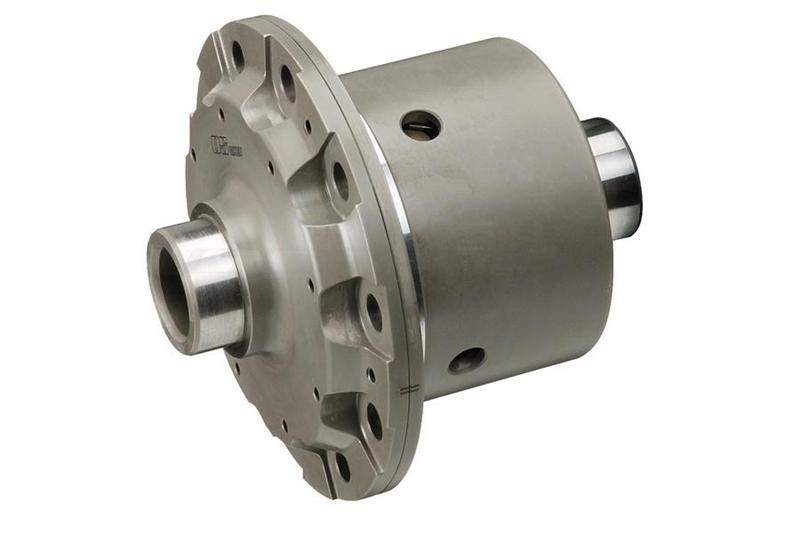

• Single billet machined LSD case
• Raw-forged, chemically heat-treated gears
• High-grade steel alloy construction throughout
• Precision-machined clutch disks -- minimal warpage
• Adjustable initial torque, lock progression, and ramp angles

Specifications

• Type: Clutch-Type LSD (Super Lock)
• Spec: Spec-S (Street and Track)
• Locking: Progressive to 100%
• Friction Plates: Up to 28
• Case: Single Billet Machined
• Gears: Raw-Forged, Heat-Treated
• Material: High-Grade Steel Alloy
• Weight: 25 lbs
• Transmission: Manual Only
• Replaces: OEM Open Differential

Included Components

• 1x OS Giken Super Lock LSD assembly (Spec-S, fully assembled)

Product Description

The OS Giken NS112-HA is a Super Lock LSD for the 2003-2008 Nissan 350Z, 2009-2020 Nissan 370Z, and select Infiniti G35, G37, and Q60 models equipped with manual transmissions and the OEM open (non-LSD) differential with conical stub axle type. The Super Lock is the result of over four years of R&D, featuring a revolutionary spline-through-side-gear architecture with OS Giken's patented miniaturized pressure ring that houses up to 28 friction plates -- twice the capacity of competing designs. Combined with OS Giken's patented lock timing system, the Super Lock achieves complete lock in a progressive, smooth, and ultra-quiet manner suitable for both daily street driving and competitive racing.

The Spec-S standard setting delivers low preload with fully progressive 100% lock capability -- the differential feels open at parking speeds and in slow turns, yet transmits maximum power to both drive wheels under load. The LSD case is machined from a single billet piece, gears are raw-forged and chemically heat-treated, and clutch disks are precision-machined on both sides simultaneously for minimal warpage. No break-in period is required. OS Giken USA offers in-house tuning services including initial torque adjustment, lock progression timing, and ramp angle customization for any power level or driving style. Spec-X track-only setup (NS112-HB, +$125) and TCD enhanced oil cooling spec (NS112-HC) are also available.
