Ohlins POZ MI00S1 Road & Track Coilovers for 98-06 Porsche 911 (996) Carrera RWD

Vehicle Fitment

• 1999-2005 Porsche 911 Carrera (996) RWD

Fitment Notes

• Rear-wheel drive (Carrera 2) models only
• Does not fit Carrera 4 (AWD), Turbo, GT3, or GT2 models
• Fits all 996 Carrera 2 variants (Coupe, Cabriolet, Targa)
• Reuses factory original top mounts
• Does not interface with factory electronic damping systems
• Vehicles with BOSE sound system may require optional adjuster extension kit (Ohlins G78055-01, sold separately)
• Professional installation and alignment recommended

Features

• Ohlins Road & Track coilover suspension with patented Dual Flow Valve (DFV) technology
• Single adjuster controls compression and rebound damping simultaneously
• 20+ click damping settings for road comfort to track-ready stiffness

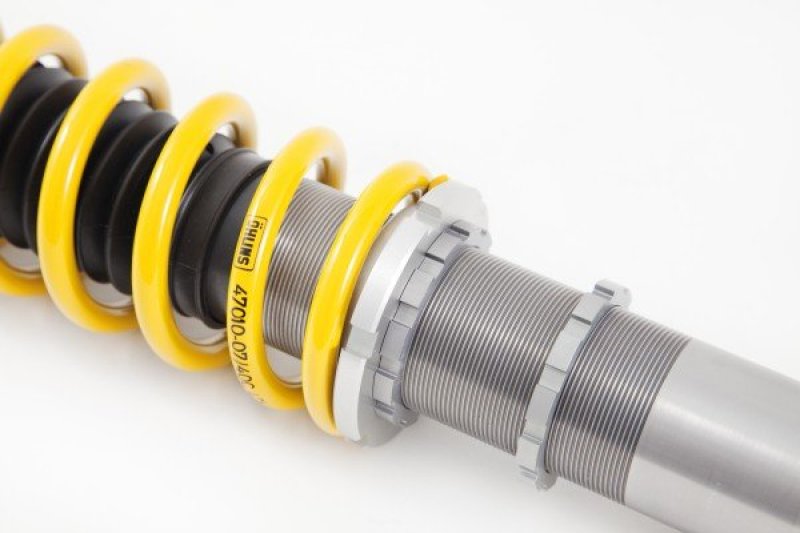

• Independent ride height adjustment separate from spring preload
• Monotube damper architecture for improved response and cooling

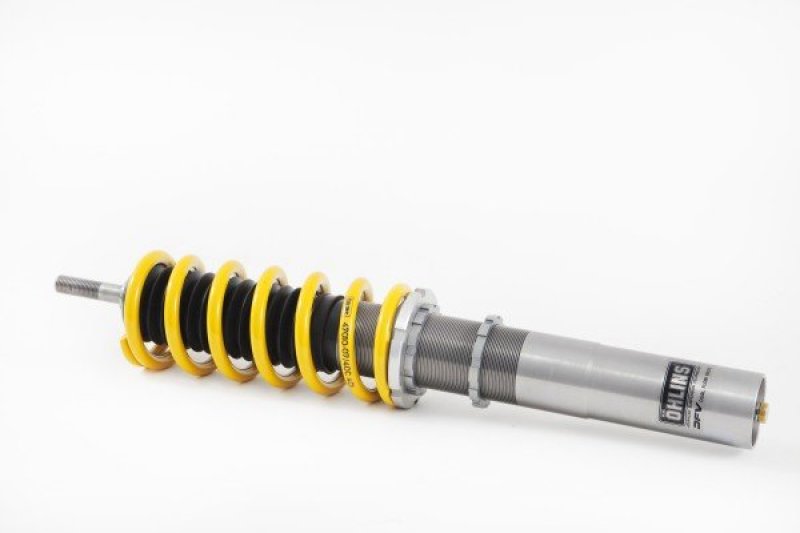

• Inverted front McPherson struts for added rigidity and reduced unsprung weight

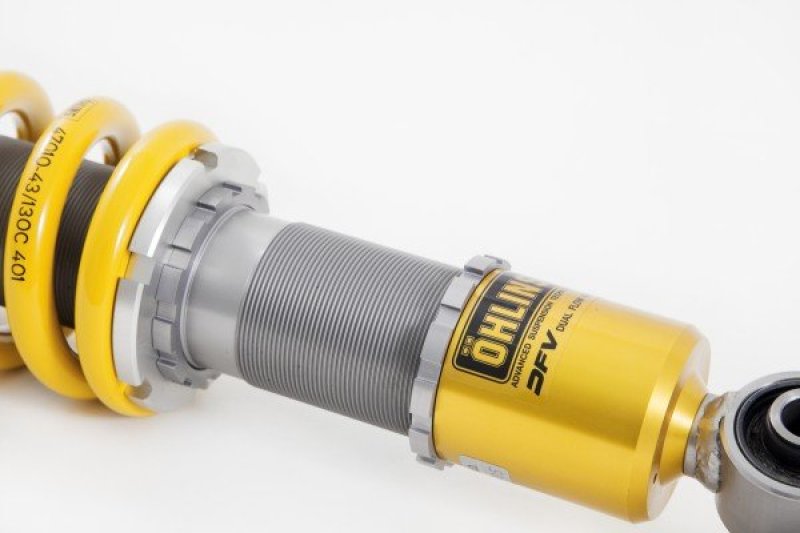

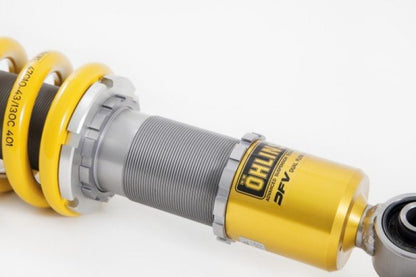

• Aluminum rear shock bodies for lightweight and heat dissipation
• Fully rebuildable for long-term serviceability
• Corrosion salt spray tested per ISO 9227

Specifications

• Part number: Ohlins POZ MI00S1
• Series: Road & Track (R&T)
• Technology: Dual Flow Valve (DFV)
• Front type: McPherson strut, inverted (upside down)
• Rear type: Conventional shock absorber
• Damper construction: Monotube
• Front spring rate: 60 N/mm (343 lbs/in)
• Rear spring rate: 120 N/mm (685 lbs/in)
• Estimated lowering: Approx. 20mm (0.8") below factory with recommended setup
• Damping adjustment: 20+ click positions (single adjuster per corner)
• Top mounts: Uses factory original mounts
• UPC: 840153600272
• Warranty: 2-year limited (worldwide)

Included Components

• Front inverted McPherson strut assemblies with springs (pair)
• Rear shock absorber assemblies with springs (pair)
• Mounting hardware
• C-spanner (for spring preload adjustment)
• Owner's manual and mounting instructions
• Ohlins sticker set

Product Description

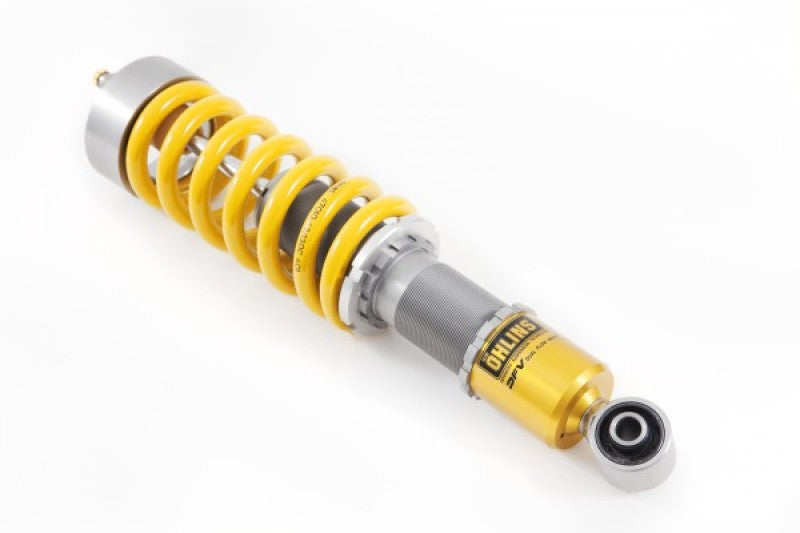

The Ohlins POZ MI00S1 is a Road & Track coilover suspension system for the 1999-2005 Porsche 911 Carrera (996) RWD. Built around Ohlins' patented Dual Flow Valve (DFV) technology, the system delivers motorsport-level chassis control while maintaining refined daily-driving comfort. The DFV provides balanced compression and rebound damping characteristics through a consistent fluid flow path in both directions, allowing the wheel and tire to maintain contact with the road surface more effectively than conventional valve designs. The front utilizes inverted monotube McPherson struts for maximum rigidity and reduced unsprung weight, while the rear features aluminum-body conventional shocks for lightweight performance and improved heat dissipation. Ride height and spring preload are independently adjustable, and damping can be dialed from road comfort to full track mode with over 20 click positions per corner using a single adjuster knob. The system lowers the vehicle approximately 20mm below factory ride height at the recommended setup. Springs are included at 60 N/mm front and 120 N/mm rear. All dampers are fully rebuildable and corrosion tested to ISO 9227 standards. This kit is designed exclusively for rear-wheel drive 996 Carrera 2 models and reuses the factory top mounts. Vehicles equipped with the BOSE sound system may require the optional Ohlins adjuster extension package (G78055-01) for rear damper knob access. Backed by Ohlins' 2-year limited worldwide warranty.
