Ohlins POR GN01S1 Road & Track Coilover Kit for 88-94 Porsche 911 964 DFV

Vehicle Fitment

• 1988-1994 Porsche 911 Carrera 2 (964, Coupe / Targa / Cabriolet)
• 1988-1994 Porsche 911 Carrera 4 (964, Coupe / Targa / Cabriolet)
• 1988-1994 Porsche 911 Speedster (964)
• 1988-1994 Porsche 911 Turbo (964)

Fitment Notes

• TUV certified -- road-legal in Germany and most EU markets
• GOCA approved (Belgium)
• Manufacturer confirmation available through Swiss retailers
• Professional installation strongly recommended
• Wheel alignment required after installation

Features

• DFV (Dual Flow Valve) -- patented Ohlins technology; one adjuster controls high and low speed compression and rebound simultaneously
• Front: McPherson strut, upside-down design -- 50 N/mm spring rate
• Rear: Conventional shock absorber -- 90 N/mm spring rate
• 20mm lowering at recommended setting (front and rear)
• ±15mm ride height adjustment range (front and rear)
• Separate ride height and spring preload adjustment

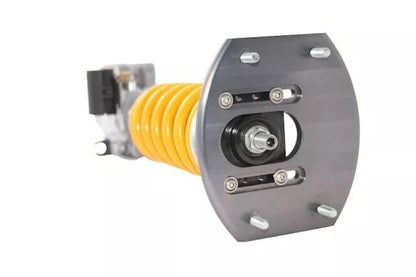

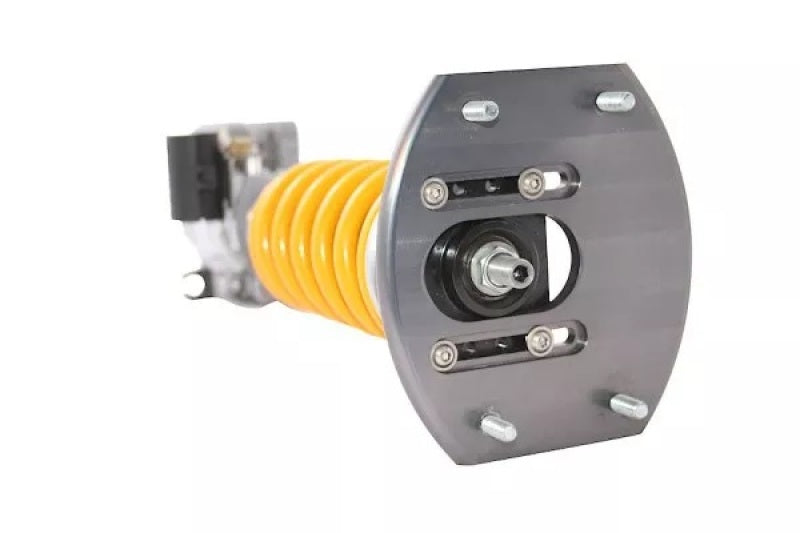

• Front aluminum top mounts with adjustable camber
• Rear aluminum top mounts (non-adjustable)
• Rebuildable -- full service available through Ohlins dealers
• Corrosion salt spray tested to ISO 9227
• 2-year warranty

Specifications

• Part Number: POR GN01S1
• Series: Road & Track
• Technology: DFV (Dual Flow Valve)
• Front Spring Rate: 50 N/mm
• Rear Spring Rate: 90 N/mm
• Lowering (recommended setting): 20mm front / 20mm rear
• Height Adjustment Range: -15 / +15mm (front and rear)
• Front Top Mount: Aluminum, adjustable camber
• Rear Top Mount: Aluminum, non-adjustable
• Damping Adjustment: Single adjuster (compression + rebound)
• Corrosion Standard: ISO 9227
• Warranty: 2 years
• MSRP: $5,490.00

Included Components

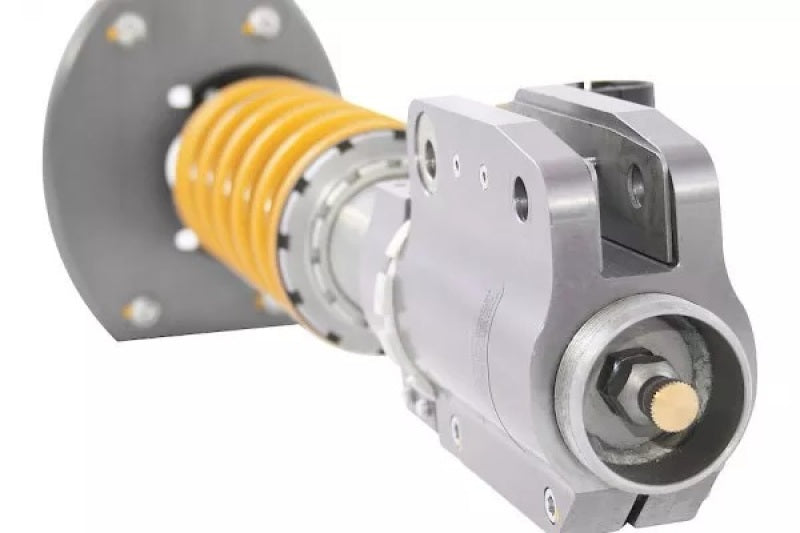

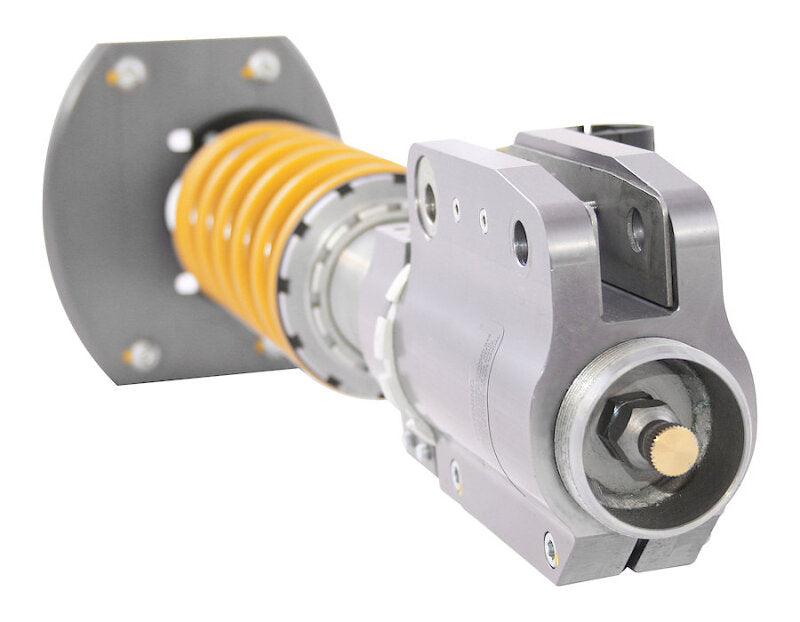

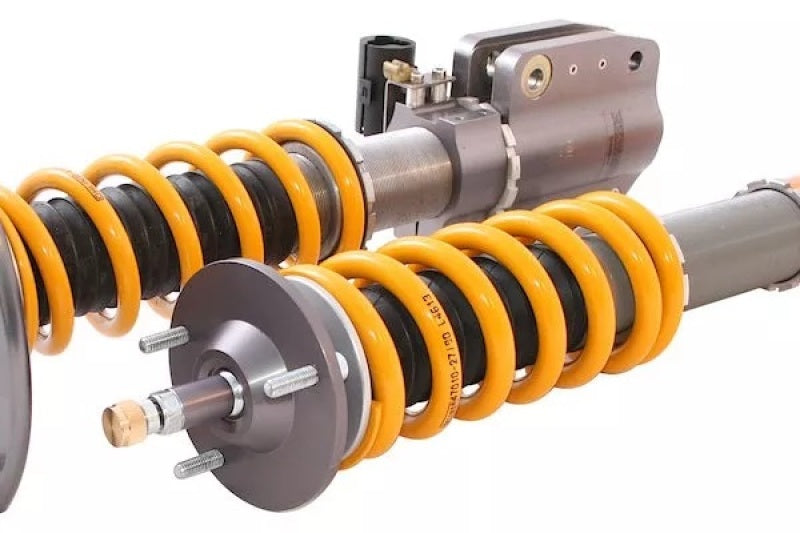

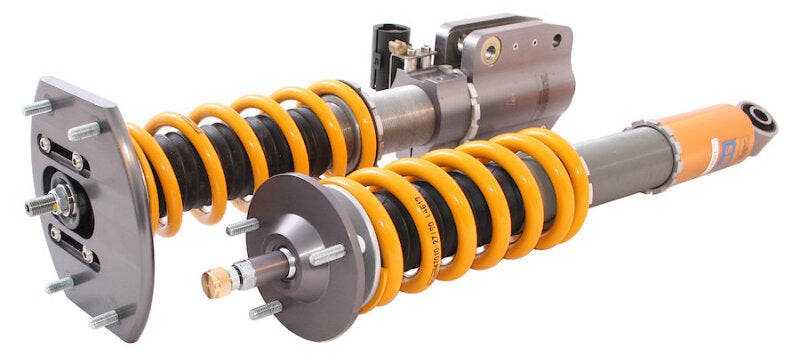

• 2x Front coilover struts (upside-down McPherson) with springs

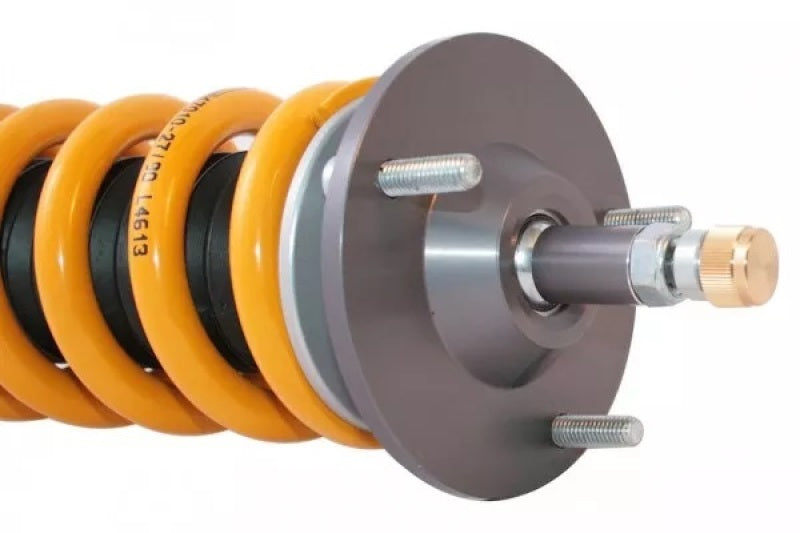

• 2x Rear shock absorbers with springs
• All mounting hardware and top mounts
• C-spanner for spring preload adjustment
• Owner's manual

Product Description

The Ohlins POR GN01S1 is a Road & Track coilover suspension system for the 1988-1994 Porsche 911 (964) in Carrera 2, Carrera 4, Speedster, and Turbo variants across all body styles -- Coupe, Targa, and Cabriolet. It is a complete four-corner kit containing upside-down McPherson front struts and conventional rear shock absorbers, both with matched springs, all mounting hardware, and adjustable aluminum top mounts at the front with camber adjustment capability.

The system is built around Ohlins' patented DFV (Dual Flow Valve) technology -- a single external adjuster simultaneously changes high-speed and low-speed compression and rebound, allowing the driver to transition between a compliant street setting and a firm track setting quickly and without tools. Front spring rate is 50 N/mm; rear is 90 N/mm. Both ends deliver 20mm of lowering at the recommended setting with ±15mm of additional ride height adjustment available independently of spring preload, so ride height and damping can be tuned without affecting each other. The shocks are fully rebuildable through Ohlins' dealer service network and are corrosion tested to ISO 9227. TUV certified for road use. Backed by Ohlins' 2-year limited warranty.
