Ohlins BMS MI20S1 Road & Track DFV Monotube Coilover Kit 2007-2014 MINI Cooper

Vehicle Fitment

• 2007-2014 MINI Cooper (R56)
• 2007-2014 MINI Cooper S (R56)
• 2007-2014 MINI John Cooper Works / JCW (R56)

Fitment Notes

• This kit uses the vehicle's original OE top mounts - OE mounts are required for installation and must be in serviceable condition; they are not included
• Target ride height is approximately 15mm lower than OE at both front and rear; actual lowering will vary based on spring preload setting, vehicle weight, and tire/wheel combination
• Professional installation recommended; torque specifications and installation instructions are provided with the kit
• Sold as a complete coilover kit - springs and mounting hardware included

Features

• Patented Dual Flow Valve (DFV) technology - exclusive to Ohlins Road & Track; provides matched damping characteristics on both compression and rebound strokes, allowing the tire to return to the road surface more quickly after any input for improved grip, traction, and cornering response
• Single-knob damping adjustment simultaneously changes all four damping parameters - high-speed compression, low-speed compression, high-speed rebound, and low-speed rebound - allowing fast mode switching between road comfort and track stiffness without adjusting each corner individually
• 20+ click individual damping adjustment range per damper for fine-grained, corner-by-corner tuning of suspension response and balance
• Monotube damper architecture delivers faster thermal management, more consistent damping under repeated inputs, and greater sensitivity at low shaft speeds compared to twin-tube designs
• Spring preload/ride height adjustable at both front and rear via threaded collar - allows accurate, measured ride height adjustment without removing the damper from the vehicle
• Application-specific spring rates (70 N/mm front / 60 N/mm rear) tuned specifically for the R56 MINI platform's weight distribution, geometry, and OE compliance characteristics
• All dampers corrosion-tested to ISO 9227 standard for long-term durability in road environments
• Backed by Ohlins' worldwide 2-year limited warranty

Specifications

• Part Number: BMS MI20S1
• Series: Ohlins Road & Track (R&T)

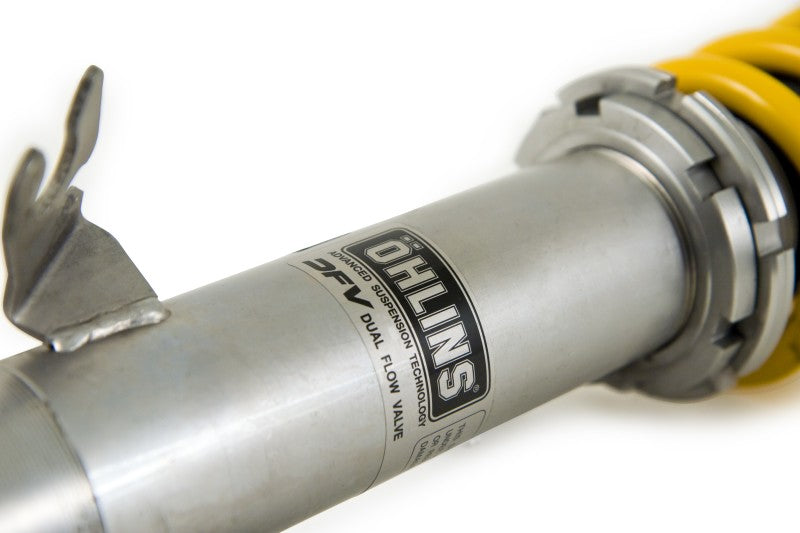

• Technology: Patented DFV (Dual Flow Valve)
• Damper Design: Monotube
• Damping Adjustment: 20+ Click, Individually Adjustable Per Corner
• Adjustment Type: Single-Knob - Adjusts All 4 Damping Parameters Simultaneously
• Ride Height Adjustment: Front - Spring Preload; Rear - Spring Preload
• Target Ride Height: ~15mm Lower Than OE (Front and Rear)
• Body Drop: ~0.7" Front / ~0.7" Rear
• Front Spring Rate: 70 N/mm
• Rear Spring Rate: 60 N/mm
• OE Top Mounts: Required - use original vehicle mounts (not included)
• Corrosion Testing: ISO 9227
• Warranty: 2-Year Worldwide Limited
• Sold As: Complete coilover kit with springs and mounting hardware

Included Components

• 2x Front Monotube Strut Assemblies with Springs
• 2x Rear Monotube Shock Assemblies with Springs
• Mounting Hardware Kit
• Installation Instructions

Product Description

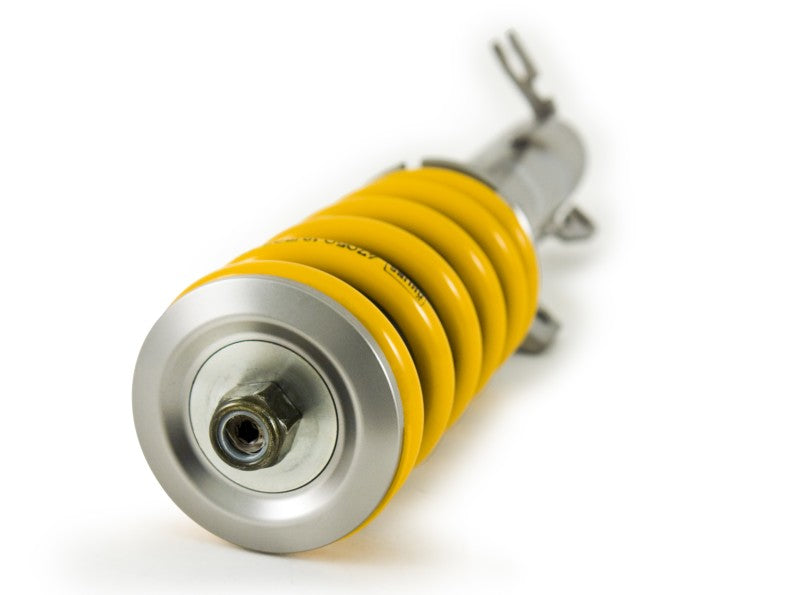

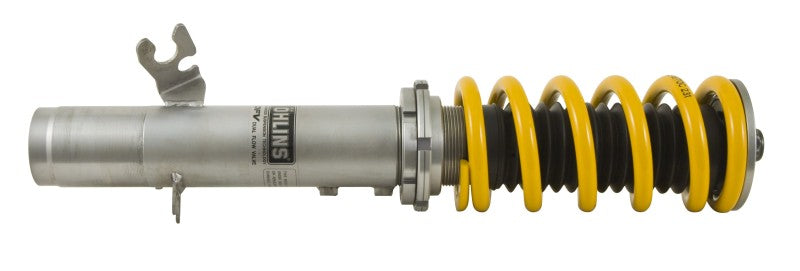

The Ohlins BMS MI20S1 is a complete Road & Track coilover suspension system engineered specifically for the 2007-2014 MINI Cooper, Cooper S, and John Cooper Works in R56 form. The system is built around Ohlins' patented Dual Flow Valve (DFV) technology - exclusive to the R&T line - which provides matched damper fluid flow characteristics on both compression and rebound strokes. The result is a suspension that returns the tire to the road surface faster after each input, delivering sharper lateral grip, more balanced cornering, and a more planted feel than conventional coilover systems at equivalent spring rates. Application-specific spring rates of 70 N/mm front and 60 N/mm rear are tuned to the R56 platform's geometry and weight distribution for optimal performance straight from installation.

The monotube damper architecture provides faster heat dissipation and more consistent damping response under repeated track inputs compared to twin-tube designs. A single gold adjustment knob on each damper simultaneously sets high- and low-speed compression and high- and low-speed rebound across a 20+ click range, making corner-by-corner tuning fast and intuitive without requiring tools. Ride height is adjustable at both ends via spring preload threaded collar, targeting approximately 15mm below OE ride height. OE top mounts are required and must be sourced from the vehicle. The complete kit includes springs and mounting hardware and is backed by a 2-year worldwide limited warranty from Ohlins.
