Ohlins VWS MT10S2 Road & Track DFV Monotube Coilover Kit Audi A3/TT VW Golf R/R3

Vehicle Fitment

• 2006-2013 Audi A3 Quattro (8P, AWD)
• 2006-2014 Audi TT (8J, AWD)
• 2009-2015 Audi TTS (8J, AWD)
• 2012-2013 Audi TT RS (8J, AWD)
• 2006-2013 Audi S3 (8P, AWD)
• 2008-2013 Audi RS3 (8P, AWD)
• 2012-2013 Volkswagen Golf R (MK6, AWD)
• 2008 Volkswagen Golf R32 (MK5, AWD)
• Also fits select Seat Toledo, Skoda Octavia, and VW Golf V/VI Estate/4WD applications - verify with Ohlins fitment guide for your specific build

Fitment Notes

• This kit uses the vehicle's original OE top mounts - OE mounts are required for installation and must be in serviceable condition
• Vehicles equipped with factory electronic adaptive damper control (EDC) require a separate Ohlins EDC cancellation kit (sold separately) - confirm the correct kit for your application (e.g., 35020-14 for VW Golf V/VI, Seat Leon, Skoda Octavia; 35020-22 or 35020-27 for other applications)
• AWD variants only - FWD versions of these platforms use a different Ohlins fitment
• Target ride height is approximately 20mm lower than OE; actual lowering will vary based on spring preload setting, vehicle weight, and tire/wheel combination
• Professional installation recommended; torque specifications and installation instructions are provided with the kit

Features

• Patented Dual Flow Valve (DFV) technology - exclusive to Ohlins Road & Track; provides consistent damper fluid flow characteristics on both compression and rebound strokes, allowing the tire to return to the road surface faster for improved grip, traction, and cornering response
• Single-knob damping adjustment simultaneously changes all four damping parameters - high-speed compression, low-speed compression, high-speed rebound, and low-speed rebound - allowing rapid mode switching between road comfort and race stiffness without adjusting each corner individually
• 20+ click individual damping adjustment range per damper allows fine-grained tuning of each corner's response independently for corner-specific handling balance
• Monotube damper architecture delivers faster thermal management, more consistent damping response over repeated inputs, and improved sensitivity at low shaft speeds compared to twin-tube designs
• Inverted strut front damper design (front) increases lateral rigidity and bending resistance at the strut, reducing flex under hard cornering loads
• Aluminum body rear shock construction reduces unsprung weight and improves heat dissipation from the damper under sustained track use
• Front ride height adjustment via spring preload; rear ride height adjustment via divorced spring collar - both adjustable without removing the damper from the vehicle
• All dampers corrosion-tested to ISO 9227 standard for long-term durability in road environments
• Backed by Ohlins' worldwide 2-year limited warranty

Specifications

• Part Number: VWS MT10S2
• Series: Ohlins Road & Track (R&T)
• Technology: Patented DFV (Dual Flow Valve)
• Damper Design: Monotube - Inverted Struts (Front), Aluminum Body (Rear)
• Damping Adjustment: 20+ Click, Individually Adjustable Per Corner
• Adjustment Type: Single-Knob - Adjusts All 4 Damping Parameters Simultaneously
• Ride Height: Adjustable (Front: Spring Preload; Rear: Divorced Spring Collar)
• Target Ride Height: ~20mm Lower Than OE
• Front Spring Rate: 70 N/mm
• Rear Spring Rate: 80 N/mm
• OE Top Mounts: Required - use original vehicle mounts
• EDC Cancellation Kit: Required for EDC-equipped vehicles - sold separately
• Corrosion Testing: ISO 9227
• Warranty: 2-Year Worldwide Limited
• Sold As: Complete coilover kit with springs and mounting hardware

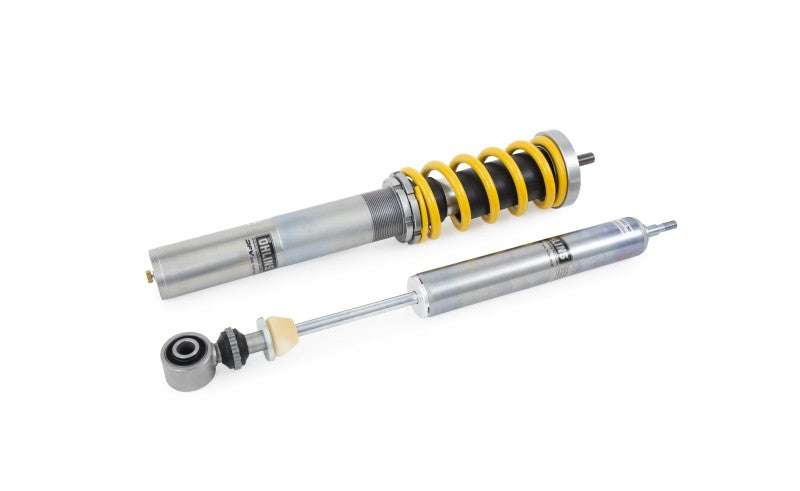

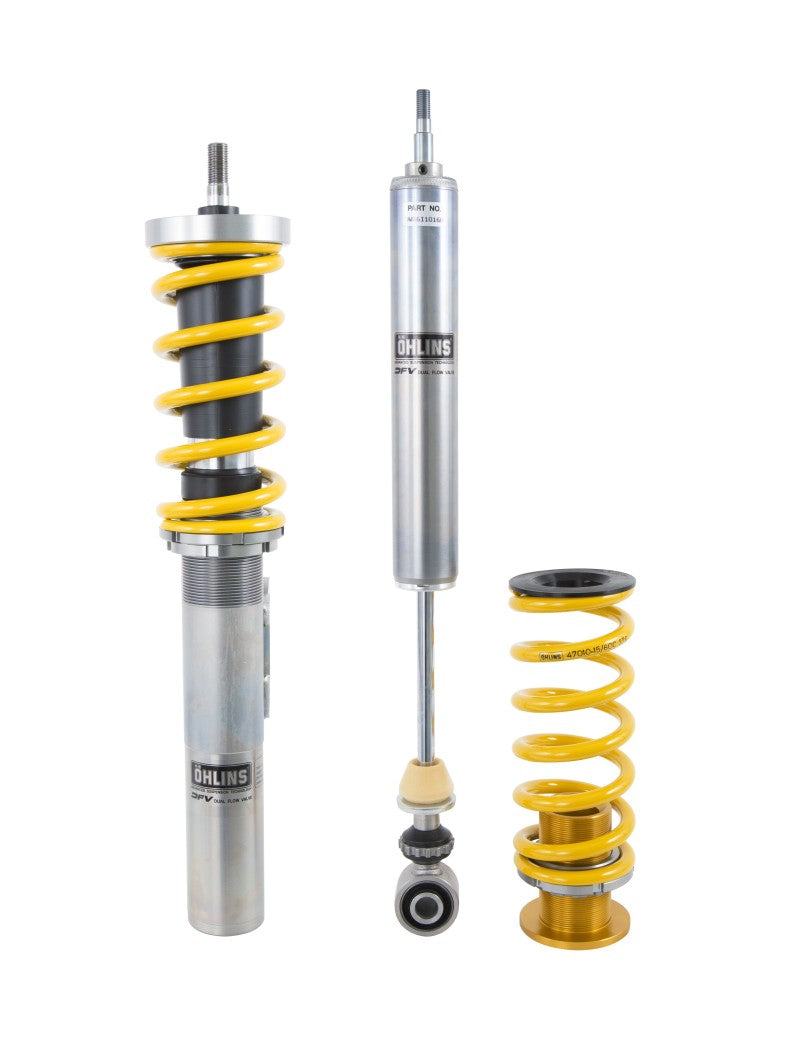

Included Components

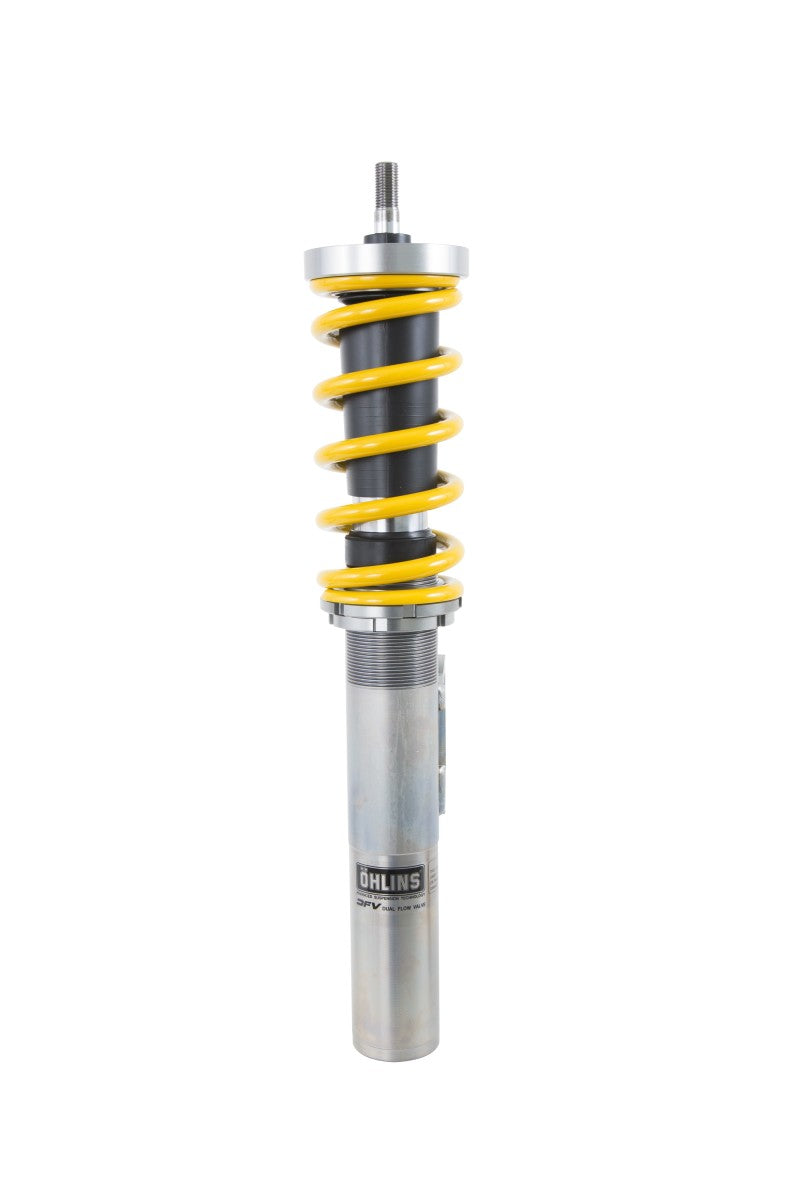

• 2x Front Inverted Monotube Strut Assemblies with Springs

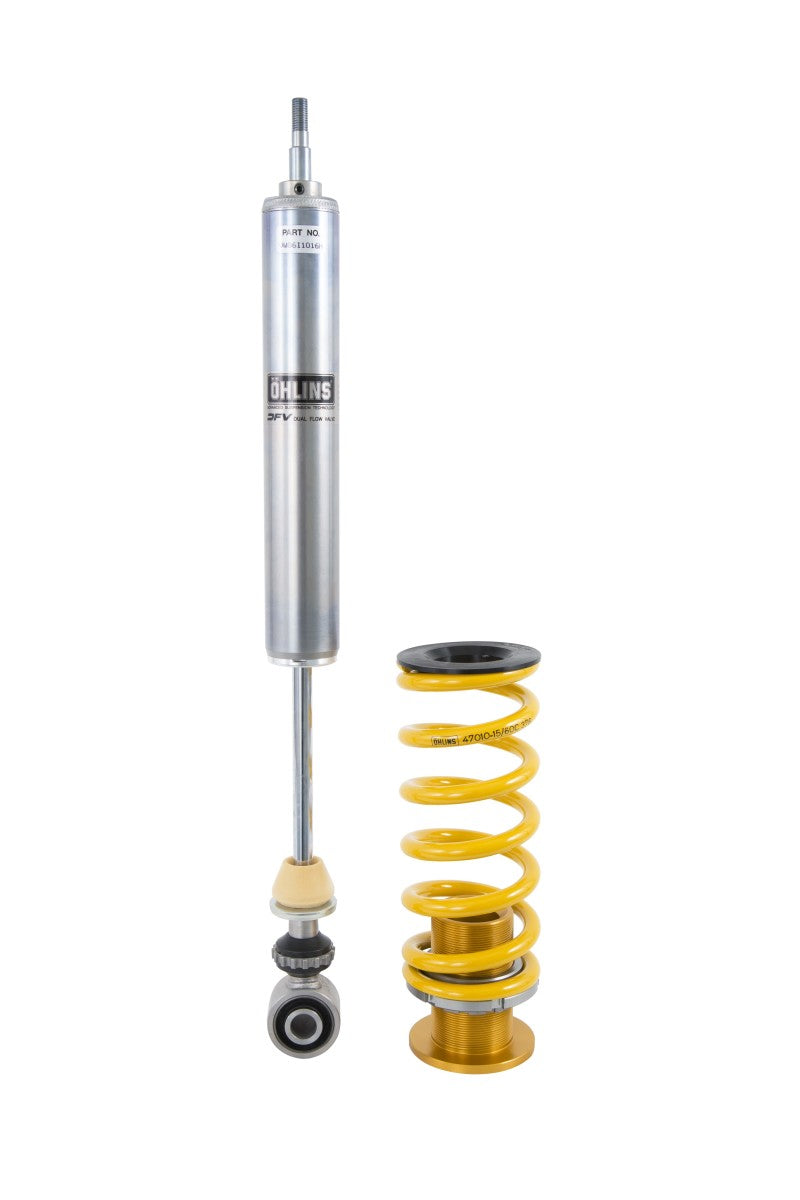

• 2x Rear Aluminum Body Monotube Shock Assemblies with Springs
• Mounting Hardware Kit
• Installation Instructions

Product Description

The Ohlins VWS MT10S2 is a complete Road & Track coilover suspension system engineered for AWD variants of the Audi A3 (8P), TT/TTS/TTRS (8J), S3, RS3, Volkswagen Golf R (MK6), and Golf R32 (MK5). At the core of the system is Ohlins' patented Dual Flow Valve (DFV) technology - exclusive to the R&T line - which provides matched damping characteristics on both compression and rebound strokes by maintaining a consistent fluid flow path through the piston in both directions. The result is a suspension system that returns the tire to the road surface faster after any input, delivering sharper traction, improved cornering balance, and a more planted feel than conventional coilover designs at equivalent spring rates.

The monotube damper architecture uses inverted front struts for increased lateral rigidity and aluminum-body rear shocks for reduced unsprung weight and improved heat dissipation during sustained track use. A single gold adjustment knob on each damper simultaneously sets high- and low-speed compression and high- and low-speed rebound across a 20+ click range, making corner-by-corner tuning fast and intuitive. Ride height is adjustable at both ends - spring preload at the front and a divorced spring collar at the rear - targeting approximately 20mm below OE ride height. Vehicles equipped with factory electronic adaptive suspension require an Ohlins EDC cancellation kit, sold separately; OE top mounts are required and must be reused from the vehicle. The complete kit includes springs and mounting hardware and is backed by a 2-year worldwide limited warranty.
