Ohlins MAS MI00S1 Road Track DFV Coilover Kit for 2003-2012 Mazda RX-8 SE3P

Vehicle Fitment

• 2003-2012 Mazda RX-8 (SE3P, all trims, all engines)

Fitment Notes

• Fits all SE3P RX-8 production years (2003-2012) - the SE3P is the single chassis designation covering the entire RX-8 production run globally
• Front top mounts: Ohlins aluminum upper mounts are included - not adjustable (pillow ball / spherical bearing mounts are NOT included on this application)
• Rear top mounts: Uses the vehicle's original OEM rear top mounts - Ohlins rear upper mounts are not included and not required
• Target front ride height is approximately 20-50 mm lower than OEM depending on spring preload and height adjuster position
• Target rear ride height is approximately 25-50 mm lower than OEM depending on spring preload and height adjuster position
• Damping is adjustable via a single adjuster on each corner that controls both compression and rebound simultaneously - this is a Dual Flow Valve (DFV) single-knob system, not separate compression and rebound adjusters
• This is a Road & Track application - not a race-only product; designed for street and occasional track use
• Fully rebuildable and serviceable through Ohlins authorized service centers

Features

• Ohlins Road & Track DFV (Dual Flow Valve) technology - Ohlins' patented single-adjuster system that simultaneously adjusts both low- and high-speed compression and rebound damping in one motion, allowing instant switching between road comfort and track performance
• 20+ clicks of damping adjustment per corner - a broad adjustment range lets the driver dial in exactly the right balance of compliance and control for any road condition or driving style
• Independent spring preload adjustment at each corner - fine-tune spring rate response and load compensation without affecting ride height
• Separate ride height adjustment at each corner - ride height and spring preload are independently controlled for maximum setup flexibility
• Monotube damper architecture front and rear - delivers faster response to suspension inputs and more consistent damping compared to twin-tube designs
• Aluminum body rear shock absorbers - reduces unsprung weight and improves heat dissipation during extended track use

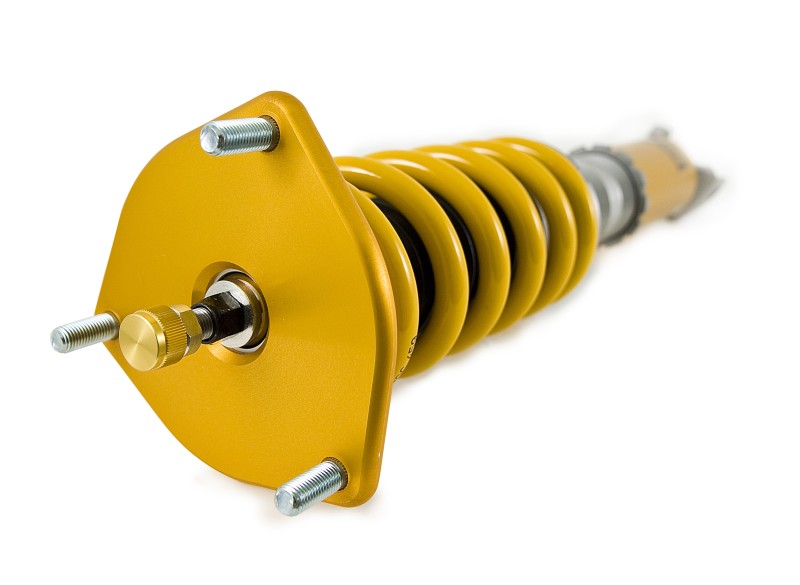

• Aluminum front upper mounts included - provides a stiffer, more precise steering and suspension response compared to OEM rubber mounts
• Corrosion tested to ISO 9227 salt spray standards - validated for long-term durability in real-world climates and conditions
• Fully rebuildable - Ohlins' coilover suspension is a long-term investment; all internal components are serviceable and replaceable through Ohlins dealers
• 2-year limited worldwide warranty from Ohlins Racing
• Engineered and validated specifically for the RX-8 SE3P chassis - not a universal kit adapted to fit

Specifications

• Part Number: MAS MI00S1
• Series: Road & Track (DFV)
• Damper Design: Monotube (front and rear)
• DFV Technology: Yes - single adjuster controls compression and rebound simultaneously
• Damping Adjustment: 20+ click settings per corner
• Front Spring Rate: 80 N/mm
• Rear Spring Rate: 40 N/mm
• Front Ride Height Range: Approx. 20-50 mm lower than OEM
• Rear Ride Height Range: Approx. 25-50 mm lower than OEM
• Ride Height Adjustment: Independent of spring preload at each corner
• Spring Preload Adjustment: Yes - C-spanner (included)
• Front Top Mounts: Ohlins aluminum upper mounts (included, non-adjustable)
• Rear Top Mounts: OEM factory mounts (not included - use original)
• Corrosion Testing: ISO 9227 salt spray certified
• Warranty: 2-year limited worldwide warranty
• Quantity: Complete 4-corner coilover kit (front pair + rear pair)

Included Components

• 2x Ohlins DFV front coilover strut assemblies with springs and aluminum upper mounts
• 2x Ohlins DFV rear shock absorber assemblies with springs
• 1x C-spanner (for spring preload adjustment)
• 1x Owner's manual
• 1x Mounting instruction set
• 1x Ohlins sticker set

Product Description

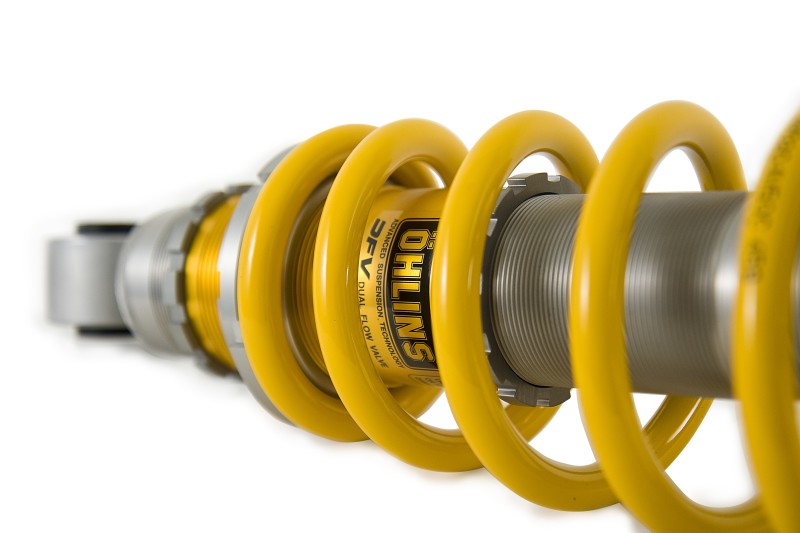

The Ohlins MAS MI00S1 is a complete Road & Track DFV coilover suspension kit engineered specifically for the 2003-2012 Mazda RX-8 (SE3P). Developed to transform the RX-8's already well-regarded chassis dynamics into a truly adjustable, track-capable platform without sacrificing daily drivability, this kit is the product of Ohlins' four decades of motorsport suspension development applied directly to a street car application. The system features Ohlins' patented Dual Flow Valve (DFV) technology at all four corners - a single golden adjuster knob on each damper that simultaneously optimizes low- and high-speed compression and rebound damping in both directions of travel. At the track, turn the adjuster clockwise for firm, responsive race-mode damping; on the road, dial it back for smooth, compliant daily driving - all without separate compression and rebound adjusters or complex setup procedures.

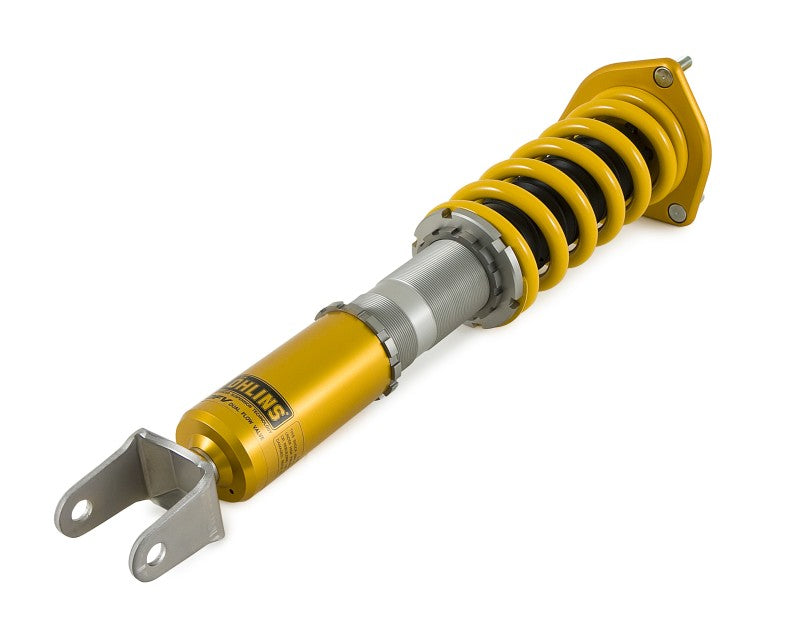

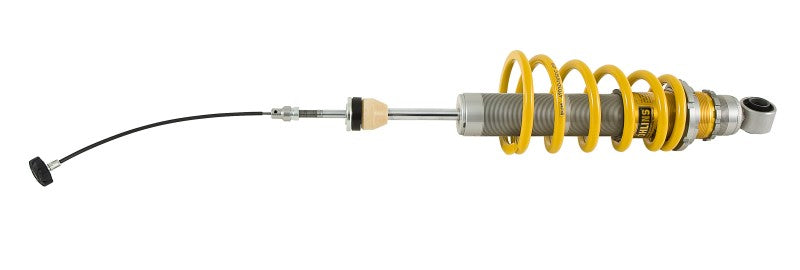

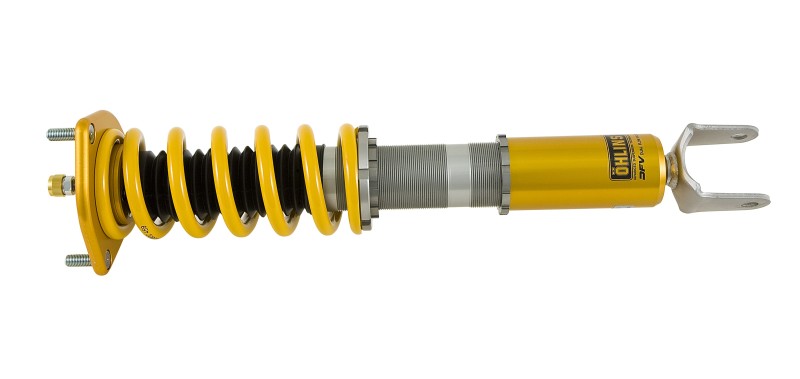

The front struts feature a monotube damper design with independent spring preload and ride height adjusters, allowing the driver to set exact corner weights and chassis height without these two settings interfering with each other. Ohlins aluminum upper mounts replace the factory rubber mounts for a sharper, more immediate steering and suspension response. The rear units use the same monotube architecture and DFV technology, retaining the RX-8's original OEM rear top mounts to maintain compatibility with the factory geometry. Front spring rate is set at 80 N/mm for responsive handling with manageable compliance; rear spring rate is 40 N/mm - a softer rear tuning that complements the RX-8's natural tendency toward rear-wheel engagement and helps maintain balance during corner entry and mid-corner phases. Target ride height is approximately 20-50 mm lower than OEM at the front and 25-50 mm lower at the rear, depending on adjuster position.

The MAS MI00S1 kit is corrosion salt spray tested to ISO 9227 standards and backed by a 2-year worldwide limited warranty from Ohlins Racing. All dampers are fully rebuildable through Ohlins authorized service centers, making this a long-term investment that can be refreshed and revalved as driving needs evolve over time. The complete kit includes front and rear coilover assemblies with springs, Ohlins aluminum front upper mounts, a C-spanner for spring preload adjustment, owner's manual, and mounting instructions. Rear OEM top mounts are reused from the factory setup and are not included.
