NRG SRK-200GN Gen 2.0 Steering Wheel Quick Release Green Body Green Ring 6-Bolt

Vehicle Fitment

• Universal Fitment - Compatible with any vehicle using a standard 6-bolt 70mm aftermarket steering wheel hub adapter and any 6-bolt aftermarket steering wheel (6x70mm or 6x74mm bolt pattern)

Fitment Notes

• This is a universal quick release - a vehicle-specific short hub adapter with a 6-bolt 70mm bolt pattern is required for installation and is sold separately
• Compatible with aftermarket steering wheels using the 6x70mm or 6x74mm bolt pattern, including wheels from NRG, Nardi, MOMO, Sparco, Vertex, and other brands using the standard 6-bolt pattern
• Not compatible with OEM steering columns without a vehicle-specific hub adapter
• Not compatible with the NRG Thin Quick Release system or NRG Quick Tilt system
• Horn wires are included and connect/disconnect automatically each time the steering wheel is installed or removed
• A separate horn button is required if using this quick release without a horn-wired aftermarket steering wheel
• Full aircraft-grade aluminum construction - no plastic harness inserts

Features

• Generation 2.0 ball-lock quick release mechanism - NRG's best-selling quick release series, featuring capabilities not found in conventional ball-locking systems
• Raised contact sections on the hub interface prevent scratching and stretching of the hub adapter's anodized finish during repeated steering wheel swaps
• Self-locking safety mechanism engages automatically upon steering wheel installation, providing a critical secondary retention layer beyond the ball-lock to prevent accidental disengagement
• Audible "ding" confirmation sound on full lock engagement - provides positive audio and tactile feedback confirming secure installation on every wheel swap
• Dual spring self-indexing design ensures the steering wheel returns to a consistent, repeatable indexed position every time it is reinstalled
• CNC machined from aircraft-grade 6061 aluminum with no plastic inserts - full metal construction for maximum structural integrity under racing and performance loads
• Full green colorway - anodized green body matched with anodized green pull ring - delivering a bold, uniform appearance ideal for green-themed builds, JDM interiors, and motorsport cockpits
• Pinless pull-to-release mechanism - a single pull on the green ring disengages the ball-lock and frees the steering wheel cleanly and instantly
• Integrated 2.5 in. horn wiring connects and disconnects automatically with each steering wheel installation - no manual reconnection required
• 6x70mm / 6x74mm dual bolt pattern on the steering wheel face covers the full range of standard aftermarket steering wheel brands
• All mounting hardware included - ready to install straight from the box

Specifications

• Part Number: SRK-200GN
• Generation: 2.0
• Material: Aircraft-grade 6061 aluminum, anodized - no plastic inserts
• Body Finish: Green anodized
• Ring Finish: Green anodized
• Release Style: Pinless-type, pull to release
• Height: 2.5 in.
• Steering Wheel Bolt Pattern: 6 x 70mm / 6 x 74mm
• Hub Adapter Bolt Pattern: 6 x 70mm
• Shaft Attachment Style: Bolt-on
• Horn Wires: Included (2.5 in. leads)
• Audible Lock Confirmation: Yes ("ding" sound on engagement)
• Hardware: All mounting hardware included
• Quantity: Sold individually (1x unit)

Included Components

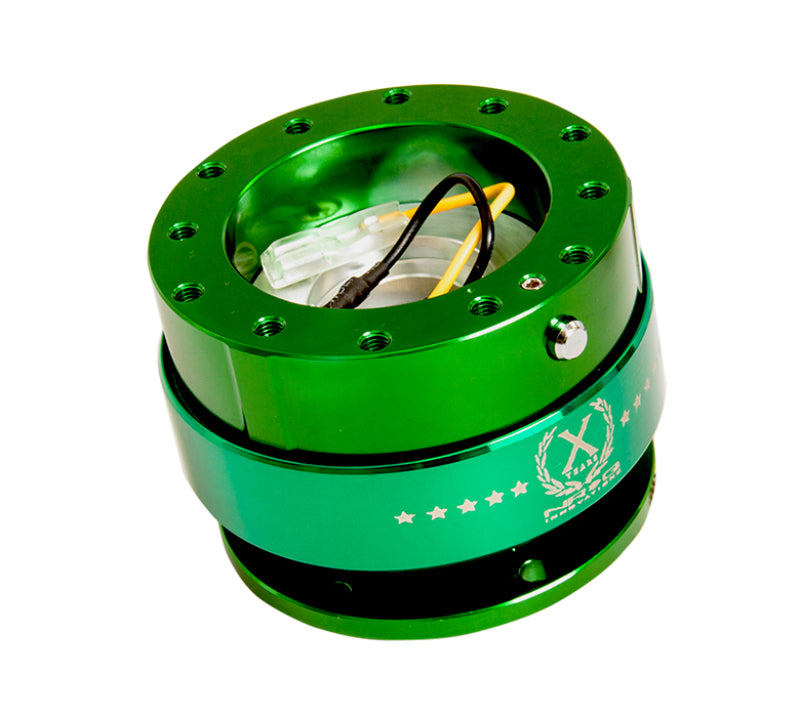

• 1x NRG Gen 2.0 Quick Release Hub (SRK-200GN) - Green Body / Green Ring
• 1x Horn wiring harness with connectors (2.5 in.)
• 1x Mounting hardware set

Product Description

The NRG SRK-200GN is the Green Body / Green Ring variant of NRG's Generation 2.0 quick release - the brand's best-selling quick release series and the foundation of the NRG aftermarket steering wheel ecosystem. The Gen 2.0 installs between the vehicle-specific short hub adapter and the aftermarket steering wheel, enabling tool-free steering wheel removal and reinstallation in a single motion. Pulling the green anodized release ring disengages the internal ball-lock mechanism, freeing the wheel instantly. The raised sections machined into the hub contact surface protect the anodized finish of both the quick release body and the hub adapter from scratching and deformation - a precise engineering detail that extends the service life of both components across thousands of wheel swaps.

The SRK-200GN is machined entirely from aircraft-grade 6061 aluminum with no plastic harness inserts, maintaining full structural integrity under the loads of performance and racing applications. The self-locking mechanism adds automatic secondary retention the moment the steering wheel seats into position. The audible "ding" on engagement gives the driver immediate confirmation of a fully locked wheel - an important safety feature especially when wearing gloves or working quickly in a racing environment. NRG's dual spring self-indexing system returns the wheel to the same repeatable position every time it is installed, ensuring consistent steering geometry across every session. Integrated 2.5 in. horn wiring connects and disconnects automatically with the steering wheel without any additional steps.

The full green colorway - matching anodized green body and anodized green pull ring - makes the SRK-200GN a natural fit for green-accented interiors, JDM builds, and motorsport-inspired cabins where interior color coordination is part of the overall build vision. The 6x70mm / 6x74mm steering wheel side bolt pattern accepts the broadest range of standard aftermarket steering wheel brands including NRG, Nardi, MOMO, Sparco, and Vertex. A vehicle-specific short hub adapter (sold separately) is required for installation. This quick release is not compatible with the NRG Thin Quick Release system or NRG Quick Tilt system.
