Nitrous Express 20959-10 F-150 5.0 Coyote Plate System 10lb for 2021-2026

Vehicle Fitment

• 2021-2026 Ford F-150, 5.0L Coyote engine

Fitment Notes

• Direct-plug-in fuel line adapter is included, so no cutting of factory fuel lines is required
• One source cites a broader 50-400 HP range; the specific jets included cover 35-250 HP - confirm exact power targets with Nitrous Express if tuning to the top of the range

Features

• Spraybarless billet plate technology for optimal nitrous/fuel atomization and distribution
• Bolts directly between the throttle body and intake for a quick, clean install
• Solenoids integrated directly into the plate for a clean look and simplified installation
• TPS Autolearn switch activates nitrous only at wide-open throttle and automatically disengages off-throttle
• Includes jetting for 35, 50, 75, 100, 125, 150, 200, and 250 horsepower
• Stainless steel braided N2O line for durable, high-pressure plumbing
• Master arming switch, relay, and relay harness included
• Billet aluminum Lightning 500 bottle valve and stainless steel bottle brackets included with the bottle

Specifications

• System style: Plate, spraybarless
• Bottle capacity: 10 lbs.
• Jet sizes included: 35, 50, 75, 100, 125, 150, 200, 250 HP
• Activation: TPS Autolearn (wide-open throttle)
• Bottle valve: Lightning 500, billet aluminum

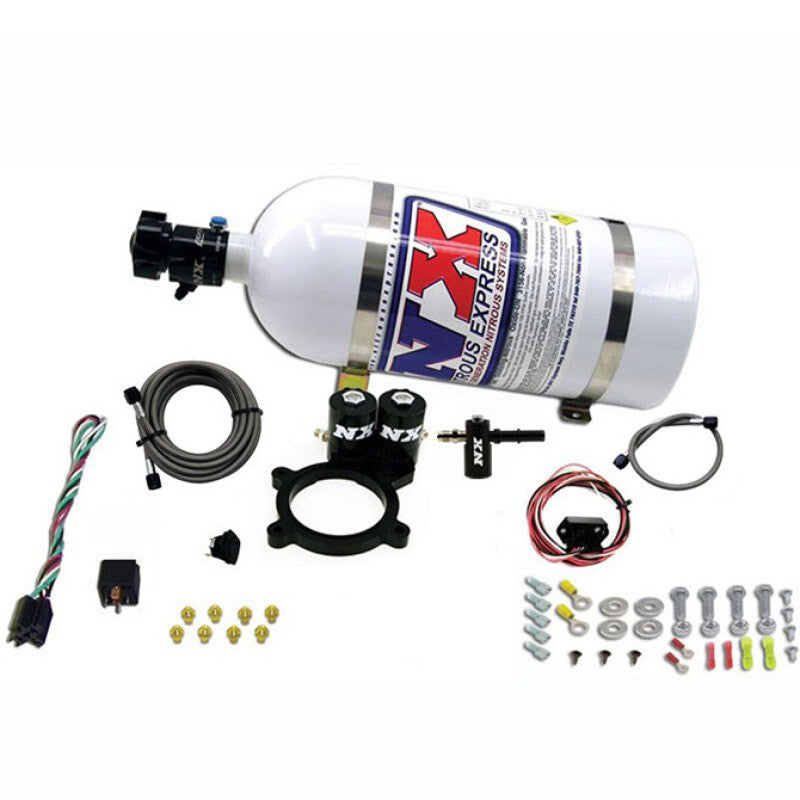

Included Components

• 1x Billet Plenum Plate with Integrated Solenoids
• 1x 10 lb. Nitrous Bottle with Lightning 500 Valve
• Stainless Steel Bottle Brackets
• Direct-Plug-In Fuel Line Adapter
• Stainless Steel Braided N2O Line
• TPS Autolearn Switch
• Master Arming Switch, Relay, and Relay Harness
• Full Jet Kit and Mounting Hardware

Product Description

The Nitrous Express 20959-10 is a complete nitrous plate system built specifically for 2021-2026 Ford F-150 trucks with the 5.0L Coyote engine. Its Spraybarless billet plate bolts directly between the throttle body and intake, with solenoids integrated right into the plate for a clean, factory-look installation rather than a bolt-on maze of hoses and brackets.

A direct-plug-in fuel line adapter means the factory fuel lines don't need to be cut to complete the install, and the included TPS Autolearn switch keeps things safe and automatic - nitrous only activates at wide-open throttle and shuts off the moment you're off the gas. The system ships with jetting for 35 through 250 horsepower, giving plenty of room to start conservative and work up as the rest of the combination is dialed in.

The included 10 lb. bottle comes fitted with Nitrous Express's billet aluminum Lightning 500 valve and stainless steel brackets, and the kit rounds out with a stainless braided N2O line, master arming switch, relay, and relay harness - everything needed for a complete installation on a 5.0 Coyote-powered F-150 without hunting down additional parts separately.
