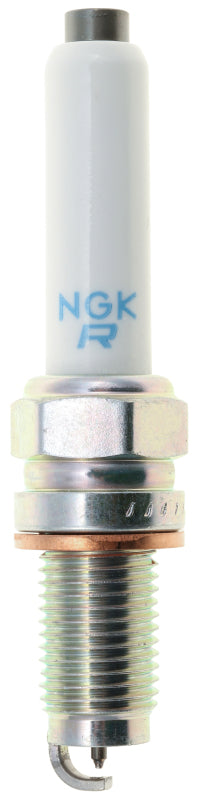

NGK 95463 PKER7A8EGS Laser Platinum Spark Plug for VW Audi Seat Skoda 1.0 TSI

Vehicle Fitment

• 2015-2023 Audi A1 (8X / GB) (1.0 TFSI, 3-Cylinder Turbo, FWD)
• 2016-2023 Audi Q2 (1.0 TFSI, 3-Cylinder Turbo, FWD)
• 2015-2020 Volkswagen Golf MK7 / MK7.5 (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2017-2023 Volkswagen Polo MK6 (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2018-2023 Volkswagen T-Cross (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2017-2023 Volkswagen T-Roc (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2016-2020 SEAT Leon MK3 (5F) (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2017-2023 SEAT Ibiza MK5 (6P) (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2017-2023 SEAT Arona (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2015-2023 Skoda Fabia MK3 / MK4 (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2019-2023 Skoda Scala (1.0 TSI, 3-Cylinder Turbo, FWD)
• 2019-2023 Skoda Kamiq (1.0 TSI, 3-Cylinder Turbo, FWD)

Fitment Notes

• OEM VAG cross-reference: 04E 905 602 / 04E 905 612 / 04E 905 612C
• Fits EA211 1.0 TSI 3-cylinder turbocharged engines only - engine codes: CHZB, CHZC, CHZA
• 3 plugs required per vehicle (3-cylinder engine)
• Does not fit 1.4 TSI or 1.5 TSI EA211 variants - those use a different part number
• Does not fit EA111 engines (older pre-MQB 1.0 TSI platform)
• Pre-gapped at 0.030" (0.8mm); verify against your vehicle's service manual before installation
• Always verify fitment using your engine code before ordering

Features

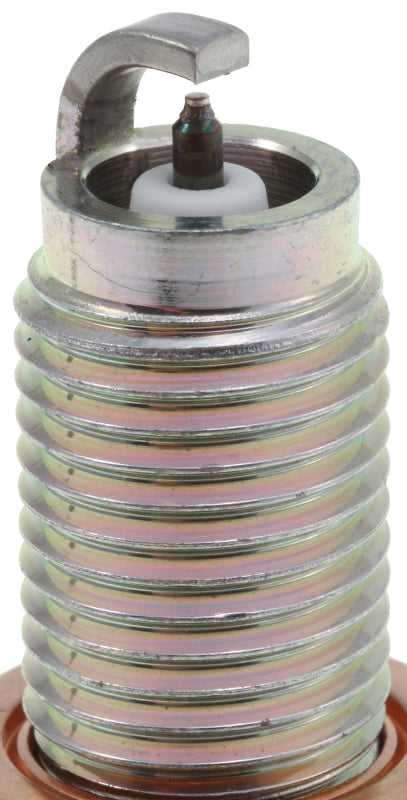

• Laser-welded platinum center electrode delivers stable, consistent combustion in the 1.0 TSI 3-cylinder turbo application
• Platinum-tipped ground electrode ensures even wear and extended service life in modern distributorless ignition systems
• Trivalent metal shell plating delivers superior anti-corrosion and anti-seizing protection
• Pure alumina silicate ceramic insulator provides superior strength and heat transfer
• 98% pure copper core aids heat dissipation across a wide heat range
• Triple seals prevent combustion gas leakage around the plug shell

Specifications

• NGK Part Number: PKER7A8EGS
• Plug Type: Laser Platinum (Dual Platinum)
• Thread Diameter: 12mm
• Thread Pitch: 1.25mm
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Seat Type: Gasket (Flat)
• Terminal Type: Cup (Ring-Type Connector)
• Center Electrode: Platinum Fine Wire
• Ground Electrode: Standard Platinum
• Resistor Value: 1K Ohm
• Heat Range: 7
• Pre-Set Gap: 0.030" (0.8mm)
• Torque Spec - Cast Iron Head: 10.8-18 lb-ft
• Torque Spec - Aluminum Head: 10.8-14.5 lb-ft

Included Components

• 1x NGK PKER7A8EGS Laser Platinum Spark Plug (95463)

Product Description

The NGK 95463 (PKER7A8EGS) is the OEM-specified Laser Platinum spark plug for Volkswagen Group vehicles equipped with the EA211 1.0 TSI 3-cylinder turbocharged engine, covering the Audi A1 and Q2, VW Golf MK7, Polo MK6, T-Cross, and T-Roc, SEAT Leon, Ibiza, and Arona, and Skoda Fabia, Scala, and Kamiq. It replaces OEM VAG part numbers 04E 905 602 and 04E 905 612. Three plugs are required per vehicle.

Buyers must confirm their vehicle is equipped with the EA211 1.0 TSI 3-cylinder engine before ordering, as several models in this lineup are also offered with 1.4 TSI 4-cylinder and 1.5 TSI 4-cylinder engines that require different plugs. This plug installs as a direct OEM replacement requiring no modifications.
