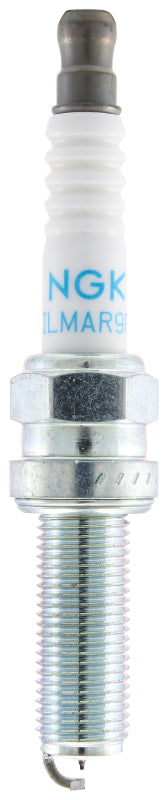

NGK 96107 SILMAR9F9 Laser Iridium Spark Plug for 2020-2024 Kawasaki Teryx KRX

Vehicle Fitment

• 2020-2024 Kawasaki Teryx KRX 1000 (KRF1000A, Base)
• 2021-2024 Kawasaki Teryx KRX 1000 Trail Edition (KRF1000B)
• 2021-2024 Kawasaki Teryx KRX 1000 Special Edition (KRF1000C)
• 2021, 2023-2024 Kawasaki Teryx KRX 1000 eS (KRF1000D)
• 2023-2024 Kawasaki Teryx KRX-4 1000 eS (KRT1000A)
• 2023-2024 Kawasaki Teryx KRX-4 1000 eS SE (KRT1000B)
• 2023-2024 Kawasaki Teryx KRX-4 1000 SE (KRT1000C)

Fitment Notes

• OEM Kawasaki cross-reference: 92070-0721
• 2 plugs required per vehicle (parallel-twin 999cc engine)
• Fits all 2-seat KRX 1000 and 4-seat KRX-4 1000 variants sharing the same engine platform
• Pre-gapped at 0.036"-0.039" (0.9-1.0mm); always verify gap before installation
• No automotive fitment - UTV/powersports application only

Features

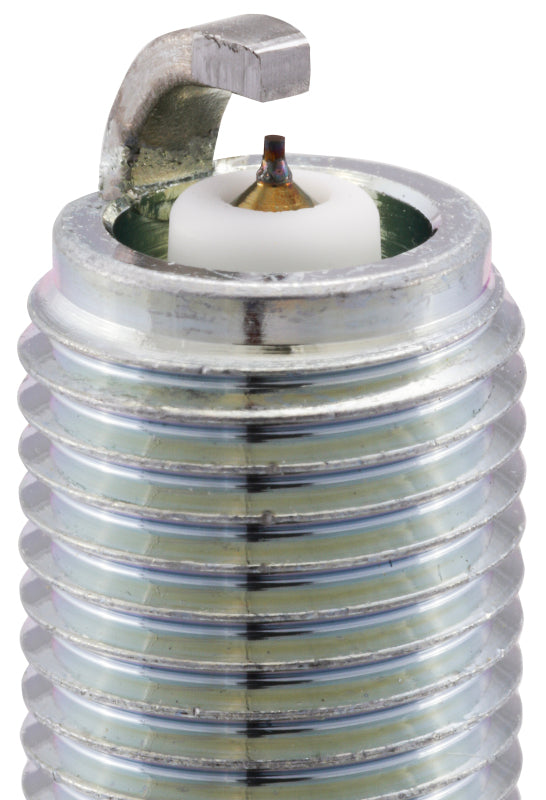

• Fine-wire iridium center electrode (0.6mm) for consistent, high-energy spark in the KRX 1000's high-revving parallel-twin engine
• Square platinum taper-cut ground electrode for extended wear resistance and reliable ignition under off-road demands
• Trivalent metal shell plating delivers superior anti-corrosion and anti-seizing protection in harsh trail environments
• Pure alumina silicate ceramic insulator provides superior strength and heat transfer
• 98% pure copper core for wide heat range capability and efficient heat dissipation
• Triple seals prevent combustion gas leakage around the plug shell

Specifications

• NGK Part Number: SILMAR9F9
• Thread Diameter: 10mm
• Thread Pitch: 1.0mm
• Reach: 26.5mm (1.04")
• Hex Size: 9/16" (14mm)
• Seat Type: Gasket (Flat)
• Terminal Type: Solid (Non-Removable Nut)
• Pre-Set Gap: 0.039" (1.0mm)
• Center Electrode: Iridium Fine Wire, 0.6mm (Non-Projected)
• Ground Electrode: Platinum, Square, Taper Cut
• Resistor Value: 5K Ohm
• Heat Range: 9
• Torque Spec - Cast Iron Head: 7.2-10.8 lb-ft
• Torque Spec - Aluminum Head: 7.2-8.7 lb-ft

Included Components

• 1x NGK SILMAR9F9 Laser Iridium Spark Plug (96107)

Product Description

The NGK 96107 (SILMAR9F9) is the OEM-specified Laser Iridium spark plug for the Kawasaki Teryx KRX 1000 (2-seat) and Teryx KRX-4 1000 (4-seat) side-by-side UTVs from 2020 onward, replacing Kawasaki OEM part number 92070-0721. Two plugs are required per vehicle, as both the KRX 1000 and KRX-4 1000 share the same 999cc parallel-twin engine platform.

This plug installs as a direct OEM replacement requiring no modifications. The fine-wire iridium center electrode and platinum ground electrode deliver reliable ignition across the wide rpm range of the KRX's high-performance side-by-side application, from tight trail riding to high-speed open terrain. Always verify the gap before installation.
