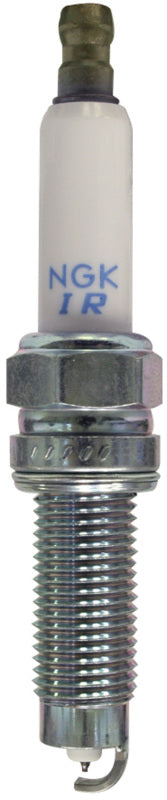

NGK 90909 ILZKR8C8G Laser Iridium Spark Plug for Hyundai Elantra Kia Forte 2.0

Vehicle Fitment

• 2016-2020 Hyundai Elantra (Eco, SE, SEL, Sport, Value Edition, Limited, 2.0L I4 / Nu)
• 2018-2021 Hyundai Kona (SE, SEL, SEL Plus, Limited, Ultimate, Night, 2.0L I4)
• 2019-2021 Hyundai Veloster (Base, Premium, Turbo, Turbo R-Spec, Turbo Ultimate, 2.0L I4 / Turbo)
• 2017-2024 Kia Forte (FE, LX, LXS, GT-Line, EX, GT, 2.0L I4)
• 2020 Kia Forte5 (2.0L I4)
• 2020-2024 Kia Soul (LX, S, EX, GT-Line, GT-Line Turbo, Turbo, X-Line, 2.0L I4)
• 2021-2024 Kia Seltos (LX, S, EX, SX, Nightfall Edition, X-Line, 2.0L I4)

Fitment Notes

• Fits 2.0L I4 (Nu / MPI / GDI) engine variants only - does not fit 1.6L turbocharged applications on the same platforms (use NGK 97080 for 1.6T engines).
• Hyundai Veloster Turbo fitment confirmed for 2019-2021 model years with the 1.6T engine - verify engine code before ordering.
• Note the unique 12mm thread diameter and 26.5mm (1.04") extended reach - different from standard 14mm plugs. Do not substitute with a standard-reach plug.
• Sold individually (1x per unit). Purchase 4 plugs per vehicle for all 4-cylinder applications listed.

Features

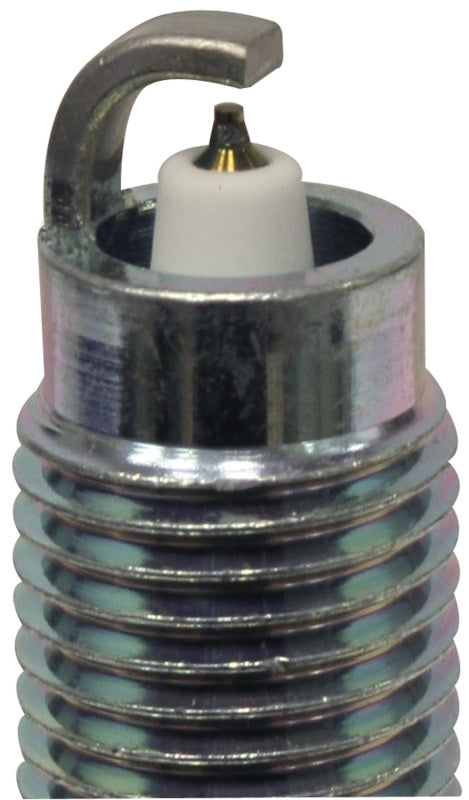

• Fine wire iridium center electrode for superior ignitability and consistent spark with minimal voltage demand
• Platinum-tipped ground electrode for slow, even wear and stable gap maintenance over the plug's service life
• Trivalent metal plating provides superior anti-corrosion and anti-seizing protection for easy removal at service intervals
• High-grade pure alumina ceramic insulator with copper core for optimal heat dissipation and reliable cold starts
• OE or OE-equivalent replacement - matches Hyundai/Kia OEM part number 18867-09095

Specifications

• Part Number: ILZKR8C8G | Stock Number: 90909
• Center Electrode Tip: Iridium (Fine Wire) | Ground Electrode Tip: Standard (Platinum pad)
• Center Electrode Core: Copper | Ground Electrode Core: Copper
• Thread Diameter: 12.0mm | Thread Pitch: N/A | Reach: 26.5mm (1.04 in)
• Hex Size: 5/8 in | Seat Type: Flat (Gasket) | Insulator Height: 51.00mm
• Pre-Set Gap: 0.031 in (0.8mm) | Heat Range: 8 | Resistance: 5,000 ohms
• Terminal Type: Stud | Ground Electrode Quantity: 1
• Torque - Cast Iron Head: 10.8-18 lb-ft | Aluminum Head: 10.8-14.5 lb-ft
• OEM Cross Reference: Hyundai/Kia 18867-09095

Included Components

• 1x NGK ILZKR8C8G Laser Iridium Spark Plug (Stock No. 90909), pre-gapped at 0.031 in

Product Description

The NGK 90909 (ILZKR8C8G) is a Laser Iridium spark plug engineered as an OE or OE-equivalent replacement for the 2.0L I4 engines found across a wide range of Hyundai and Kia platforms, including the Elantra, Kona, Veloster, Forte, Soul, and Seltos. The fine wire iridium center electrode delivers consistent, high-energy spark with low voltage demand, while the platinum ground electrode resists wear and maintains a stable gap throughout the plug's service life.

Note the unique specifications: a 12mm thread diameter and extended 26.5mm reach are specific to the Nu-family 2.0L Hyundai/Kia engine and are not interchangeable with standard 14mm plugs. The pre-set gap of 0.031 in and heat range 8 match the factory specification - do not re-gap unless instructed by the vehicle manufacturer. This plug replaces Hyundai/Kia OEM part 18867-09095. Sold individually; purchase 4 per vehicle.
