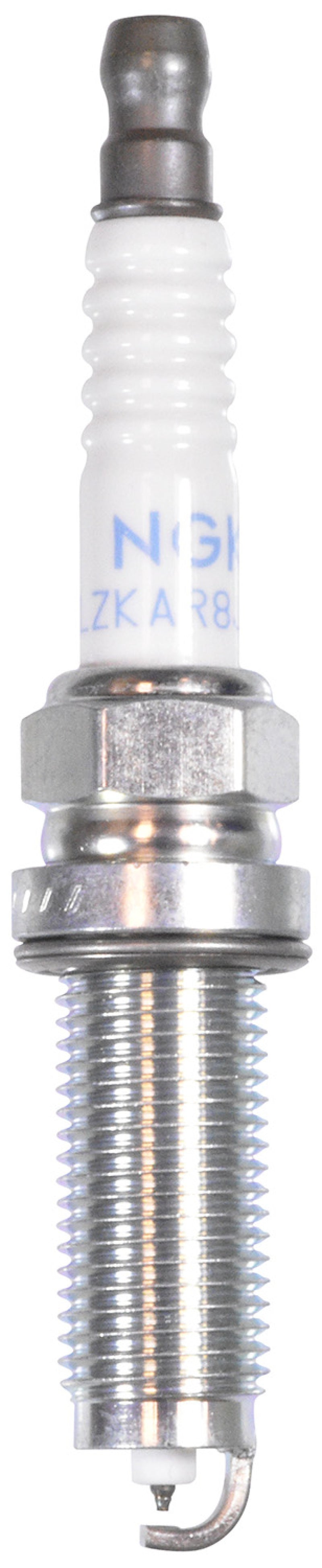

NGK 95660 ILZKAR8J8SY Laser Iridium Spark Plug for Honda Civic CR-V Accord Volvo

Vehicle Fitment

• 2017-2021 Honda Civic Si (1.5L I4 Turbo, FWD)
• 2017-2022 Honda CR-V (EX, EX-L, Touring, Sport, 1.5L I4 Turbo, FWD/AWD)
• 2018-2022 Honda Accord (LX, Sport, EX, EX-L, Touring, 1.5L and 2.0L I4 Turbo, FWD)
• 2022-2023 Acura Integra (Base, A-Spec, Type S, 1.5L I4 Turbo, FWD)
• 2019-2024 Acura RDX (Base, A-Spec, Advance, PMC, 2.0L I4 Turbo, FWD/AWD)
• 2015-2024 Volvo S60 (T5, T6, T8, B5, B6, Recharge Polestar, 2.0L I4 Turbo/Hybrid)
• 2015-2016 Volvo S80 (2.0L I4 Turbo)
• 2017-2024 Volvo S90 (T5, T6, T8, B5, B6, Recharge, 2.0L I4 Turbo/Hybrid)
• 2015-2024 Volvo V60 (T5, T6, T8, B5, Recharge Polestar, 2.0L I4 Turbo/Hybrid)
• 2017-2024 Volvo V60 Cross Country (B5, 2.0L I4 Turbo)
• 2017-2018 Volvo S60 Cross Country (2.0L I4 Turbo)
• 2018-2024 Volvo V90 / V90 Cross Country (T5, T6, B5, B6, 2.0L I4 Turbo/Hybrid)
• 2019-2024 Volvo XC40 (B4, B5, T5, Recharge, 2.0L I4 Turbo/Hybrid, FWD/AWD)
• 2015-2024 Volvo XC60 (T5, T6, T8, B5, B6, Recharge Polestar, 2.0L I4 Turbo/Hybrid, FWD/AWD)
• 2015-2016 Volvo XC70 (2.0L I4 Turbo)
• 2016-2024 Volvo XC90 (T5, T6, T8, B5, B6, Recharge, 2.0L I4 Turbo/Hybrid, FWD/AWD)

Fitment Notes

• OEM Honda cross-reference: 12290-5PA-A01 / 12290-5PA-A010-M1
• OEM Volvo cross-reference: 31380014
• 4 plugs required per vehicle (4-cylinder engine)
• Fits Honda's 1.5L L15B7 turbocharged and Acura's 2.0L K20C1 turbocharged engines
• Fits Volvo's Drive-E 2.0L inline-four engine across T5, T6, T8, B5, B6, and Recharge (Polestar) variants
• Does not fit the standard non-turbo 2016+ Honda Civic 1.5T (Non-Si) - that model uses NGK 95112 (ILZKAR8H8S)
• Pre-gapped at 0.030" (0.75mm); verify against your vehicle's service manual before installation

Features

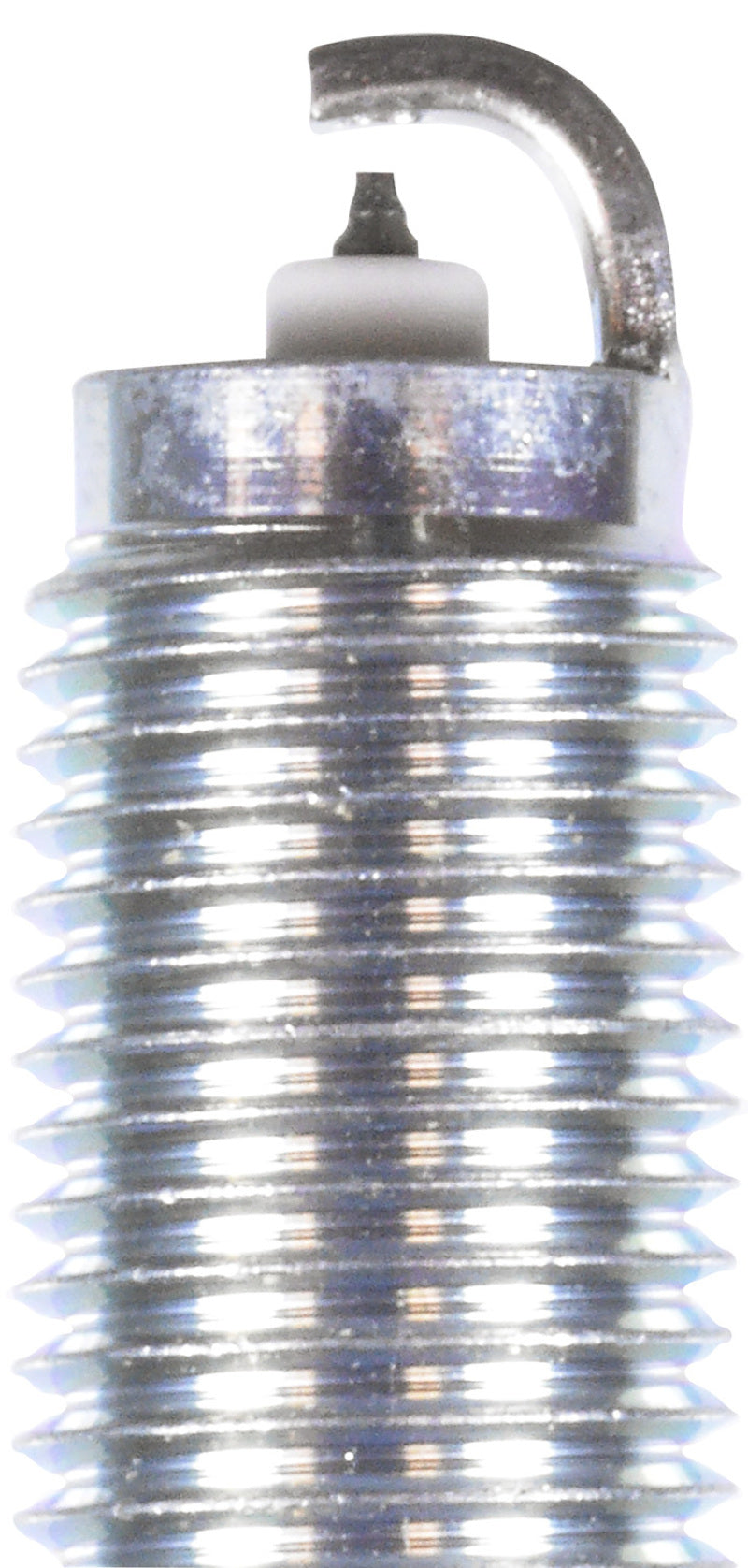

• Fine-wire laser-welded iridium center electrode for consistent, high-energy spark in high-boost turbocharged applications
• Platinum-tipped ground electrode ensures even wear and long service life in modern coil-on-plug ignition systems
• Trivalent metal shell plating delivers superior anti-corrosion and anti-seizing protection
• Pure alumina silicate ceramic insulator provides superior strength and efficient heat transfer
• 98% pure copper core aids heat dissipation across demanding turbocharged operating conditions
• Triple seals prevent combustion gas leakage around the plug shell

Specifications

• NGK Part Number: ILZKAR8J8SY
• Thread Diameter: 12mm
• Thread Pitch: 1.25mm
• Reach: 26.5mm (1.04")
• Hex Size: 14mm Bi-Hex
• Seat Type: Gasket (Flat)
• Terminal Type: Solid (Non-Removable Nut)
• Pre-Set Gap: 0.030" (0.75mm)
• Center Electrode: Iridium Fine Wire
• Ground Electrode: Standard Platinum
• Resistor Value: 5K Ohm
• Heat Range: 8
• Torque Spec - Cast Iron Head: 10.8-18 lb-ft
• Torque Spec - Aluminum Head: 10.8-14.5 lb-ft

Included Components

• 1x NGK ILZKAR8J8SY Laser Iridium Spark Plug (95660)

Product Description

The NGK 95660 (ILZKAR8J8SY) is an OEM-grade Laser Iridium spark plug covering Honda's 1.5L and 2.0L turbocharged four-cylinder platforms - used in the Civic Si, CR-V, Accord, Acura Integra, and Acura RDX - as well as Volvo's Drive-E 2.0L inline-four engine across the entire S60, S90, V60, V90, XC40, XC60, and XC90 lineup from 2015 onward. It replaces Honda OEM part number 12290-5PA-A01 and Volvo OEM part number 31380014. Four plugs are required per vehicle.

Buyers should note that the standard (Non-Si) 2016-2021 Honda Civic 1.5T uses a different plug - NGK 95112 (ILZKAR8H8S) - gapped slightly wider at 0.032". The NGK 95660 is the correct OEM plug for the Civic Si, CR-V, and Accord 1.5T variants, which use the tighter 0.030" gap. This plug installs as a direct OEM replacement requiring no modifications.
