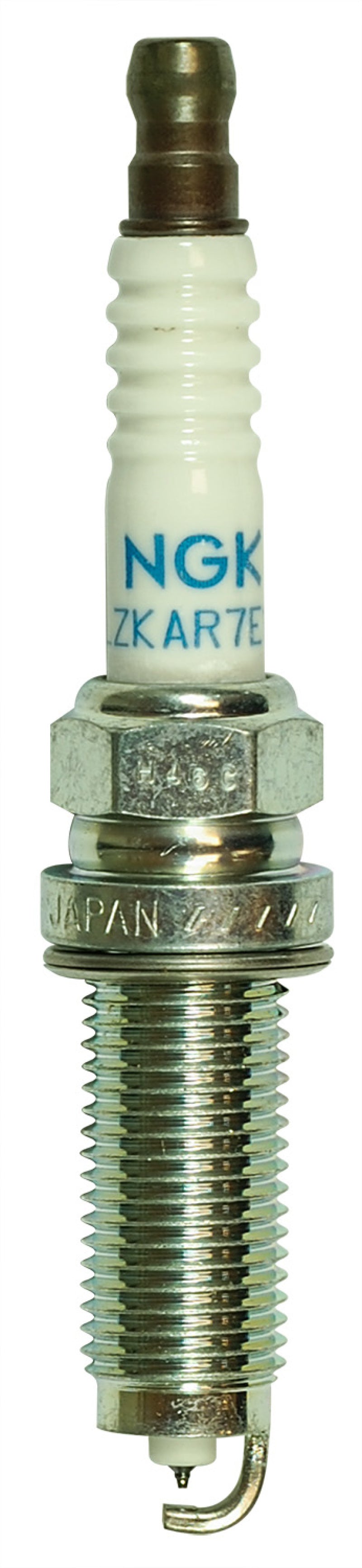

NGK 96509 Laser Iridium Spark Plug for 2014-2017 Honda Accord 2.0L I4 Hybrid

Vehicle Fitment

• 2014-2017 Honda Accord (9th Gen, 2.0L I4 Hybrid LFA, FWD)
• 2018-2025 Honda CR-V (5th Gen, 2.0L I4 Hybrid LFB1, FWD/AWD)
• 2019-2023 Honda CR-V (5th Gen, 2.0L I4 Hybrid LFB2, AWD)
• 2023-2025 Honda CR-V (6th Gen, 2.0L I4 e:HEV LFB51, FWD/AWD)
• 2017-2025 Honda Clarity Plug-In Hybrid (1.5L I4 Hybrid LEB-H4, FWD)
• 2014-2020 Honda Fit (1.3L I4 L13B, FWD)
• 2014-2020 Honda Fit (1.5L I4 L15B/L15B3, FWD)
• 2017-2022 Honda Stepwgn (2.0L I4 Hybrid LFA, FWD/4WD)

Fitment Notes

• NGK 96509 corresponds to service number ILZKAR7E11S and Honda OE number 12290-5K0-A01.
• Fitment is engine-code specific; verify the exact engine and OE spark-plug number before ordering.
• Honda Accord coverage is limited to the 2.0L hybrid powertrain for the listed 2014-2017 range.
• Honda CR-V applications listed are limited to the specified 2.0L hybrid powertrains.
• Conventional 1.5L and 2.0L gasoline CR-V engines use different spark-plug specifications.
• 2026 Honda vehicle fitment is not confirmed for NGK 96509.
• Sold individually; four-cylinder applications require 4x plugs for a complete engine set.

Features

• NGK Laser Iridium spark plug engineered for OE applications.

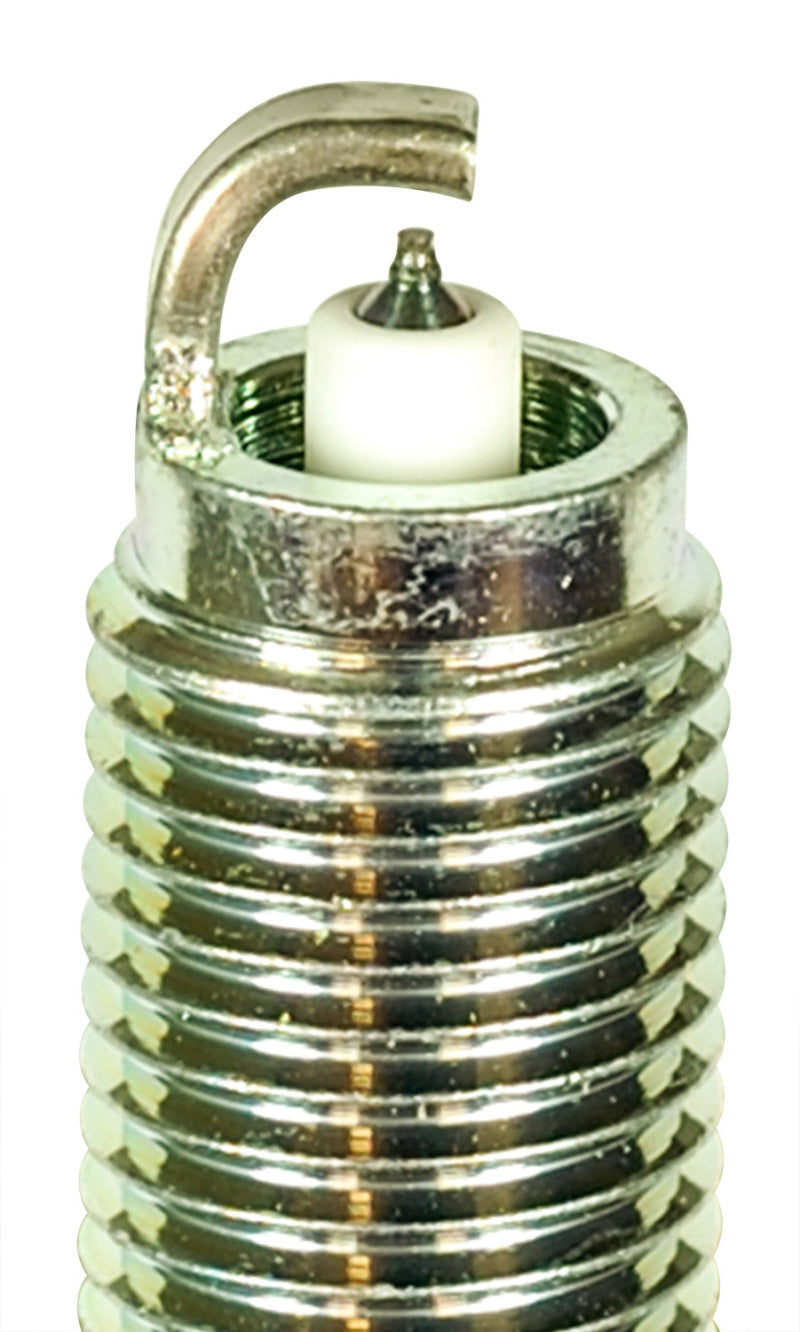

• Fine-wire iridium center electrode provides high ignitability and wear resistance.
• Platinum ground-electrode tip helps reduce electrode wear.
• Laser-welded precious-metal electrodes provide consistent spark performance.
• 98% pure copper core promotes efficient heat dissipation and conductivity.
• High-grade alumina ceramic insulator provides strong dielectric and thermal resistance.
• Trivalent metal plating provides corrosion resistance and anti-seizing properties.
• 5 kOhm resistor helps suppress ignition-system electrical interference.
• Single J-gap ground-electrode design provides the specified spark path.
• Flat gasket seat provides OE-style combustion-chamber sealing.
• Long-projection design is matched to compatible Honda combustion-chamber geometry.
• Application-specific dimensions provide direct-fit installation.

Specifications

• Brand: NGK
• Part Number: 96509
• Service Number: ILZKAR7E11S
• Product Type: Laser Iridium Spark Plug
• OE Reference: Honda 12290-5K0-A01
• Thread Size: M12 x 1.25
• Thread Diameter: 12 mm
• Thread Reach: 26.5 mm
• Hex Size: 14 mm
• Seat Type: Flat / Gasket
• Center Electrode Material: Iridium
• Center Electrode Design: Fine Wire
• Ground Electrode Material: Nickel with Platinum Tip
• Ground Electrode Quantity: 1x
• Ground Configuration: J-Gap
• Heat Range: NGK 7
• Pre-Gap: 1.1 mm / 0.044 in.
• Resistance: 5 kOhm
• Terminal Type: Fixed / Non-Removable Nut
• Insulator Material: Ceramic
• Center Electrode Core: Copper
• Center Electrode Projection: Long Projection
• Washer: Included
• Quantity: 1x Spark Plug

Included Components

• 1x NGK 96509 Laser Iridium Spark Plug

Product Description

The NGK 96509 Laser Iridium spark plug, also identified as ILZKAR7E11S, is an OE-style replacement spark plug for selected Honda gasoline-hybrid powertrains. It uses a fine-wire iridium center electrode with a platinum-protected ground electrode to provide reliable ignition, consistent combustion, and extended electrode durability. The plug cross-references Honda OE number 12290-5K0-A01.

The 96509 features an M12 x 1.25 thread, 26.5 mm reach, 14 mm hex, flat gasket seat, NGK heat range 7, and a 1.1 mm pre-gap. Its 5 kOhm resistor helps suppress electrical interference, while the 98% pure copper core promotes efficient heat transfer. The high-grade ceramic insulator provides thermal and dielectric protection, and trivalent metal plating helps resist corrosion and thread seizure.

Verified applications include the 2.0L hybrid Honda Accord, CR-V hybrid, Clarity Plug-In Hybrid, Fit, and Stepwgn configurations listed above. Because several of these vehicles were also offered with different gasoline engines, the exact engine code and OE spark-plug specification should be confirmed before installation. The plug is sold individually.
