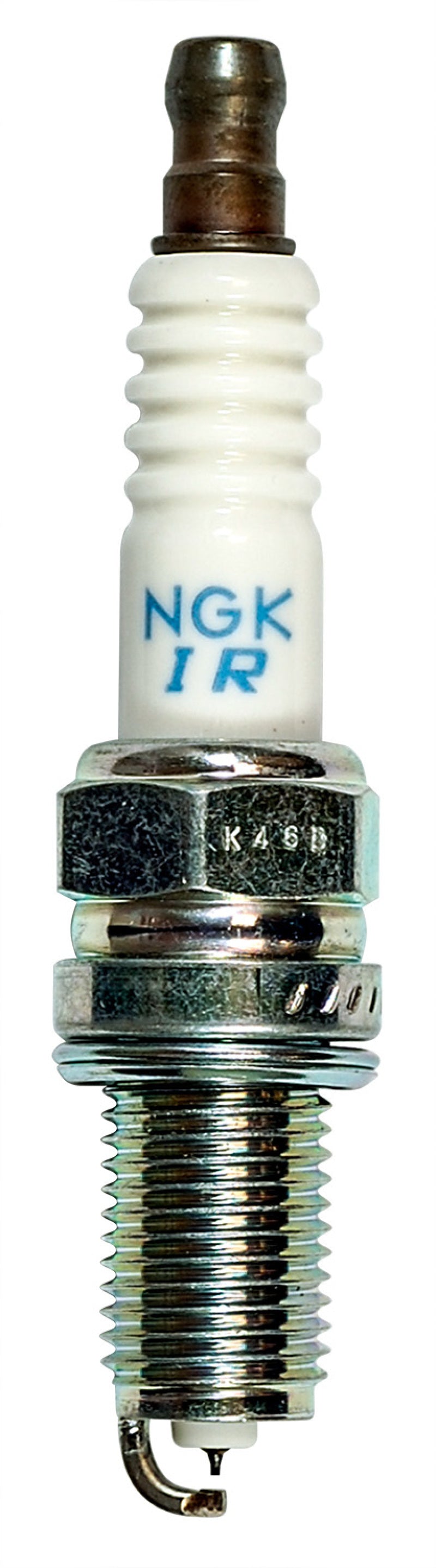

NGK 93618 SIKR9A7 Laser Iridium Spark Plug for Fiat 500/500L/500X/124 Dodge Jeep

Vehicle Fitment

• 2012-2019 Fiat 500 (Abarth, Abarth Cabrio, Sport, Turbo, Lounge, Pop, c Lounge, c Pop, 1957 Edition, 1.4L I4 Turbo)
• 2014-2020 Fiat 500L (Lounge, Pop, Trekking, Urbana, 1.4L I4 Turbo)
• 2016-2018 Fiat 500X (Lounge, Pop, Trekking, Urbana, 1.4L I4 Turbo)
• 2017-2020 Fiat 124 Spider (Abarth, Classica, Lusso, 1.4L I4 Turbo)
• 2013-2016 Dodge Dart (Aero, GT, Limited, R/T, Rallye, SE, SXT, SXT Sport, 1.4L I4 Turbo)
• 2015-2018 Jeep Renegade (Sport, Latitude, Limited, Trailhawk, 1.4L I4 Turbo)

Fitment Notes

• OEM FCA/Chrysler cross-references: 68070507AC / SP070507AC / SPSP070507AC
• Fits all FCA 1.4L MultiAir turbocharged I4 engine applications listed above
• Does not fit naturally aspirated (non-turbo) 1.4L Fiat 500 variants
• 4 plugs required per vehicle
• Pre-gapped at 0.028" (0.7mm); verify against your vehicle's service manual before installation

Features

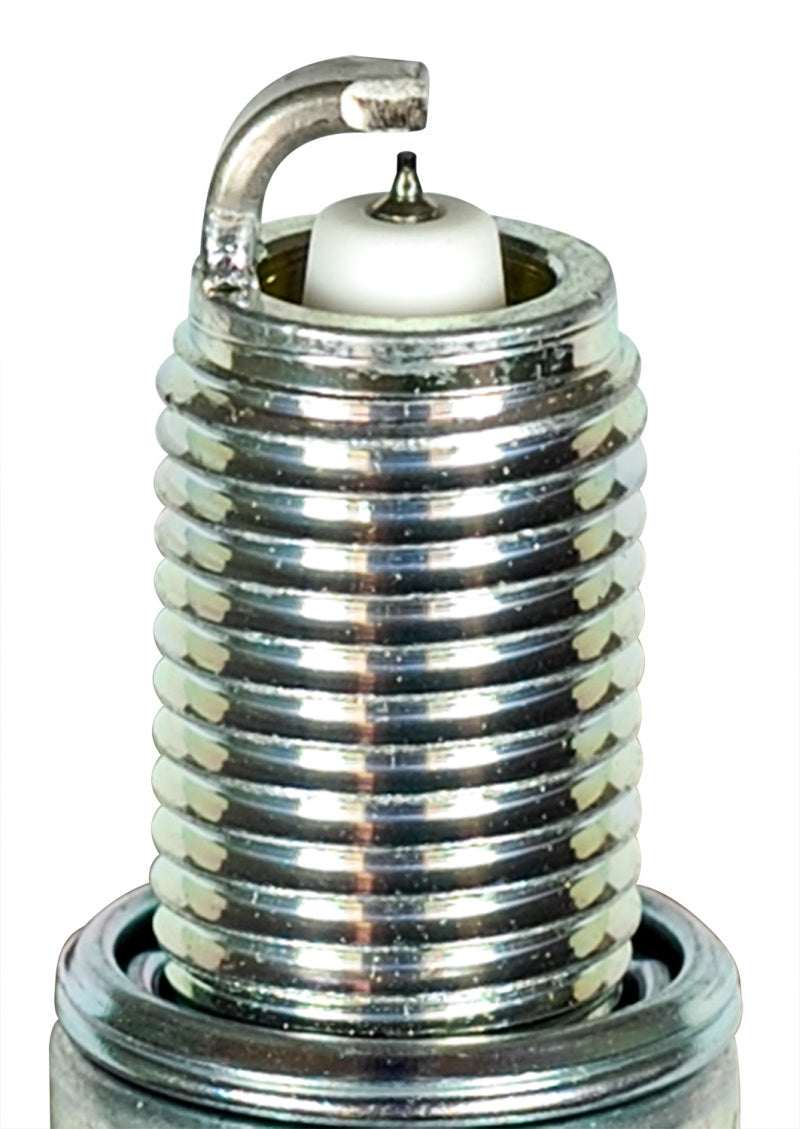

• Fine-wire iridium center electrode (0.6mm projected tip) for consistent, high-energy spark in turbocharged applications
• Square platinum taper-cut ground electrode reduces quenching and lowers required ignition voltage
• Trivalent metal shell plating delivers superior anti-corrosion and anti-seizing protection
• Pure alumina silicate ceramic insulator provides superior strength and heat transfer
• 98% pure copper core aids heat dissipation across the tight 0.028" gap specification
• Triple seals prevent combustion gas leakage around the plug shell

Specifications

• NGK Part Number: SIKR9A7
• Thread Diameter: 12mm
• Thread Pitch: 1.25mm
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Seat Type: Gasket (Flat)
• Terminal Type: Solid (Non-Removable Nut)
• Pre-Set Gap: 0.028" (0.7mm)
• Center Electrode: Iridium Fine Wire, 0.6mm (Projected)
• Ground Electrode: Square Platinum, Taper Cut
• Resistor Value: 5K Ohm
• Heat Range: 9
• Torque Spec - Cast Iron Head: 10.8-18 lb-ft
• Torque Spec - Aluminum Head: 10.8-14.5 lb-ft

Included Components

• 1x NGK SIKR9A7 Laser Iridium Spark Plug (93618)

Product Description

The NGK 93618 (SIKR9A7) is the OEM-specified Laser Iridium spark plug for FCA vehicles equipped with the 1.4L MultiAir turbocharged four-cylinder engine, covering the Fiat 500, 500L, 500X, and 124 Spider, along with the Dodge Dart and Jeep Renegade. It directly replaces Chrysler OEM part numbers 68070507AC, SP070507AC, and SPSP070507AC. Four plugs are required per vehicle.

The tight pre-set gap of 0.028" (0.7mm) is specific to the FCA 1.4L MultiAir turbo engine and should not be altered beyond OEM specification. This plug installs as a direct OEM replacement requiring no modifications. Buyers should confirm their Fiat 500 is a turbocharged variant, as naturally aspirated 1.4L 500 models use a different plug.
