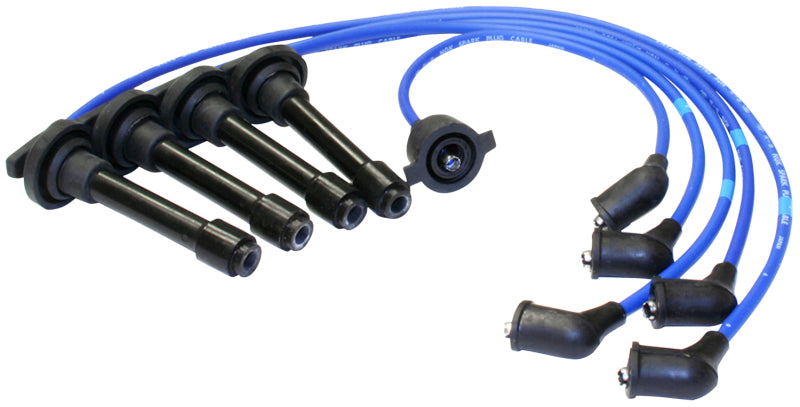

NGK 9578 RC-HE62 Spark Plug Wire Set for 1992-1997 Honda Accord/Prelude 2.2L

Vehicle Fitment

• 1992-1997 Honda Accord (DX, LX, EX, SE, Value Package, 2.2L I4, F22A1 / F22A6 / F22B2, SOHC/DOHC, FWD)
• 1992-1996 Honda Prelude S (2.2L I4, F22A1, SOHC, FWD)

Fitment Notes

• Fits Honda F22A1, F22A6, and F22B2 engine codes only - does not fit H22A DOHC VTEC Prelude Si/VTEC/Type SH variants
• 1 set (4 wires) required per vehicle
• Distributor-based ignition system - not compatible with coil-on-plug (COP) applications
• Replaces OEM wire sets and cross-references: 7517, 7523, 55003, 55011, 700800, CH7499, CH7499U, and others

Features

• Variable pitch magnetic core wire winding provides superior EMI/RFI noise suppression across the full frequency spectrum
• Ultra-low resistance 7mm cable design delivers stronger, more consistent spark energy than conventional carbon core wires
• High-temperature blue silicone outer jacket resists underhood heat up to 482°F, oil, moisture, and chemical exposure
• High-density fiberglass braiding reinforcement over EPDM/silicone inner insulation for superior dielectric strength and cable tensile strength
• Stainless steel terminals with up to 3 serrated crimps for maximum retention strength and vibration resistance
• Locking C-shaped spring clip with corrosion-resistant plating ensures a secure, positive spark plug terminal connection

Specifications

• NGK Part Number: RC-HE62
• Wire Diameter: 7mm
• Core Material: Magnetic / Variable Pitch (fiberglass stranded core)
• Insulation Color: Blue
• Insulation Material: Silicone / EPDM
• Noise Suppression: Yes (EMI/RFI)
• Spark Plug Boot Type: OEM-spec, silicone-sealed
• Distributor Boot Type: Stock (Black silicone)
• Terminal Type: Stainless steel, multi-crimp

Included Components

• 4x Individual NGK RC-HE62 Spark Plug Wires (complete set)

Product Description

The NGK 9578 (RC-HE62) is an OEM-grade resistor spark plug wire set for the 1992-1997 Honda Accord and 1992-1996 Honda Prelude S, both equipped with the 2.2L F-series inline-four engine. One complete set of four wires is required per vehicle. This is a direct-fit replacement for distributor-based ignition systems and is not compatible with coil-on-plug applications.

NGK's variable pitch magnetic core technology scrambles and suppresses electrical interference across a wide frequency range, while the blue silicone jacket and high-density fiberglass reinforcement ensure long-term durability under demanding underhood conditions. Buyers should confirm their Prelude is the S trim with the SOHC F22A1 engine, as Prelude VTEC and Si models use the DOHC H22A engine, which requires a different wire set.
