Moroso 20961 Steel Oil Pan & Windage Tray Kit 2002-2021 Subaru WRX/STI EJ20/EJ25

Vehicle Fitment

• 2002-2014 Subaru Impreza WRX (EJ205, EJ255 - AWD)
• 2004-2021 Subaru Impreza WRX STI (EJ207, EJ257 - AWD)
• 2004-2013 Subaru Forester XT (EJ255, EJ257 - AWD)
• 2004-2009 Subaru Outback XT (EJ255 - AWD)
• 2004-2009 Subaru Legacy GT (EJ255 - AWD)

Fitment Notes

• Fits EJ20, EJ22, and EJ25 engine families only - does not fit the 2015-2021 WRX (FA20DIT engine)
• Does not fit naturally aspirated Forester, Legacy, Outback, or Impreza variants not equipped with an EJ turbo engine
• On earlier Subaru models (pre-2002), check chassis clearance and oil pan dimensions before ordering
• Oil pan mounting hardware (Moroso #38368 Stud Kit) is sold separately and required for installation
• Compatible with most popular aftermarket header combinations including APS, GT Spec, Tomei, and GReddy

Features

• Fully fabricated steel construction with a precision laser-cut oil pan rail for a rigid, leak-free sealing surface
• Integrated anti-slosh baffle maintains consistent oil supply to the pump pickup during hard acceleration, braking, and high-g cornering
• Included windage tray reduces oil aeration and crankshaft oil drag, improving horsepower output and oil pressure stability
• Included heavy-duty braced oil pump pickup with O-ring seal ensures reliable oil flow and resists vibration-induced loosening under high-RPM use
• 1/2" NPT sensor bung allows integration of an aftermarket oil temperature or pressure sender without additional drilling or tapping
• -8AN magnetic drain plug with O-ring seal captures metallic wear particles and provides a clean, drip-free oil change experience
• Compatible with the factory OEM dipstick - no custom dipstick tube required
• Durable black powder coat finish resists corrosion, heat, and under-hood contamination for long service life
• Engineered to clear most popular aftermarket header combinations without modification

Specifications

• Part Number: 20961
• Brand: Moroso Performance Products
• Material: Steel
• Sump Style: Wet Sump, Deep Sump
• Capacity: 6 Quarts (does not include oil filter volume)
• Depth: 6-7/8 in.
• Drain Plug: -8AN Magnetic with O-Ring Seal
• Sensor Bung: 1/2 in. NPT
• Finish: Black Powder Coat
• Engine Application: Subaru EJ20, EJ22, EJ25
• Drivetrain: AWD
• Oil Pan Hardware: Moroso #38368 Stud Kit (sold separately)

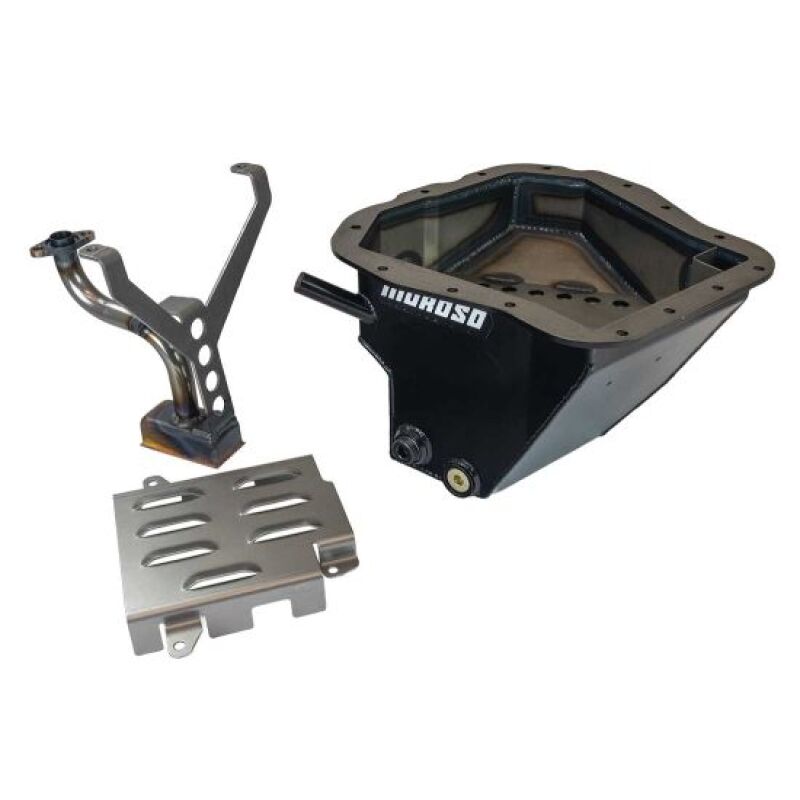

Included Components

• 1x Moroso 20961 Deep Sump Steel Oil Pan (6 qt, 6-7/8 in. deep)
• 1x Windage Tray
• 1x Heavy-Duty Braced Oil Pump Pickup with O-Ring
• 1x Windage Tray and Pickup Mounting Hardware Kit

Product Description

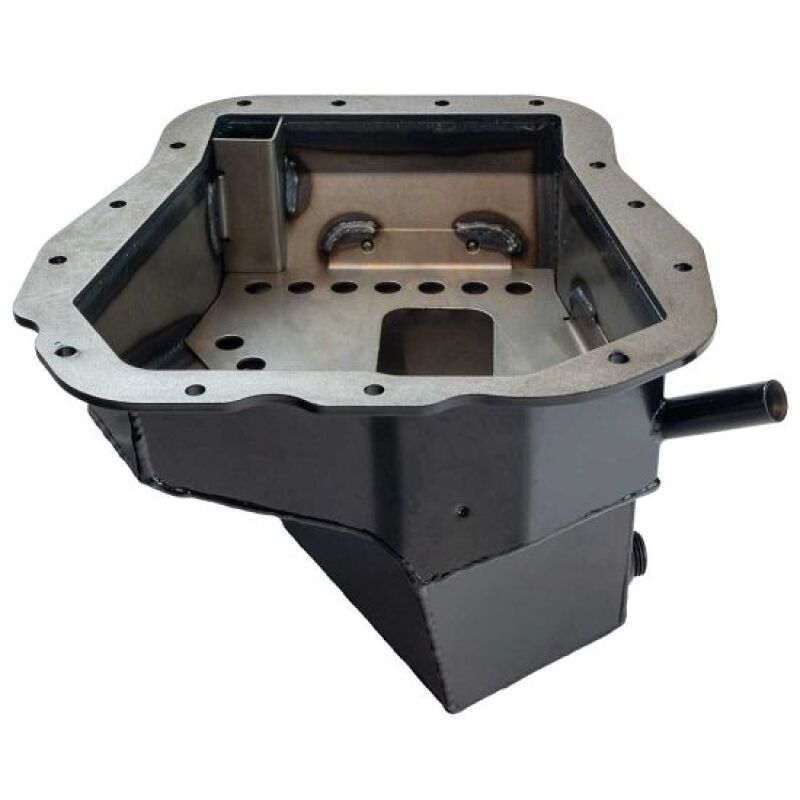

The Moroso 20961 is a fully fabricated deep sump steel oil pan kit engineered specifically for Subaru EJ-series turbocharged engines, covering the 2002-2014 WRX, 2004-2021 STI, 2004-2013 Forester XT, 2004-2009 Outback XT, and 2004-2009 Legacy GT. Built with a precision laser-cut steel rail, the 20961 provides a rigid, flat sealing surface that dramatically reduces the risk of oil pan leaks compared to stamped OEM pans, which are prone to warping at the rail. The 6-7/8" deep sump increases usable oil volume to 6 quarts, keeping oil temperatures lower and ensuring that the oil pump pickup remains submerged even during the lateral g-forces generated by aggressive road course driving or rally-stage competition.

What distinguishes the 20961 from Moroso's standard Subaru EJ steel pan (20966) is the complete oiling kit included in the box. The 20961 ships with a dedicated windage tray and a heavy-duty braced oil pump pickup - both engineered as a matched system with the pan. The windage tray shields the rotating assembly from oil thrown off the crankshaft, reducing parasitic drag and improving power output, while the integrated anti-slosh baffle actively directs oil toward the pump pickup area during hard braking and acceleration. The -8AN magnetic drain plug captures ferrous metal particles for early wear detection, and the 1/2" NPT sensor bung provides a ready-made port for an aftermarket oil temperature or pressure sender without additional fabrication.

Installation is straightforward on all supported EJ platforms. The pan is designed to retain the factory OEM dipstick and clear the most popular aftermarket header combinations used in the Subaru performance community, including APS, GT Spec, Tomei, and GReddy units. Note that the oil pan mounting hardware - Moroso Stud Kit #38368 - is sold separately and should be ordered alongside the 20961 for a complete installation. The 20961 is the ideal upgrade for any EJ-powered Subaru that sees track days, autocross, performance driving events, or simply demands the durability and oil control that the OEM pan cannot provide.
