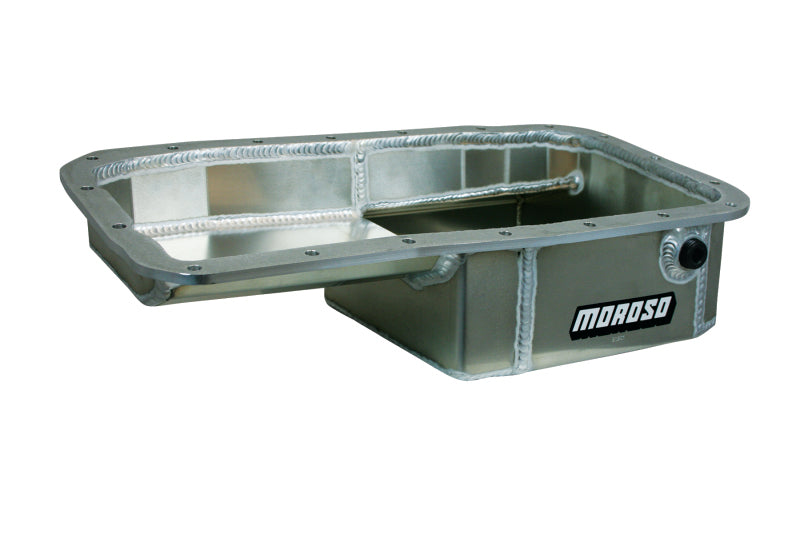

Moroso 20901 Drag Race Baffled Aluminum Oil Pan 5qt for Honda/Acura B16/B18/B20

Vehicle Fitment

• Honda/Acura B-Series Engines: B16A, B16A2, B16A3, B18A, B18B, B18C, B18C1, B18C5, B20B, B20Z

Fitment Notes

• Fits Acura VTEC, Non-VTEC, and Honda 1.6L B16A3 applications
• Works with OEM exhaust manifold and most aftermarket exhaust/header combinations
• Uses stock oil pan gasket (Moroso 93200 heavy-duty gasket available separately)
• Uses stock oil pump and pickup
• Maximum stroke with OE rod: 3.503 in
• Incompatible with 1-piece lower transmission brace found on Type-R engines (requires 2-piece steel brace)
• B18C girdle swap requires B18C/C1/C5 oil pickup due to taller girdle design

Features

• Drag race baffled design for street performance and strip use
• Dynamic trap door baffling controls oil under hard acceleration
• Kicked-out rear sump increases capacity and oil control
• Fully fabricated aluminum construction
• 1/4" thick pan rail for rigidity and sealing
• Driver side sump location
• Two 1/2" NPT bungs for turbo oil return and temperature sender
• Magnetic drain plug with extra washer included
• Keeps crankshaft free of excess oil for maximum power
• Includes mounting kit with hex-drive studs and serrated-face flare nuts

Specifications

• Part Number: 20901
• Oil Pan Type: Street/Strip, Drag Race Baffled
• Material: Aluminum
• Pan Rail Thickness: 1/4 in
• Sump Style: Wet Sump, Kicked-Out Rear
• Sump Location: Driver Side
• Oil Capacity: 5 Quarts
• Pan Depth: 5-5/8 in (5.625 in)
• Drain Plug Thread Size: 1/2-20
• NPT Bungs: (2) 1/2 in NPT
• Rear Main Seal Style: 1-Piece
• Finish: Natural Aluminum
• Gasket Included: No (Use Stock Gasket)
• Pickup Included: No (Use Stock Pickup)

Included Components

• Aluminum Oil Pan with Trap Door Baffling (1)
• Hex-Drive Studs
• Serrated-Face Flare Nuts
• Magnetic Drain Plug with Extra Washer
• Installation Instructions

Product Description

The Moroso 20901 drag race baffled aluminum oil pan delivers superior oil control for Honda and Acura B-Series engines in street performance and drag racing applications. Fully fabricated from aluminum with a 1/4" thick pan rail, this oil pan features a kicked-out rear sump design that increases capacity to 5 quarts while improving oil control under hard acceleration. The dynamic trap door baffling system keeps oil directed to the pickup and prevents the crankshaft from contacting excess oil, allowing the engine to spin freely and achieve its full power potential. Two 1/2" NPT bungs are included for plumbing turbo oil return lines and installing an oil temperature sender, making this pan ideal for forced induction builds. The driver side sump location and 5-5/8" depth provide excellent ground clearance while maintaining compatibility with OEM exhaust manifolds and most aftermarket header combinations. A complete mounting kit with hex-drive studs and serrated-face flare nuts ensures secure installation, while the included magnetic drain plug captures metal particles. Uses the stock oil pan gasket and stock oil pump with pickup for straightforward installation. Whether you're building a weekend warrior or a dedicated drag car, the Moroso 20901 provides the oil control needed for consistent performance.
