Moroso 63793 Aluminum Coolant Expansion Tank for 2001-2006 BMW E46 M3 Direct Fit

Vehicle Fitment

• 2001-2006 BMW M3 (E46 chassis - Coupe, Convertible, all trims including CSL)

Fitment Notes

• Direct bolt-in replacement for the factory 2-piece plastic coolant expansion tank - no drilling, welding, or bracket fabrication required.
• No cutting of factory coolant hoses is required. The Moroso 63793 accepts the factory clip-on hose directly, preserving OEM hose routing and length.
• Mounts in the factory location using existing hardware - no new mounting hardware is included or required.
• The included Moroso Racing Radiator Cap (P/N 63324) operates in the same pressure range as the factory BMW E46 M3 cap - no system pressure changes are introduced by this installation.
• The aluminum tank can be left in bare aluminum finish, polished, chromed, painted, or powder coated to match any build aesthetic - all finishing work must be completed before installation if desired.

Features

• Fabricated aluminum construction permanently replaces the factory 2-piece plastic expansion tank - which is well-documented to crack, leak, and fail without warning after years of heat cycling on the E46 M3.
• 100% pressure tested before leaving the factory to guarantee leak-free operation - a standard Moroso quality control procedure on all fabricated coolant expansion tanks.
• Billet aluminum filler neck will not strip, crack, or degrade like the plastic threaded neck on the OEM tank - provides a permanent, durable interface for the radiator cap.
• Moroso Racing Radiator Cap (P/N 63324) included - operates at the same stock pressure range as the BMW factory cap for direct, no-tune-required installation.
• Easy-read sight level integrated into the tank body allows quick visual inspection of coolant level without removing the cap - a feature absent on the OEM plastic tank.
• Accepts factory clip-on hose with no cutting required - retains full OEM hose routing and coolant system geometry.
• Finish is fully customizable: bare aluminum, polished, chromed, painted, or powder coated - suitable for stock-look restorations or high-visibility show builds.
• Hand-fabricated and pressure tested at Moroso's facility in Guilford, Connecticut.

Specifications

• Part Number: 63793
• UPC: 084663637933
• Product Type: Coolant Expansion Tank (Recirculating)
• Material: Fabricated Aluminum
• Filler Neck: Billet Aluminum (integral)
• Finish: Bare Aluminum (polishable / paintable / powder-coat ready)
• Sight Level: Included (easy-read)
• Included Cap: Moroso P/N 63324 (stock pressure range)
• Mounting: Direct bolt-in, factory location
• Mounting Hardware Included: No (uses factory hardware)
• Hose Modification Required: None (accepts factory clip-on hose)
• Vented: No
• Drain Valve: No
• Quantity: Sold individually
• Shipping Weight: 4.12 lb
• Made in USA (Guilford, Connecticut)

Included Components

• 1x Moroso 63793 Fabricated Aluminum Coolant Expansion Tank
• 1x Billet Aluminum Filler Neck (integral to tank)
• 1x Moroso Racing Radiator Cap P/N 63324 (stock pressure range)

Product Description

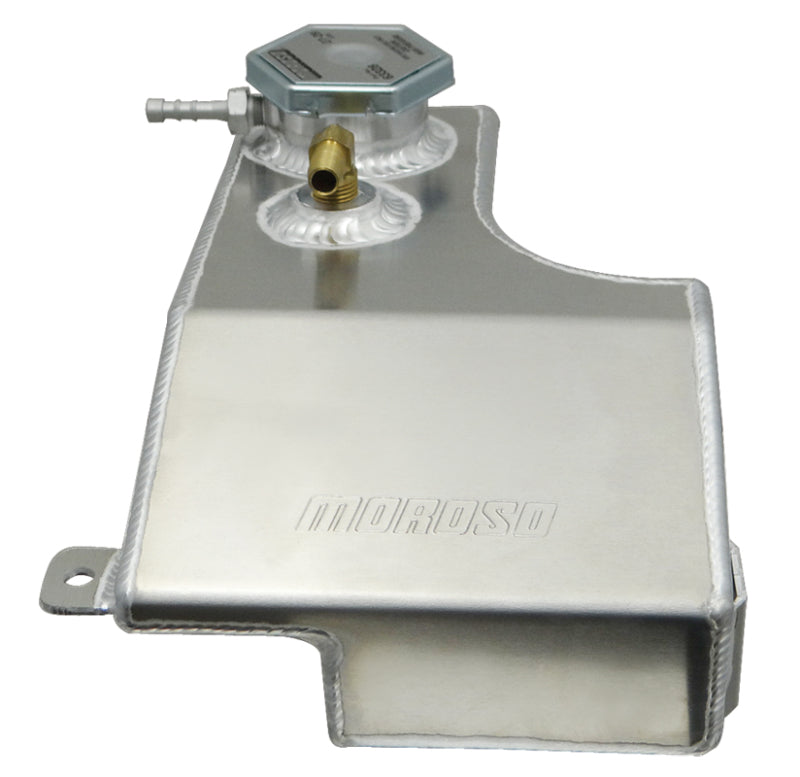

The Moroso 63793 is a fabricated aluminum coolant expansion tank engineered as a direct bolt-in replacement for the factory 2-piece plastic unit on the 2001-2006 BMW E46 M3. The OEM plastic expansion tank on the E46 M3 is one of the most commonly reported cooling system failure points on the platform - cracking, leaking, and failing without warning after years of heat cycling from the high-revving S54B32 inline-six. Given that the E46 M3 coolant system operates at elevated temperatures under performance driving conditions, and that a sudden tank failure can lead to rapid coolant loss and potential engine damage, replacing the plastic factory unit with the Moroso 63793 is a recognized reliability upgrade for both street and track examples of this vehicle.

The tank is fabricated from aluminum and 100% pressure tested before leaving Moroso's Connecticut facility - providing a guaranteed leak-free baseline that the OEM plastic design cannot match. The billet aluminum filler neck integrated into the tank body eliminates the plastic threaded neck failure mode entirely, and the included Moroso Racing Radiator Cap (P/N 63324) operates at the same stock pressure range as the factory BMW cap for a fully plug-and-play installation. An easy-read sight level built into the tank body allows coolant level checks at a glance without removing the cap - a practical convenience improvement over the factory design.

Installation requires no hose cutting - the Moroso 63793 accepts the factory clip-on coolant hose directly and mounts in the OEM location using the existing factory hardware. No drilling, fabrication, or system modifications are needed. The bare aluminum finish can be left as-is for a purposeful motorsport appearance, or treated with polishing, chrome, paint, or powder coat to suit any build presentation. Hand-fabricated at Moroso's facility in Guilford, Connecticut, the 63793 is the definitive long-term replacement for E46 M3 owners who want to permanently resolve their coolant expansion tank and avoid the recurring cost and risk of OEM plastic tank failure.
