Mishimoto MMRT-A2W-25N Universal Air-to-Water Intercooler Ice Tank Reservoir 2.5

Vehicle Fitment

• Universal -- Air-to-water intercooler ice tank (not vehicle-specific)

Fitment Notes

• Designed for air-to-water intercooler systems -- not a coolant overflow tank
• Internal mounts fit Rule 2000 or Rule 3700 bilge pumps, or use external pump
• -12 ORB inlet and outlet ports -- pair with Mishimoto -12 ORB to 3/4" hose barb or -12 ORB to -12AN fittings (sold separately)
• Compatible with Mishimoto universal air-to-water single pass and dual pass intercoolers
• Pump, intercooler, fittings, and plumbing NOT included
• Other sizes available: 1.5 gallon (MMRT-A2W-15N), 5 gallon (MMRT-A2W-50N)

Features

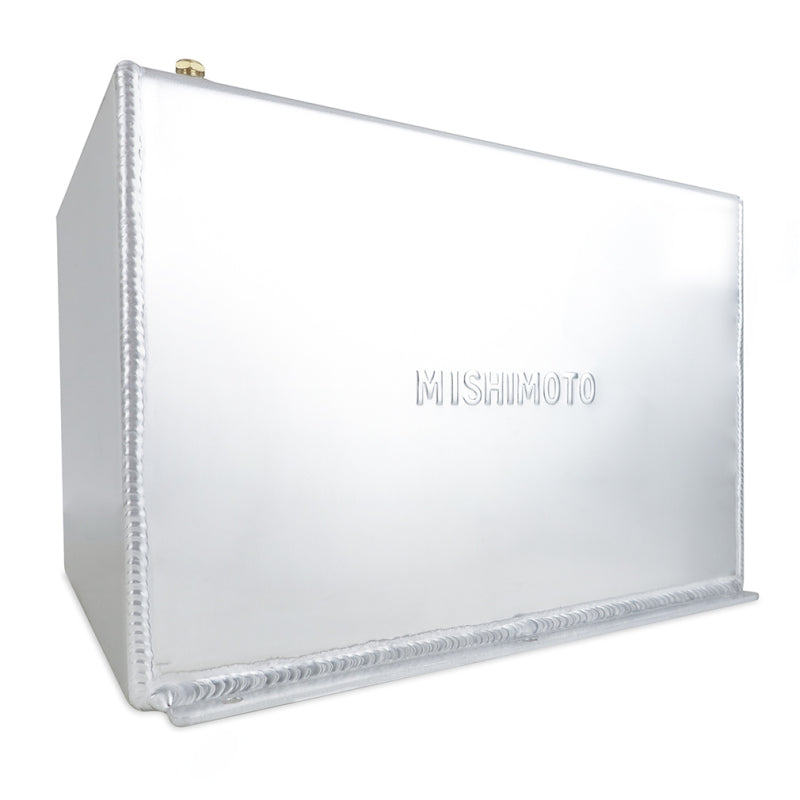

• Fully TIG-welded aluminum construction
• 2.5-gallon liquid capacity / 8 lbs ice capacity

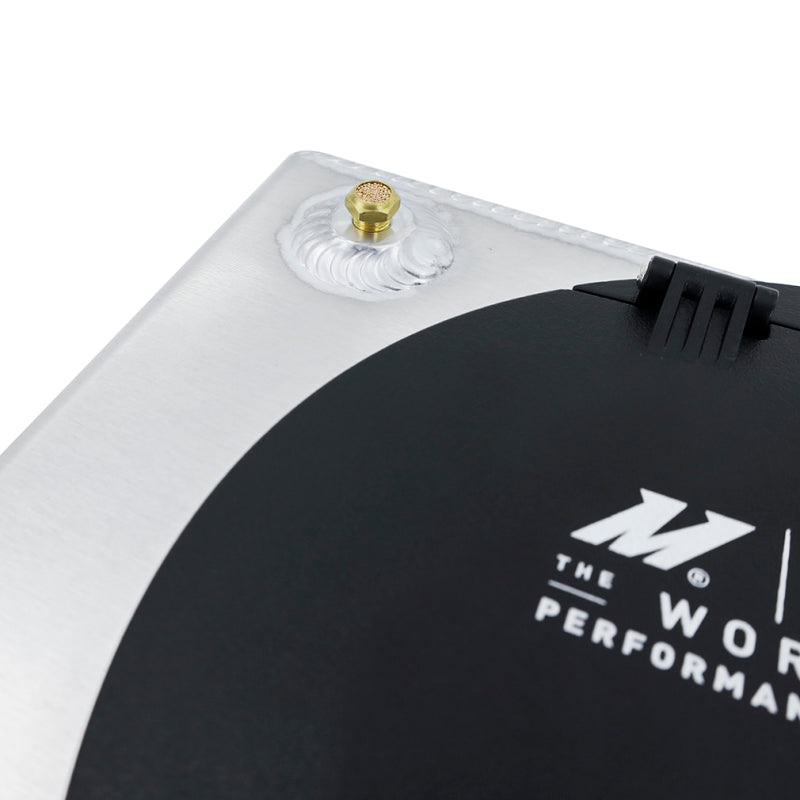

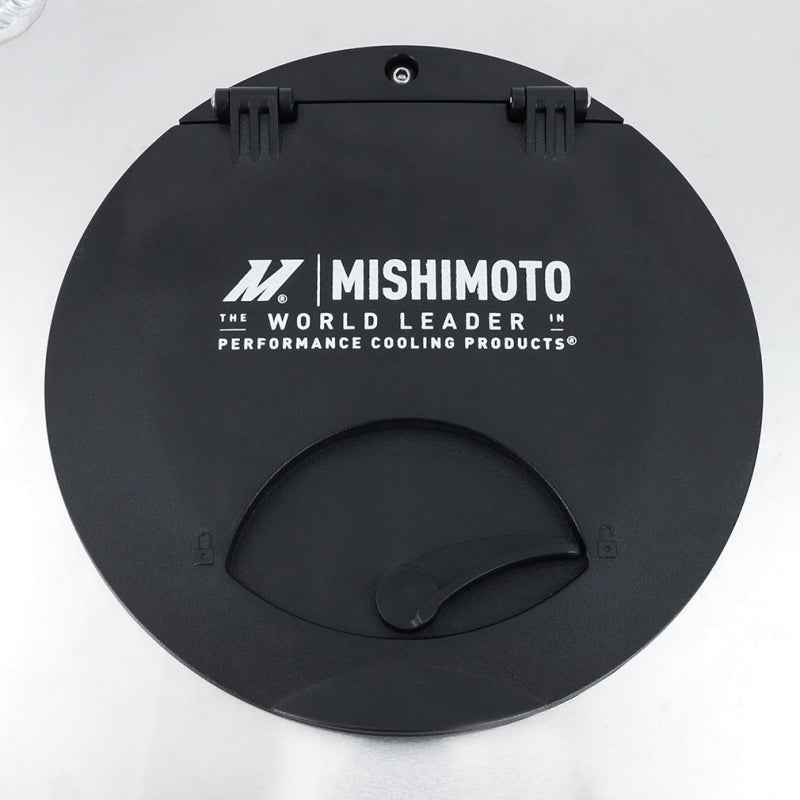

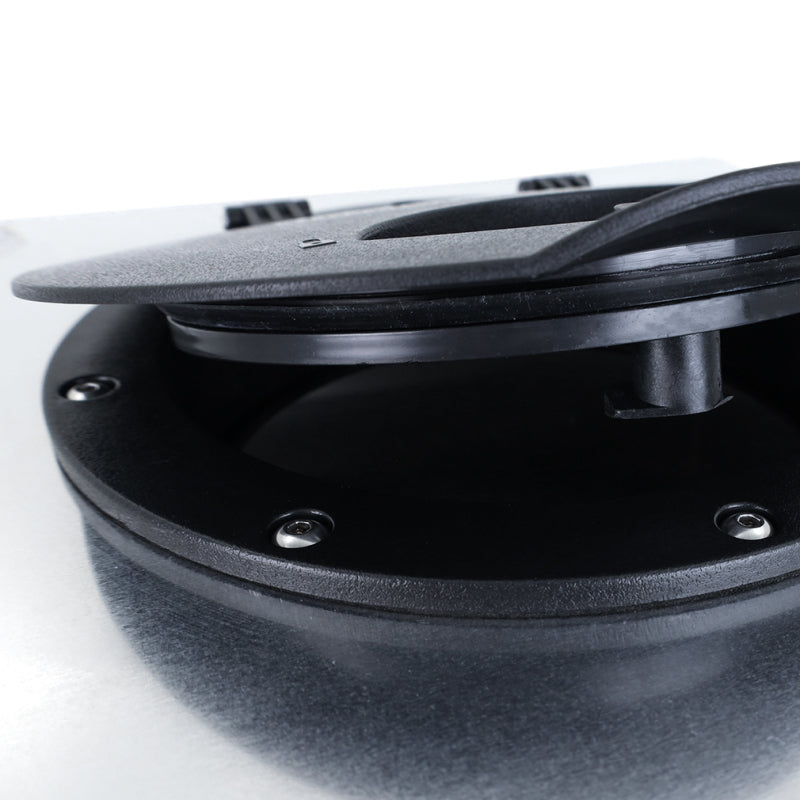

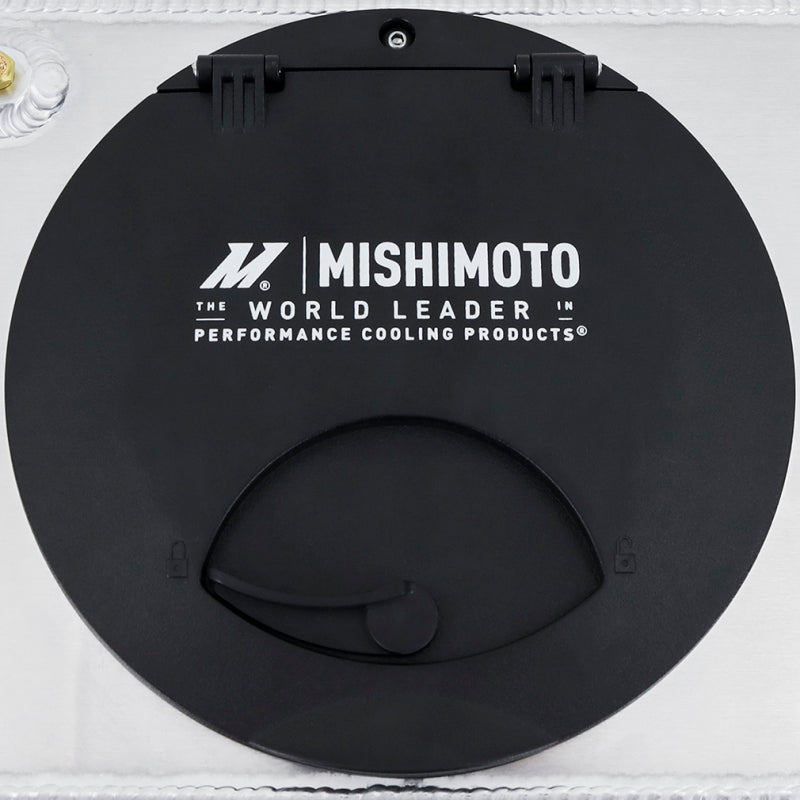

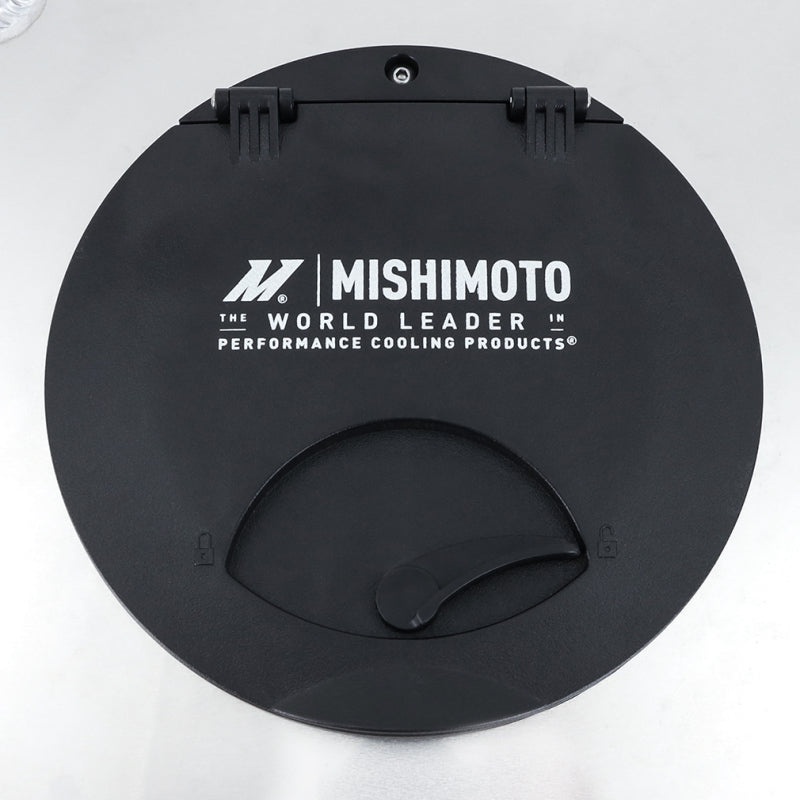

• Large flip-open lid with lock for easy filling and secure containment
• Integral mounting flanges for stable installation in any location
• Internal pump mounts for Rule 2000 or Rule 3700 bilge pumps

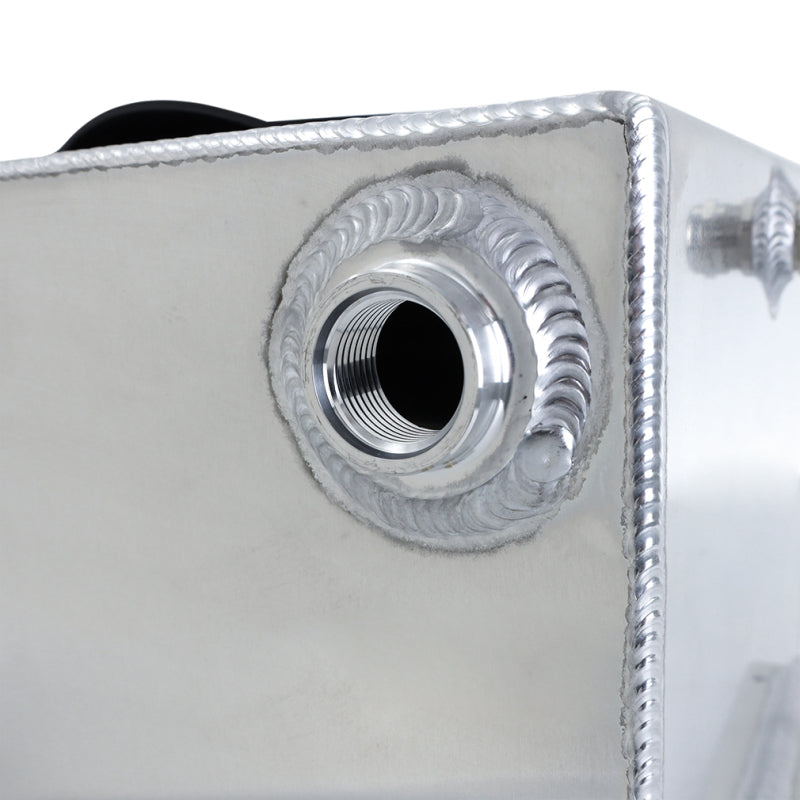

• -12 ORB inlet/outlet ports for tight, leak-free connections

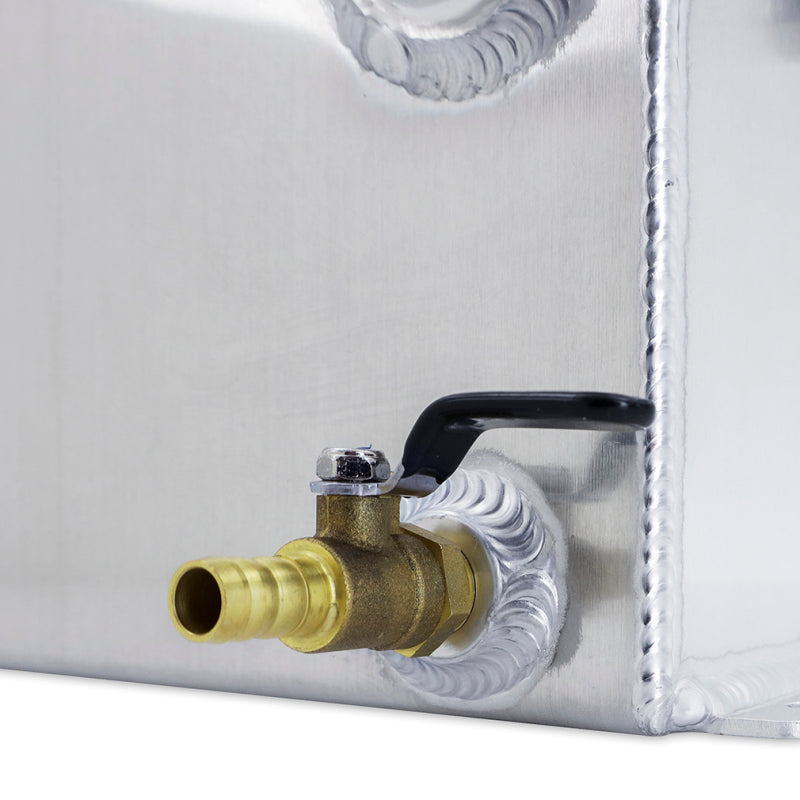

• 3/8" NPT drain plug for easy emptying

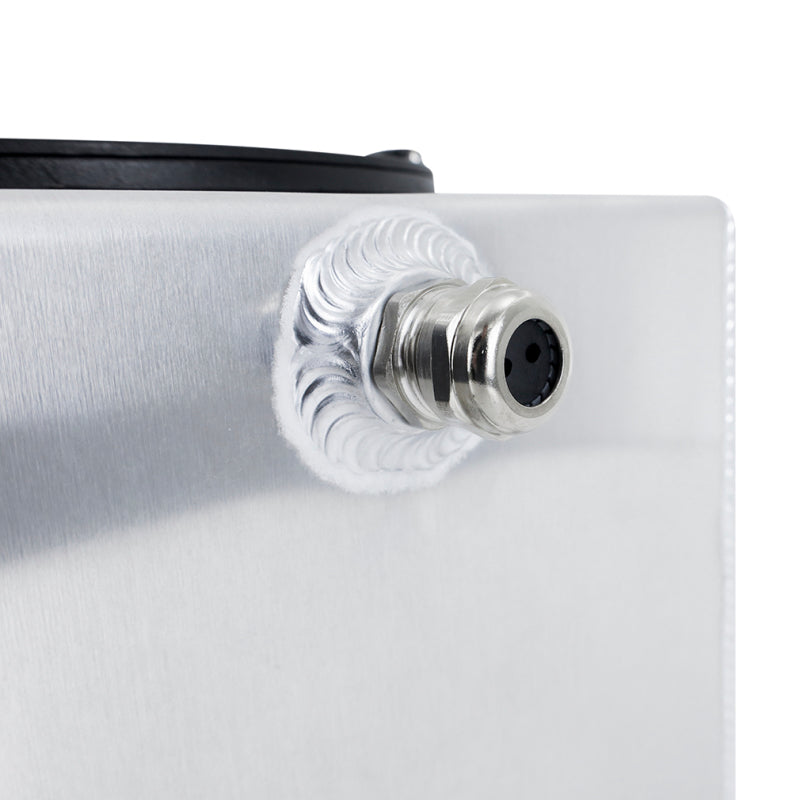

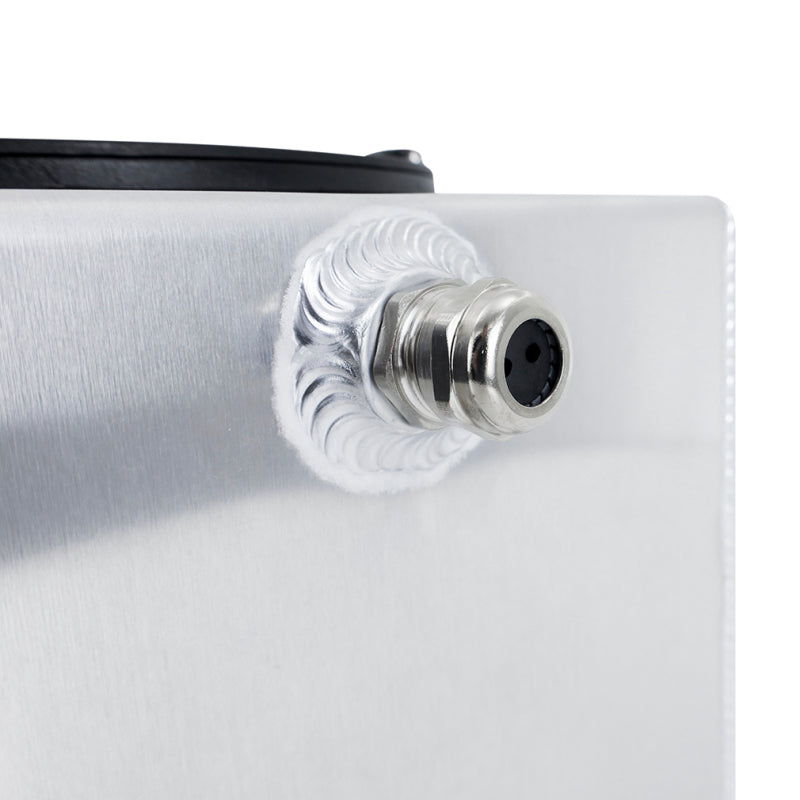

• 1/2" NPT port with electrical bulkhead for water-tight wiring to internal pump
• 1/2" NPT plug included if external pump is used instead
• Drastically reduces intake air temperatures and heat-soak
• Adds fluid capacity to air-to-water intercooler systems

Specifications

• Part Number: MMRT-A2W-25N
• Product Line: Mishimoto Air-to-Water Intercooler Ice Tanks
• Capacity: 2.5 gallons liquid / 8 lbs ice
• Material: TIG-welded aluminum
• Finish: Natural (raw aluminum)
• Inlet/Outlet Ports: -12 ORB
• Drain Plug: 3/8" NPT
• Pump Port: 1/2" NPT
• Tank Length: 8.70"
• Tank Height: 7.32"
• Tank Width: 5.28" (13.4 cm)
• UPC: 840197712153

Included Components

• 1x Mishimoto 2.5-gallon air-to-water intercooler ice tank
• 1x 1/2" electrical bulkhead
• 1x 1/2" NPT plug
• 1x 3/8" NPT drain plug
• Lid installation hardware

Product Description

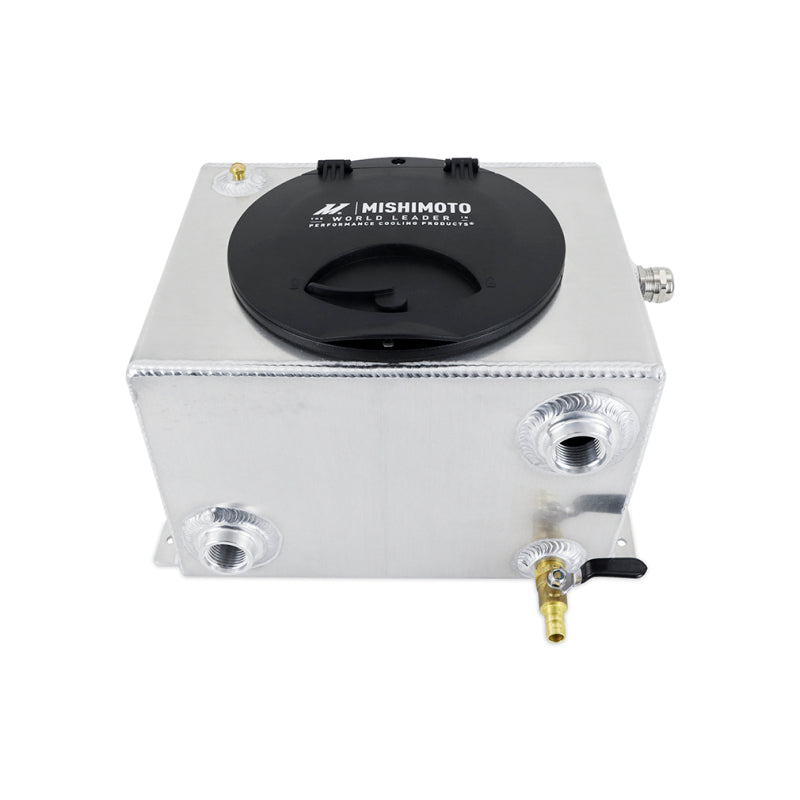

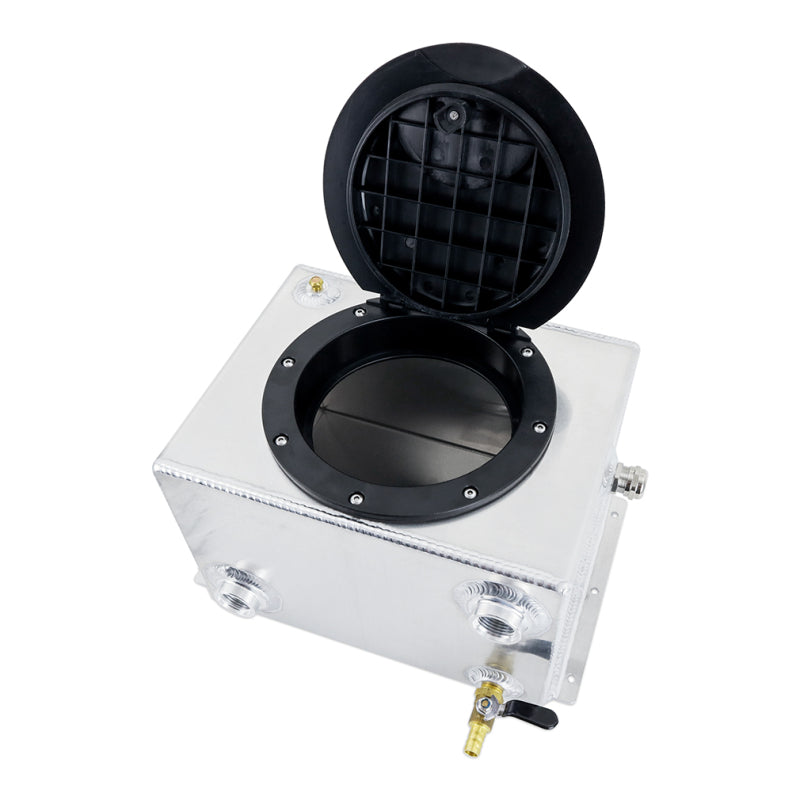

The Mishimoto MMRT-A2W-25N is a 2.5-gallon air-to-water intercooler ice tank constructed from fully TIG-welded aluminum with a natural finish. Designed to supplement air-to-water intercooler systems, this tank holds up to 2.5 gallons of liquid or 8 pounds of ice, drastically reducing intake air temperatures and combating heat-soak during repeated hard pulls at the drag strip, drift events, or spirited street driving. The large flip-open lid with a locking mechanism makes filling with ice or water quick and easy, while the integral mounting flanges allow secure installation in virtually any location.

The tank features -12 ORB inlet and outlet ports for leak-free connections, a 3/8" NPT drain plug for easy emptying, and a 1/2" NPT port with an included electrical bulkhead for routing wiring to an internally mounted bilge pump. Internal mounts accept a Rule 2000 or Rule 3700 bilge pump for self-contained circulation, or the 1/2" NPT plug is included for use with an external pump instead. Pair with Mishimoto's universal air-to-water single pass or dual pass intercoolers and -12 ORB fittings (sold separately) to build a complete air-to-water system. Also available in 1.5-gallon (MMRT-A2W-15N) and 5-gallon (MMRT-A2W-50N) configurations. Mishimoto lifetime warranty.
